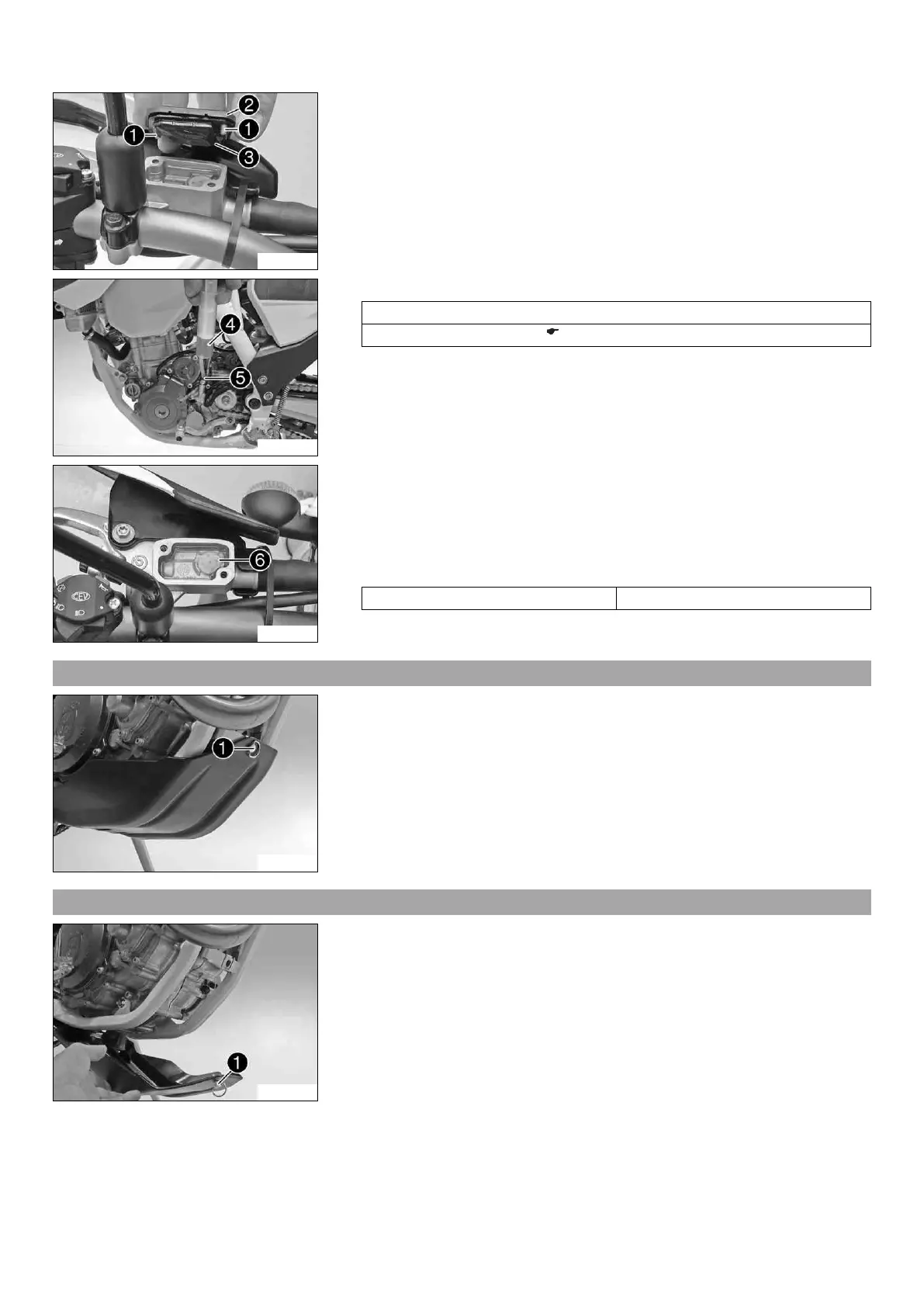

12 SERVICE WORK ON THE CHASSIS 64
B01538-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws
1
.
– Remove cover
2
with membrane
3
.
B01800-10
– Fill bleeding syringe
4
with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 108)
– On the clutch slave cylinder, remove bleeder screw
5
and mount bleeding
syringe
4
.
B01540-10
– Inject the liquid into the system until it escapes from openings
6
of the master cylin-
der without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten the bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level below top edge of container 4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
12.50 Removing the engine guard
B01799-10
– Turn quick release
1
counterclockwise until it disengages. Remove the engine
guard.
12.51 Installing the engine guard
B01798-10
– Attach the engine guard on the frame at the rear and swing up at the front.
– Turn quick release
1
clockwise all the way.
