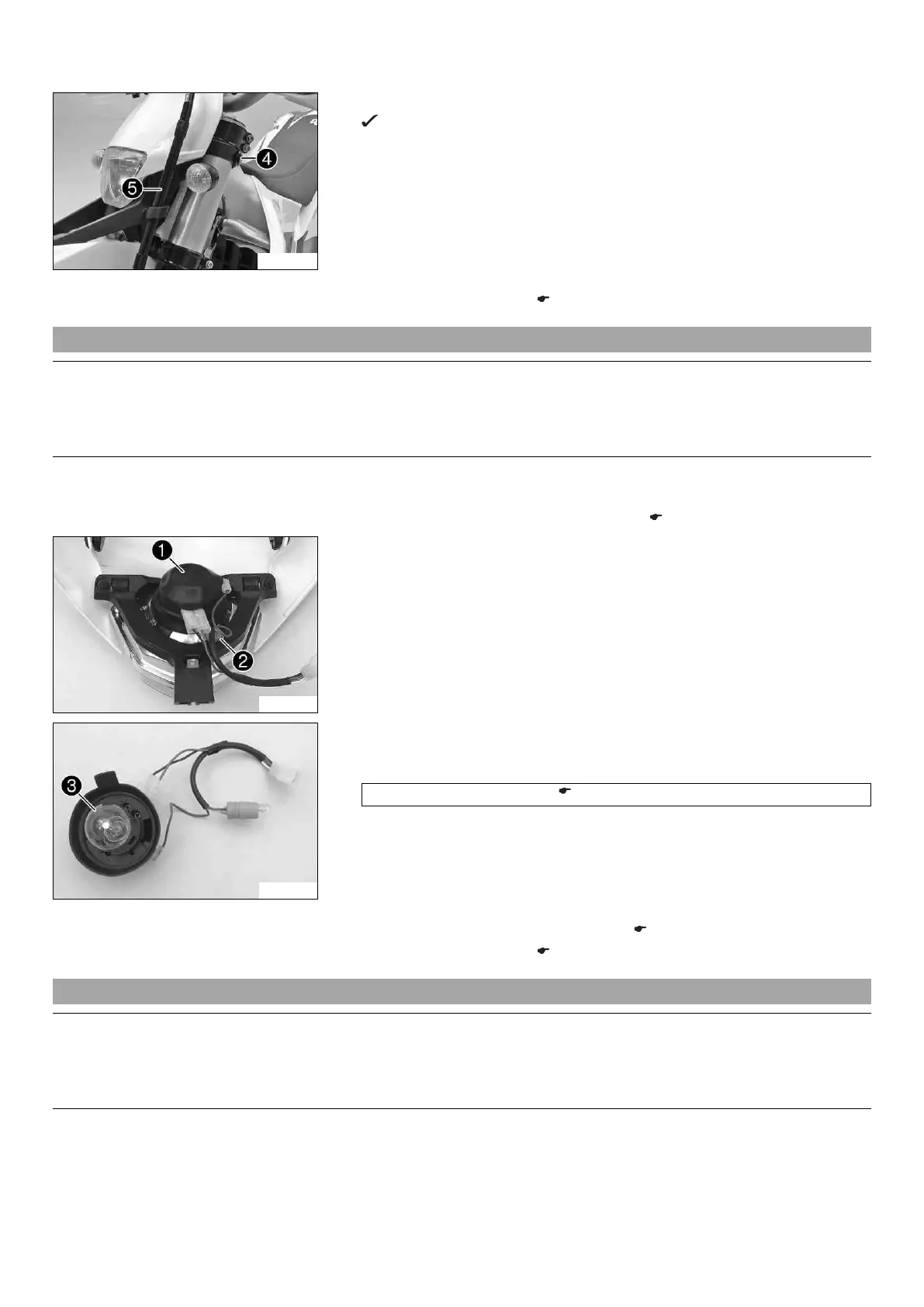

15 ELECTRICAL SYSTEM 83
B01784-10
– Position rubber bands
4
around the fork legs and close them.
The wiring harness and brake line
5
are routed in front of the headlight mask.
Finishing work
– Check the headlight setting. ( p. 84)
15.8 Changing the headlight bulb
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the headlight mask with the headlight. ( p. 82)
L00269-10
Main work
– Turn protection cap
1
with the bulb socket beneath it all the way counterclockwise
and lift it off.
– Pull bulb socket
2
of the parking light out of the reflector.
L00270-10
– Press headlight bulb
3
lightly into the bulb socket, turn it all the way counterclock-
wise, and pull it out.
– Insert the new headlight bulb.
Headlight (S2 / socket BA20d) ( p. 105)
– Insert the protection cap with the bulb socket into the reflector and turn it all the way
clockwise.
– Insert the bulb socket of the parking light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 82)
– Check the headlight setting. ( p. 84)
15.9 Changing the turn signal bulb (FE 350 EU, FE 350 AUS)
Note
Damage to reflector Reduced brightness.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
