15 ELECTRICAL SYSTEM 79

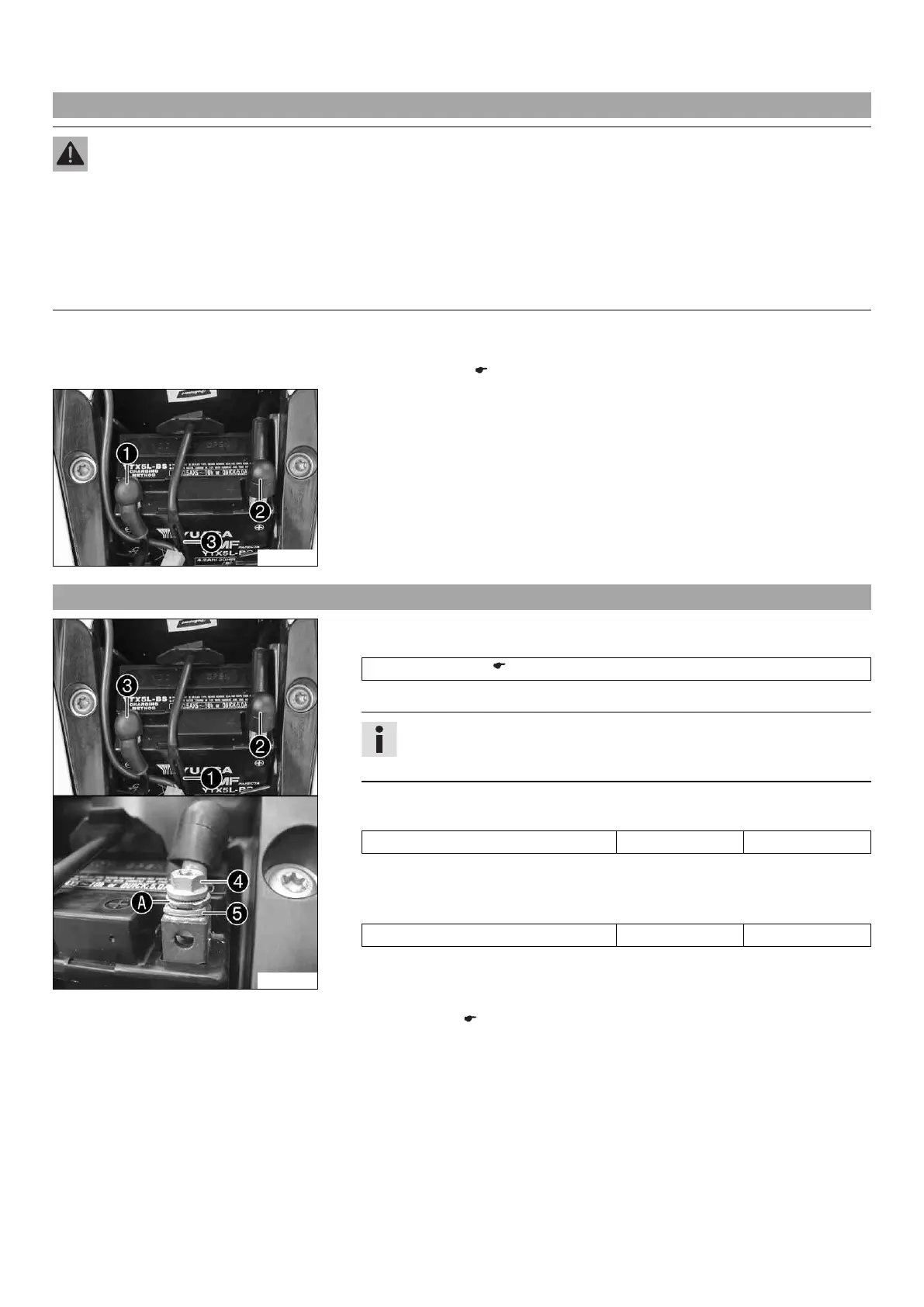

15.1 Removing the battery x
Warning
Risk of injury Battery acid and battery gases cause serious chemical burns.
– Keep batteries out of the reach of children.
– Wear suitable protective clothing and goggles.
– Avoid contact with battery acid and battery gases.
– Keep sparks and open flames away from the battery. Only charge in well-ventilated rooms.
– In the event of skin contact, rinse with large amounts of water. If battery acid gets in the eyes, rinse with water for at least 15
minutes and contact a physician.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 49)
B01788-10
Main work
– Pull back the negative terminal cover
1
and disconnect the negative cable from the
battery.
– Pull back the positive terminal cover
2
and disconnect the positive cable from the
battery.
– Detach rubber band
3
at the bottom.
– Lift the battery up and out.
15.2 Installing the battery x
B01789-10
Main work
– Insert battery into the battery compartment with the terminals facing to the front.
Battery (YTX5L-BS) ( p. 105)
– Reconnect rubber band
1
.
Info
Contact disk
A
must be mounted between screw
4
and cable socket
5
with the claws facing down.
– Position the positive cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
– Slide positive terminal cover
2
over the positive terminal.
– Position the negative cable and mount and tighten the screw.
Guideline
Screw, battery terminal M5 2.5 Nm (1.84 lbf ft)
– Slide negative terminal cover
3
over the negative terminal.
Finishing work
– Mount the seat. ( p. 49)
