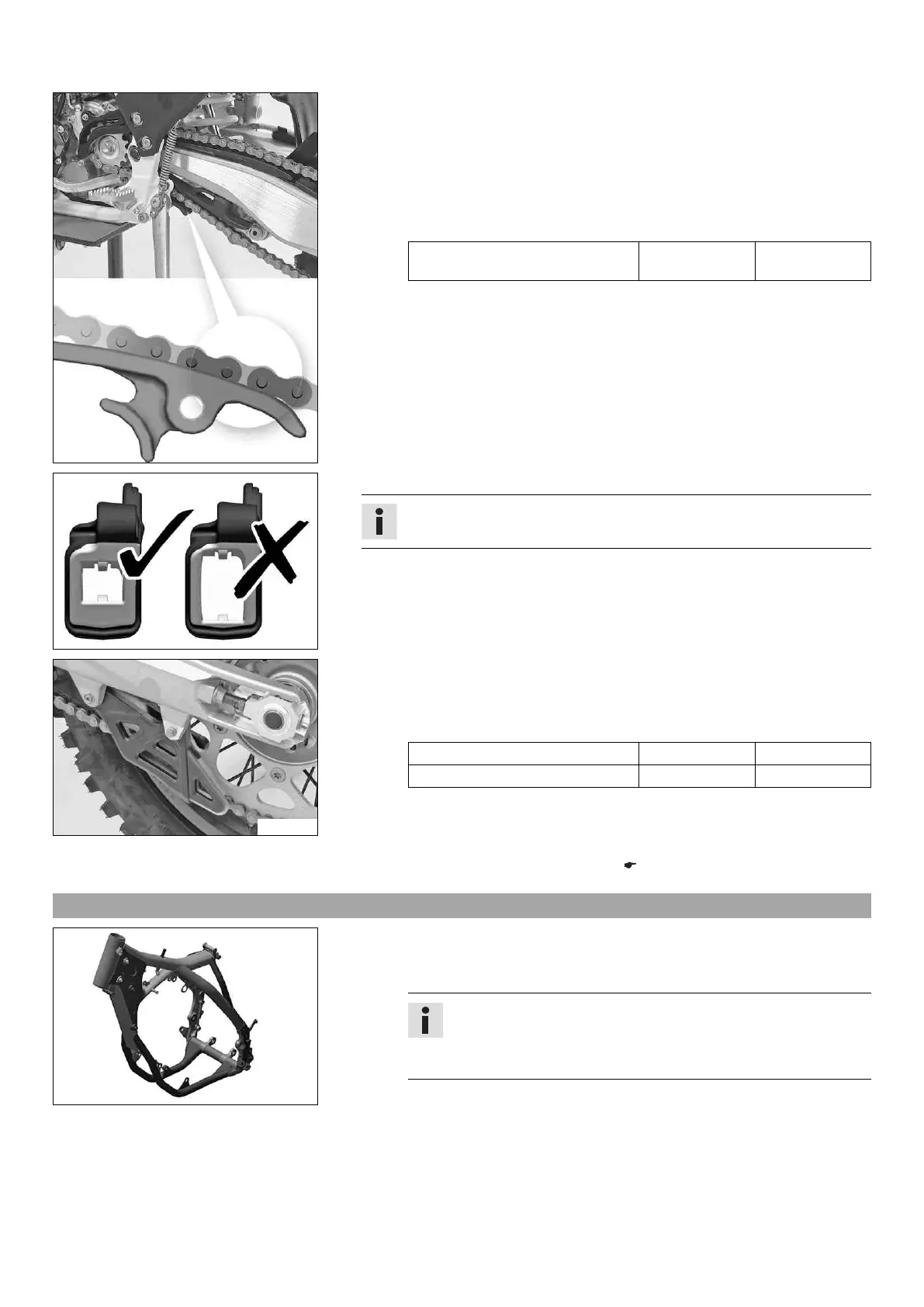

12 SERVICE WORK ON THE CHASSIS 61
C00601-01
– Check the chain sliding piece for wear.
» If the bottom edge of the chain bolt is in line with or below the chain sliding piece:
– Change the chain sliding piece. x
– Check that the chain sliding piece is firmly seated.
» If the chain sliding piece is loose:
– Tighten the chain sliding piece.
Guideline
Screw, chain sliding piece M8 15 Nm
(11.1 lbf ft)
400985-01
– Check the chain guide for wear.
Info
Wear is visible on the front of the chain guide.
» If the light part of the chain guide is worn:
– Change the chain guide. x
B01634-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the chain guide.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 41)
12.42 Checking the frame x
401799-01
– Check the frame for cracks and deformation.
» If the frame exhibits cracks or deformation due to a mechanical impact:
– Change the frame. x
Info
A frame that has been damaged due to a mechanical impact must
always be changed. Repair of the frame is not authorized by Husq-
varna.
