ELECTRICAL SYSTEM 14
103
Guideline
Fuse 1 - 10 A - EFI control unit, oil pump, electronic fuel
injection, diagnostics connector
Fuse 2 - not assigned
Fuse 3 - not assigned
Fuse 4 - 5 A - fuel pump
Fuses SPARE - 10 A/5 A - spare fuse
Info
A faulty fuse has a burned-out fuse wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical
system.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert the spare fuse with the correct rating.
Fuse (75011088010) ( p. 135)
Fuse (75011088005) ( p. 135)
Tip
Put a spare fuse in the fuse box so that it is available if
needed.
– Check the function of the electrical power consumer.
–
Close the fuse box cover
1
.
Finishing work
– Mount the seat. ( p. 63)
– Install the air filter box cover. ( p. 63)

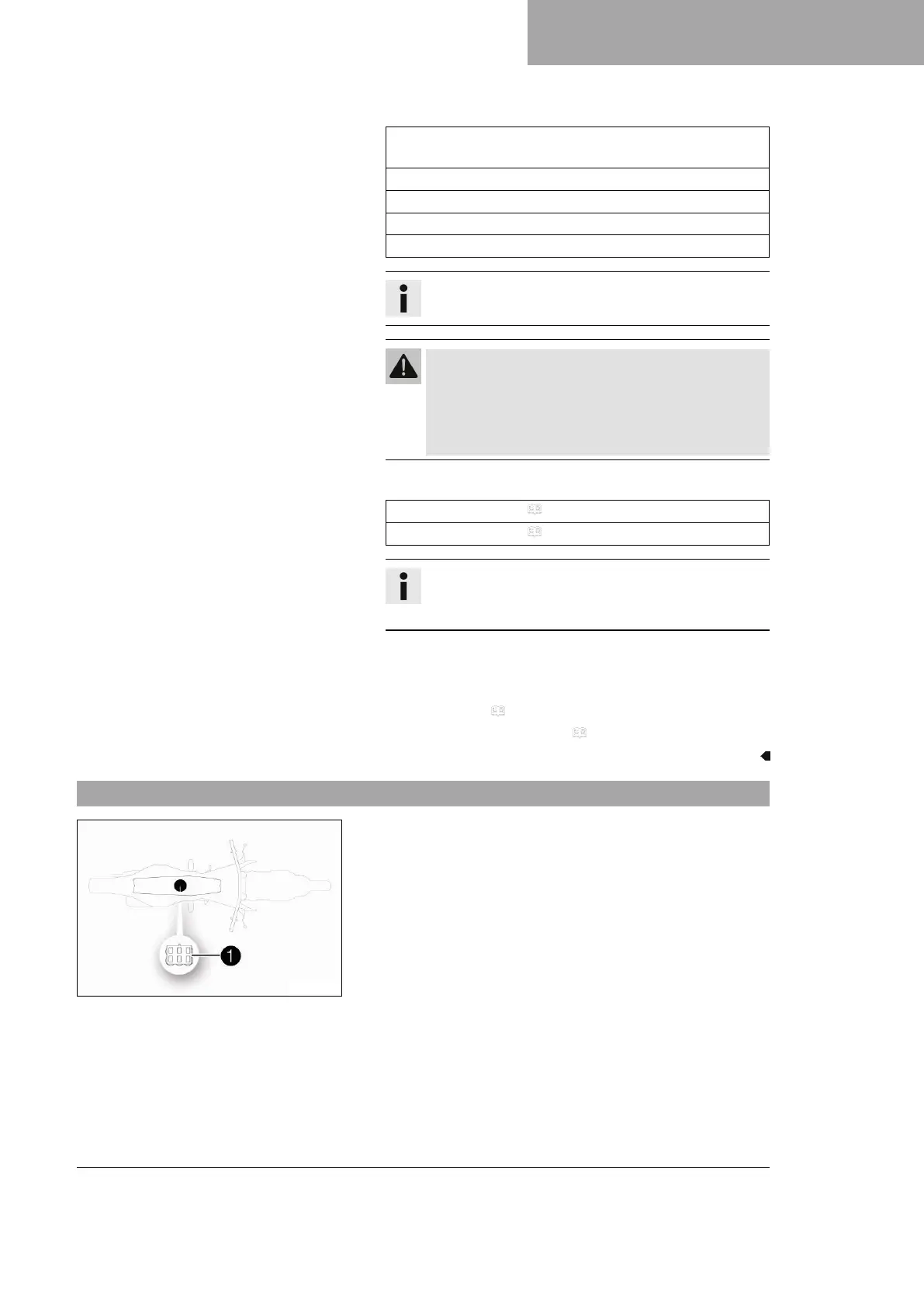

14.6 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat below the
EFI control unit.
