TUNING THE CHASSIS 10
41
H01522-10
–

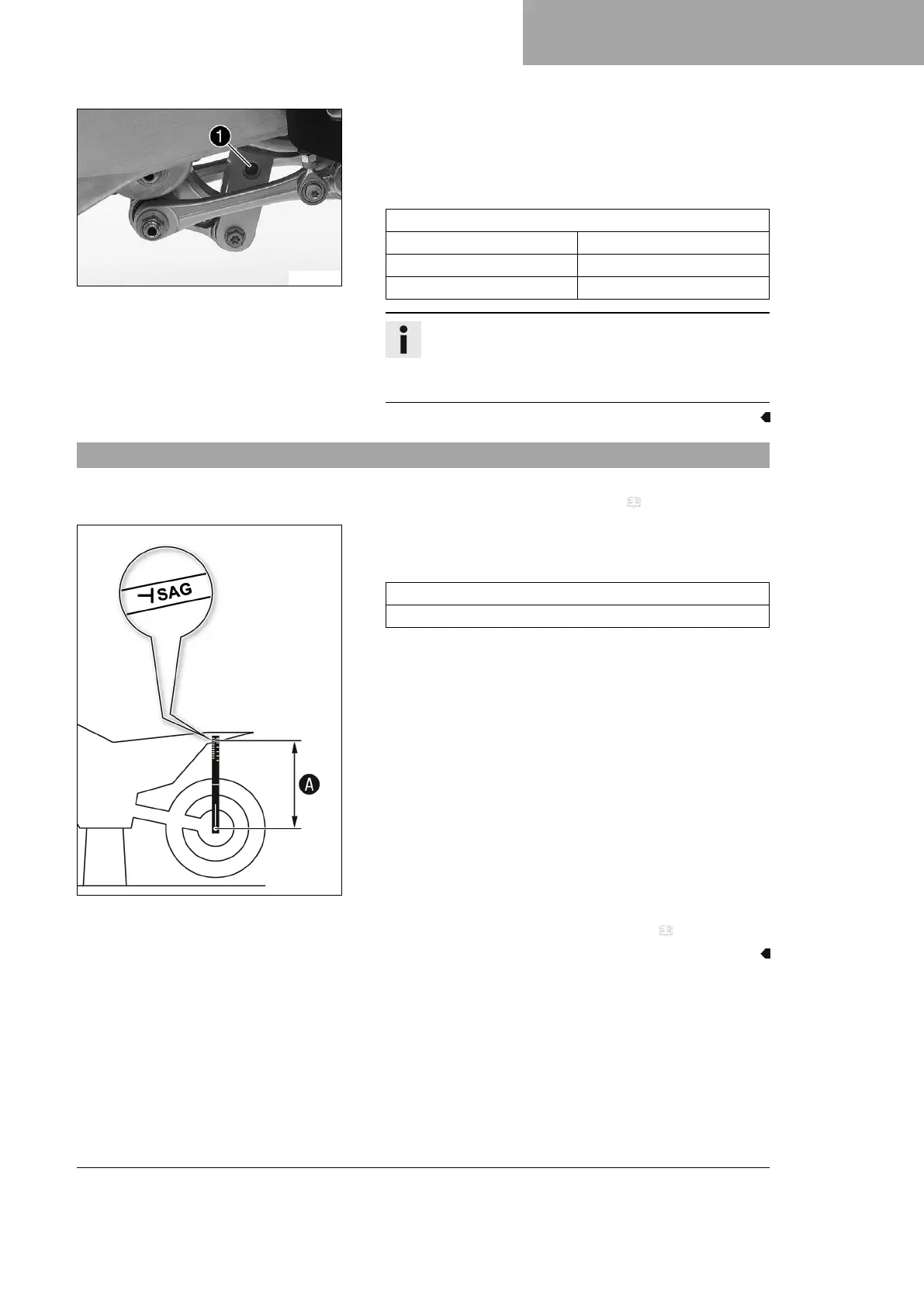

Turn adjusting screw
1
clockwise up to the last perceptible
click.
– Turn counterclockwise by the number of clicks correspond-
ing to the shock absorber type.
Guideline
Rebound damping
Comfort 17 clicks
Standard 15 clicks
Sport 13 clicks
Info
Turn clockwise to increase the damping; turn
counterclockwise to reduce damping when the shock
absorber rebounds.
10.7 Measuring the rear wheel dimension unloaded
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
402415-10
Main work
– Position the sag gage in the rear axle and measure the
distance to marking SAG on the rear fender.
Sag gauge (00029090500)
Pin, sag scale (00029990010)
–
Note down the value as dimension
A
.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 49)
