SERVICE WORK ON THE CHASSIS 11
67

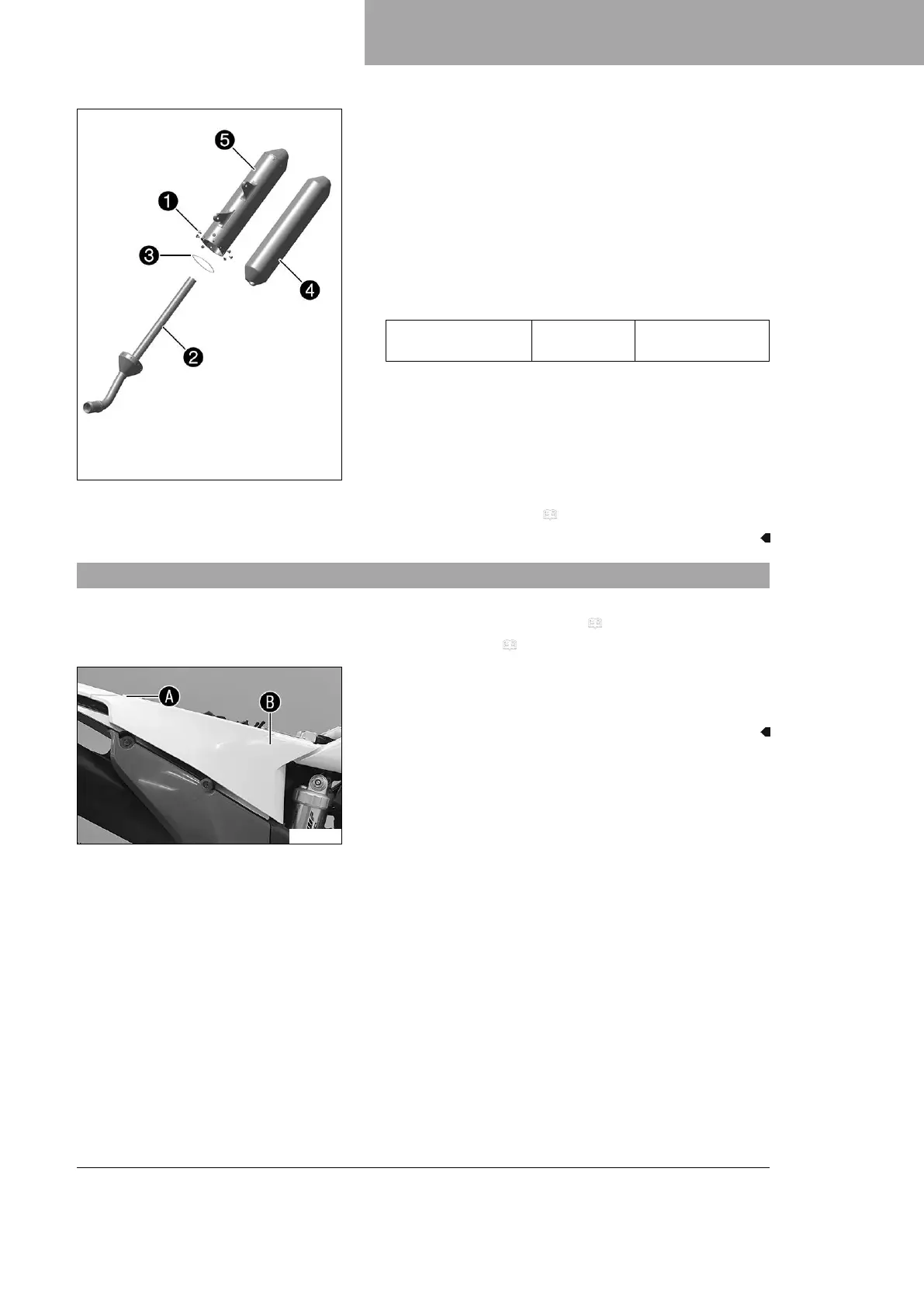

V01636-10
Main work
–
Remove screws
1
. Pull out inner tube
2
with O-ring
3
.
–
Pull glass fiber yarn filling
4
from the inner tube.
– Clean the parts that need to be reinstalled and check for
damage.
–
Mount new glass fiber yarn filling
4
on the inner tube.
–
Push outer tube
5
over the inner tube with the new glass
fiber yarn filling and the O-ring.
–
Mount and tighten all screws
1
.
Guideline
Screws on main
silencer
M5 7 Nm (5.2 lbf ft)
Finishing work
– Install the main silencer. ( p. 66)
11.30 Removing the right side cover
Preparatory work
– Remove the air filter box cover. ( p. 63)
– Remove the seat. ( p. 62)
V01602-10
Main work
–
Detach side cover in area
A
, pull off sideways in area
B
and take off toward the rear.
