11 SERVICE WORK ON THE CHASSIS
74

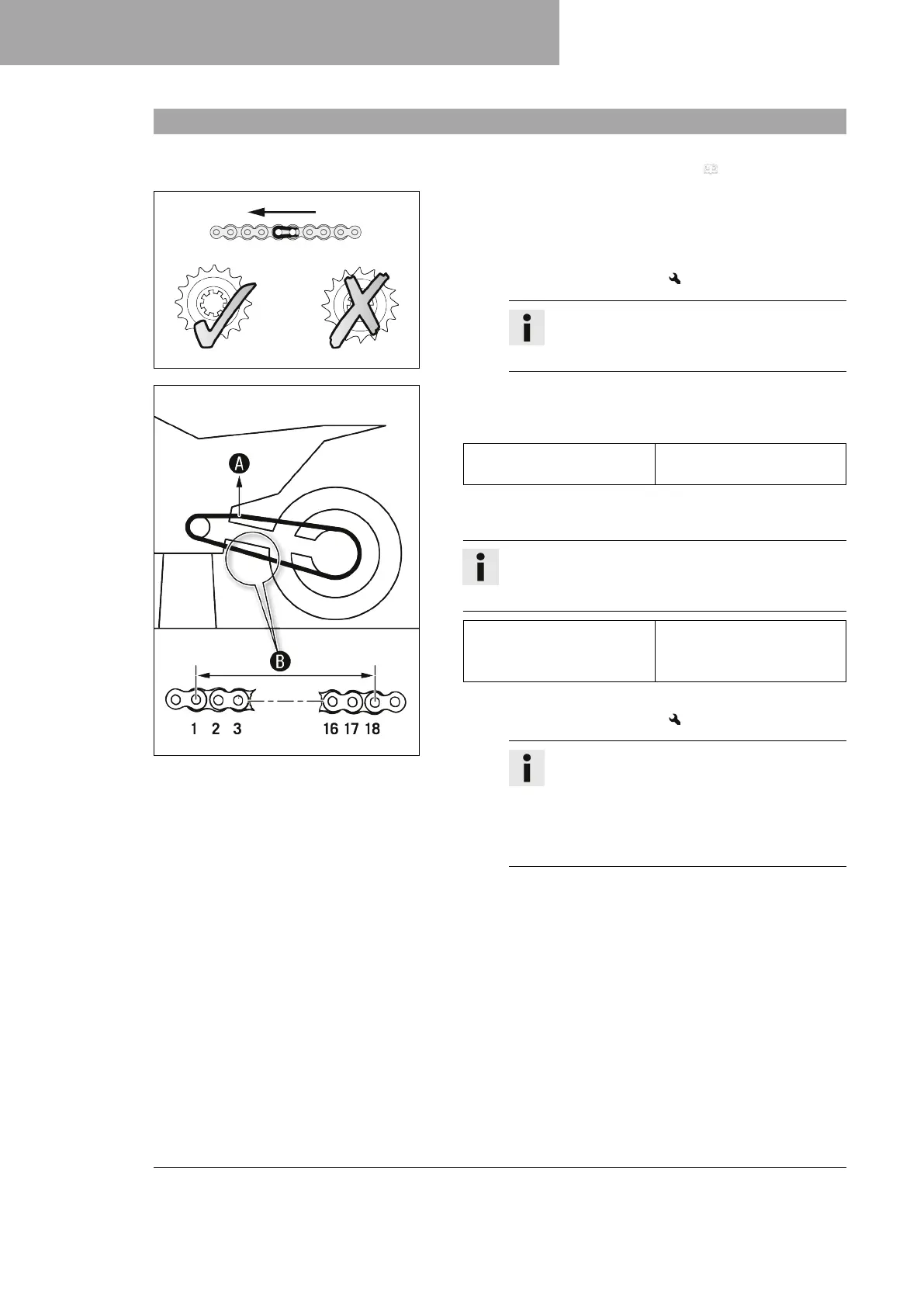

11.38 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
400227-01
Main work
– Shift the transmission into neutral.
– Check the chain, rear sprocket and engine sprocket for wear.
» If the chain, rear sprocket or engine sprocket is worn:
– Change the drivetrain kit.
Info
The engine sprocket, rear sprocket and chain
should always be replaced together.
400987-10
– Pull on the top section of the chain with the specified
weight
A
.
Guideline
Weight, chain wear mea-
surement
10 … 15 kg (22 … 33 lb.)
–
Measure distance
B
of 18 chain rollers in the lower chain
section.
Info
Chain wear is not always even, so you should repeat
this measurement at different chain positions.
Maximum distance
B
from
18 chain rollers at the
longest chain section
272 mm (10.71 in)
»
If distance
B
is greater than the specified measurement:
– Change the drivetrain kit.
Info
When a new chain is mounted, the rear
sprocket and the engine sprocket should also
be changed.
New chains wear out faster on an old, worn
rear sprocket or engine sprocket.
