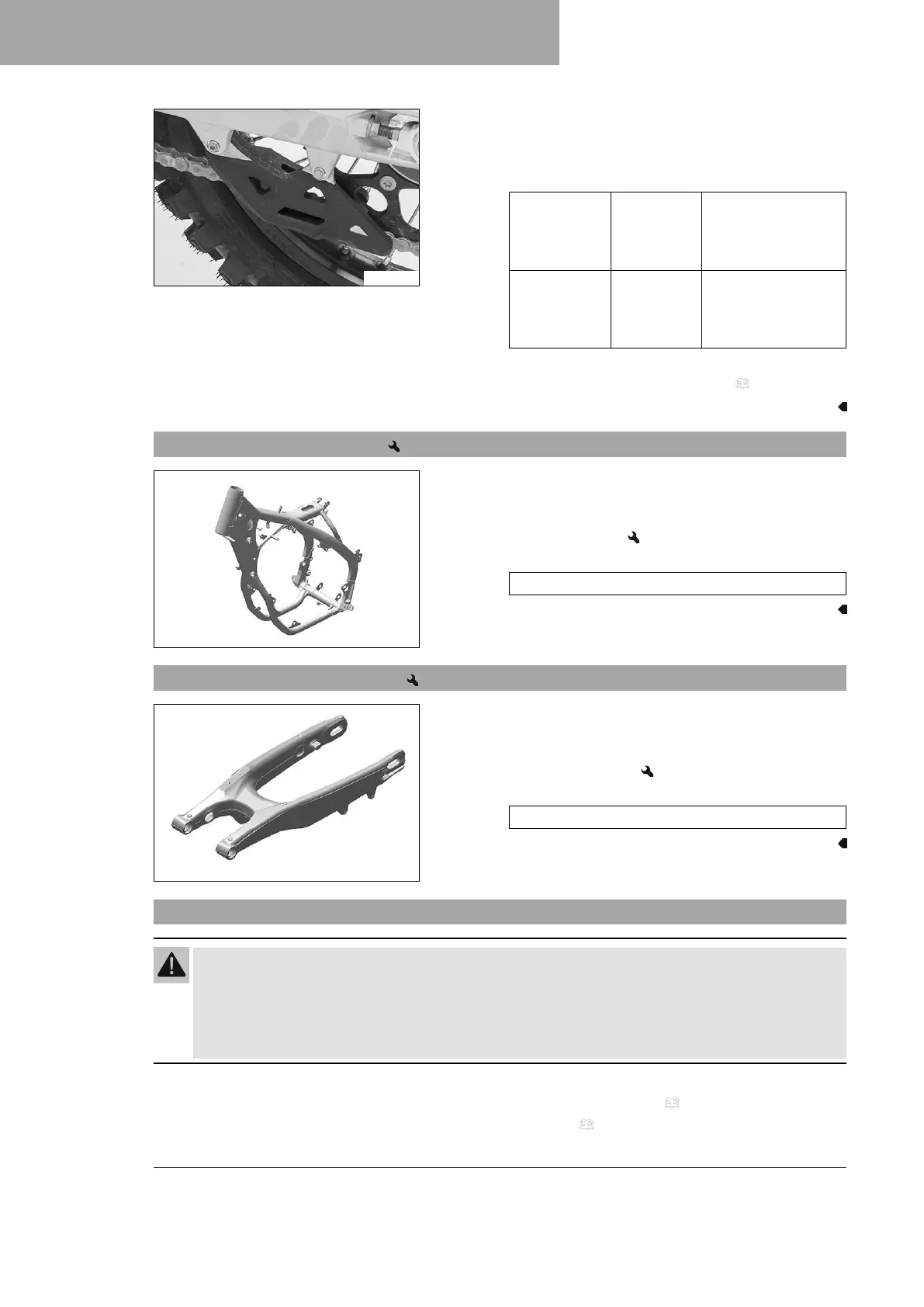

11 SERVICE WORK ON THE CHASSIS
76
M01368-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the fitting on the chain guide.
Guideline
Screw, chain
guide on link
fork at the
rear
M6x19 10 Nm (7.4 lbf ft)
Loctite
®
243™
Screw, chain
guide on link
fork at the
front
M6x45 10 Nm (7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 49)
11.39 Checking the frame
K01114-01
– Check the frame for damage, cracks, and deformation.
» If the frame shows signs of damage, cracks, or deforma-
tion:
– Change the frame.
Guideline
Repairs on the frame are not permitted.
11.40 Checking the link fork
K01115-01
– Check the link fork for damage, cracks, and deformation.
» If the link fork shows signs of damage, cracks, or defor-
mation:
– Change the link fork.
Guideline
Repairs on the link fork are not permitted.
11.41 Checking the throttle cable routing
Warning
Danger of accidents The throttle cable may slip out of the guide if routed incorrectly.
The throttle slide will then no longer be closed and the speed can no longer be controlled.
– Make sure that the throttle cable routing and the play in throttle cable complies with the specifica-
tion.
Preparatory work
– Remove the air filter box cover. ( p. 63)
– Remove the seat. ( p. 62)
