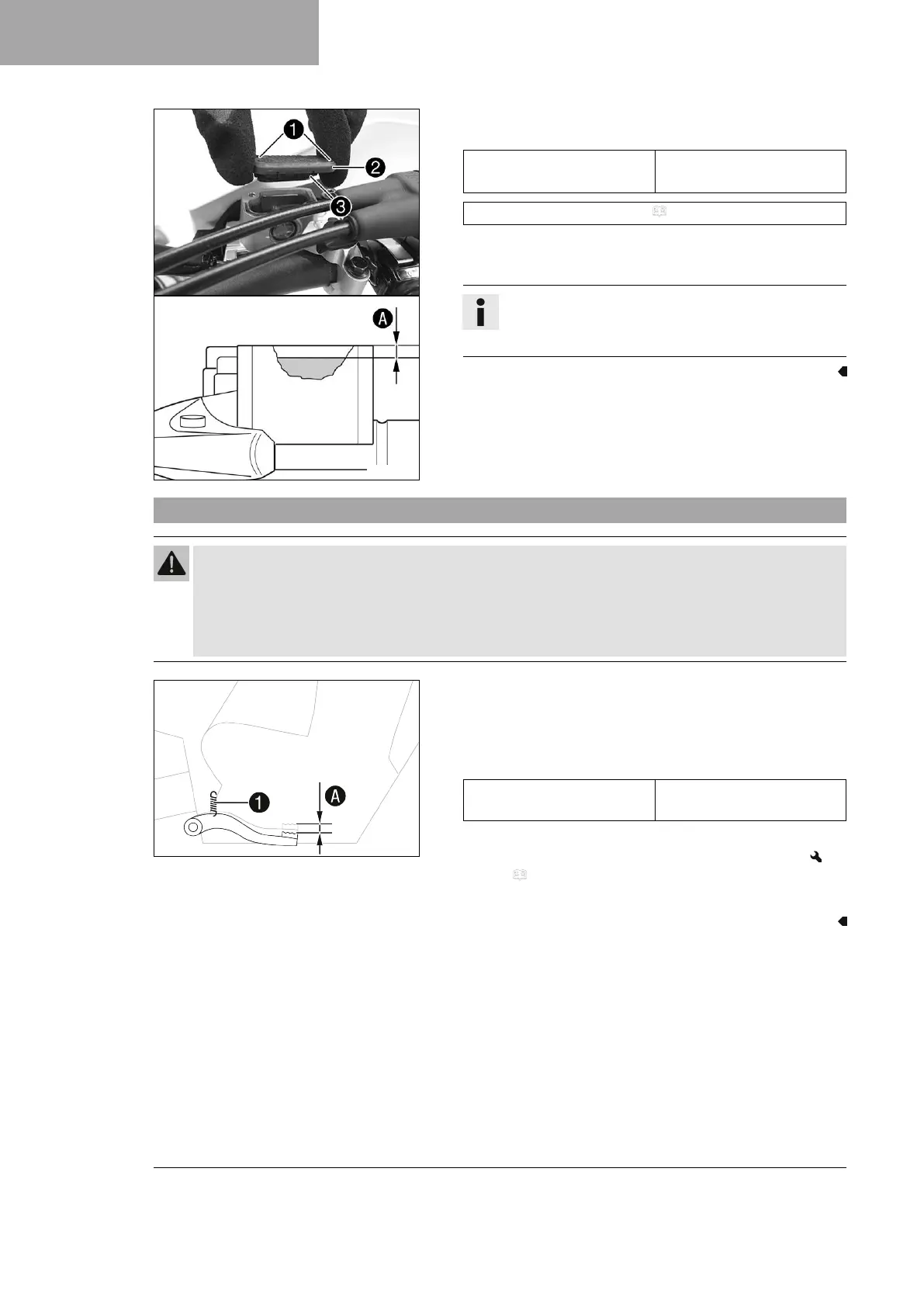

12 BRAKE SYSTEM
86
V02152-10
–
Add brake fluid up to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 139)
–
Position cover
2
with membrane
3
.
–
Mount and tighten screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
12.7 Checking the free travel of foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
402026-10
–
Disconnect spring
1
.
– Move the foot brake lever back and forth between the end
stop and the contact to the foot brake cylinder piston and
check free travel
A
.
Guideline
Free travel at foot brake
lever
3 … 5 mm (0.12 … 0.2 in)
» If the free travel does not meet specifications:
– Adjust the basic position of the foot brake lever.
( p. 87)
–
Reconnect spring
1
.
