SERVICE WORK ON THE CHASSIS 11
61

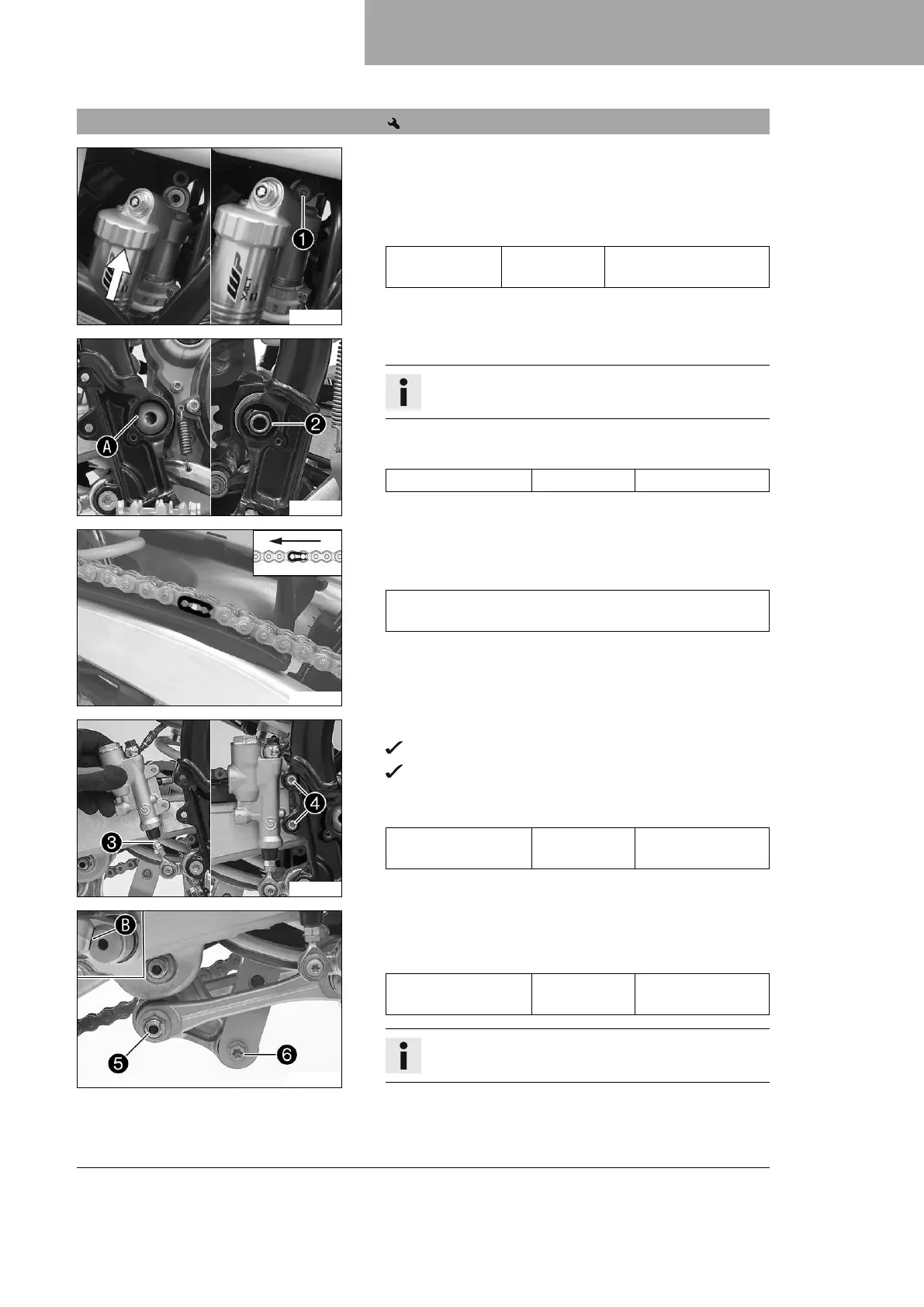

11.19 Installing the shock absorber
V01580-10
Main work
– Carefully position the shock absorber into the vehicle from
the bottom.
–
Mount and tighten screw
1
.
Guideline
Screw, top
shock absorber
M10 60 Nm (44.3 lbf ft)
Loctite
®
2701™
V01578-10
– Position the link fork and mount the swingarm pivot.
Info
Pay attention to flat area
A
.
–
Mount and tighten nut
2
.
Guideline
Nut, fork pivot M16x1.5 100 Nm (73.8 lbf ft)
K00949-10
– Mount the chain.
– Connect the chain with the connecting link.
Guideline
The closed side of the chain joint lock must face in the
direction of travel.
K01098-11
– Position the foot brake cylinder.
Push rod
3
engages in the foot brake cylinder.
The dust boot is correctly positioned.
–
Mount and tighten screws
4
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
H01546-10
– Position the angle lever and linkage lever.
–
Mount and tighten fitting
5
.
Guideline
Nut, linkage lever on
angle lever
M14x1.5 60 Nm (44.3 lbf ft)
Info
Pay attention to flat area
B
.
–
Mount and tighten screw
6
.
