11 SERVICE WORK ON THE CHASSIS

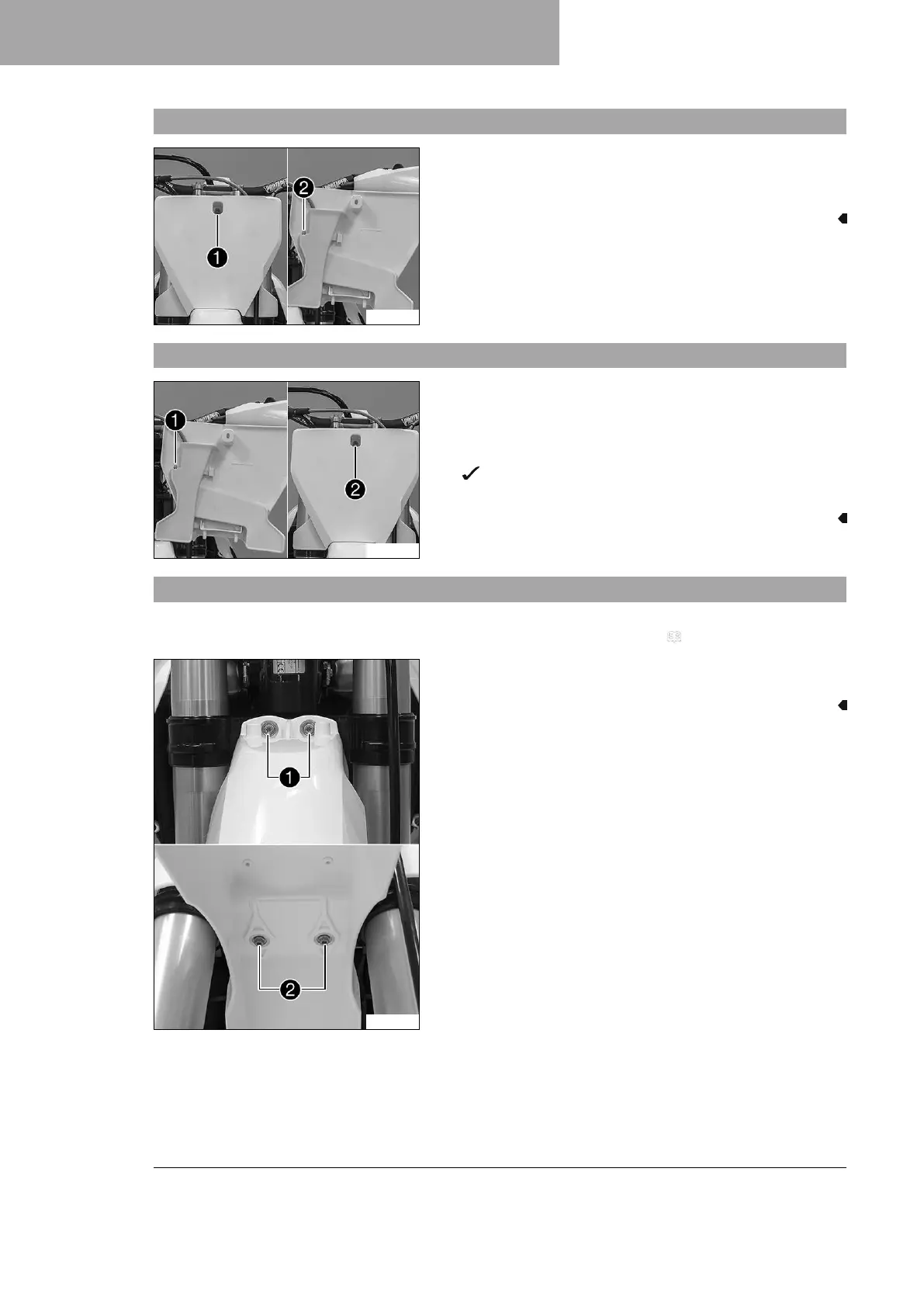

11.14 Removing the start number plate

K01332-10

–

Remove screw

–

Remove screw

and take off the brake line guide and start

number plate.

11.15 Installing the start number plate

K01331-10

– Position the brake line and brake line guide on the start num-

ber plate.

–

Mount and tighten screw

– Position the start number plate.

The holding lugs engage in the fender.

–

Mount and tighten screw

11.16 Removing front fender

Preparatory work

– Remove the start number plate. ( p. 58)

K01078-10

Main work

–

Remove screws

and

. Remove front fender.
