6 CONTROLS

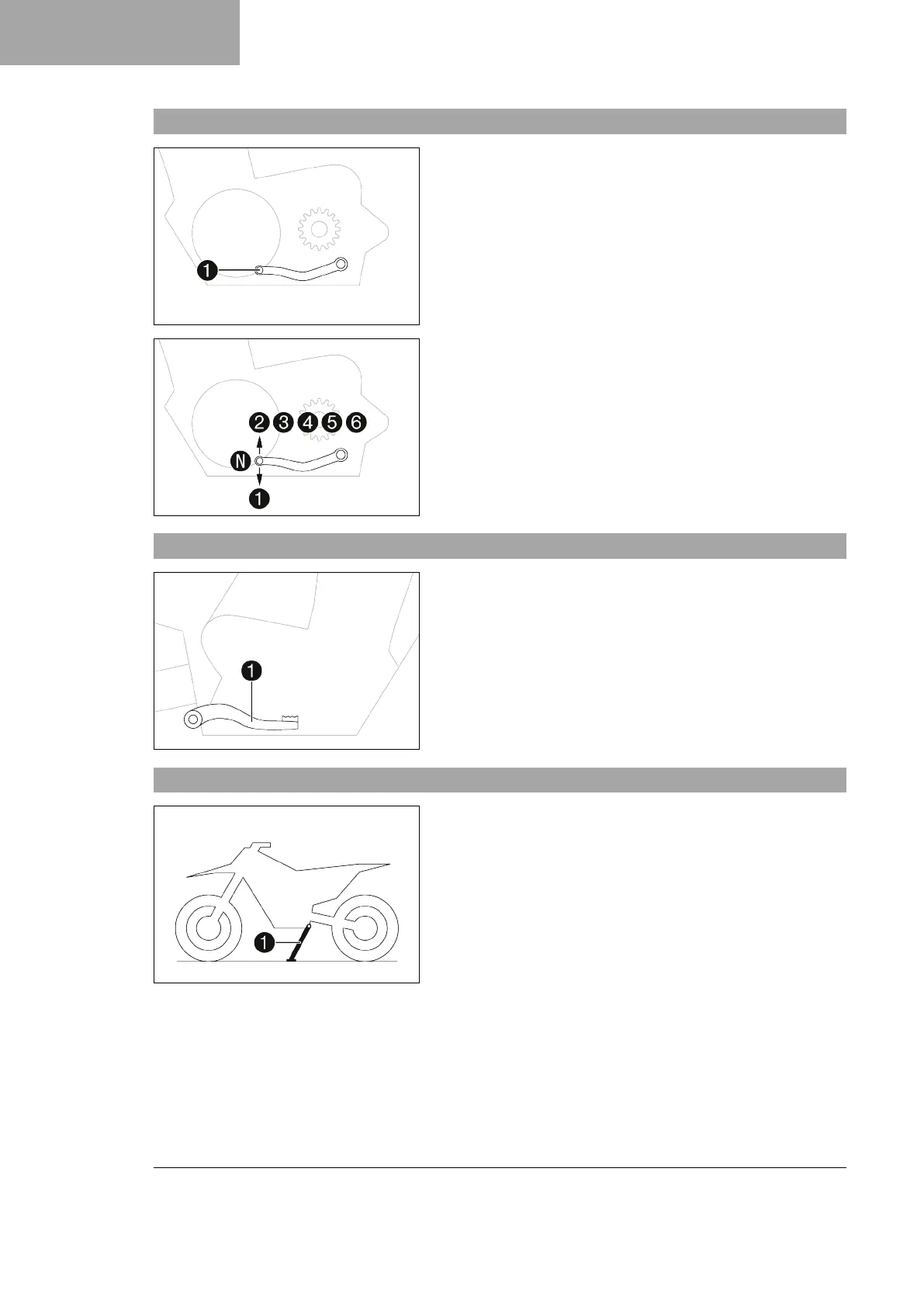

6.14 Shift lever

401950-10

Shift lever

is mounted on the left of the engine.

401950-11

The gear positions can be seen in the figure.

The neutral or idle position is between the first and second gears.

6.15 Foot brake lever

401956-10

Foot brake lever

is located in front of the right footrest.

The foot brake lever is used to activate the rear brake.

6.16 Side stand

401943-10

The side stand

is located on the left of the vehicle.
