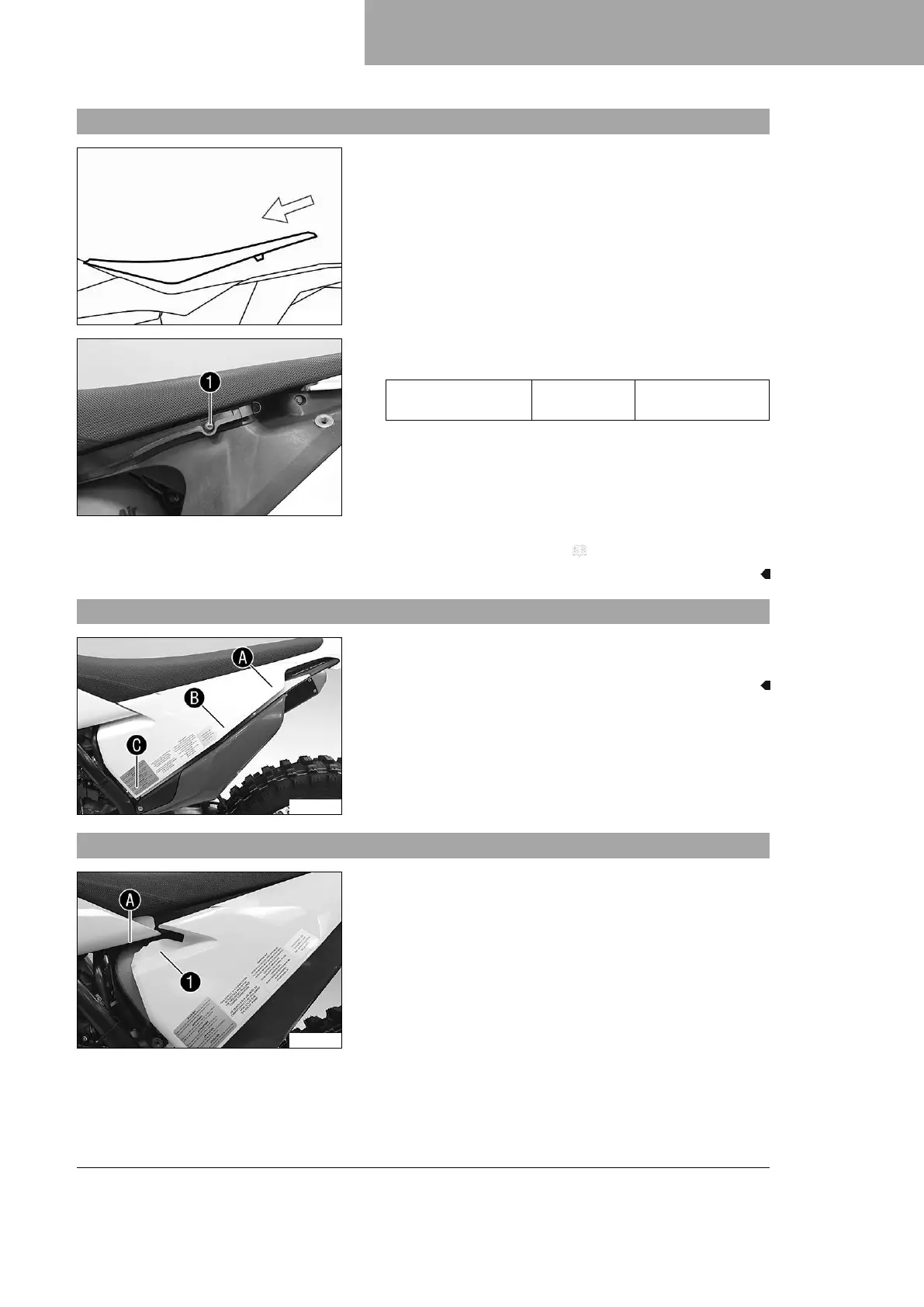

SERVICE WORK ON THE CHASSIS 11
63
11.21 Mounting the seat
H02218-11
Main work
– Mount the front of the seat on the collar bushing of the fuel
tank and the rear in the bracket.
– Push the seat forward.
– Make sure that the seat is locked in correctly.
V01319-10
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the air filter box cover. ( p. 63)
11.22 Removing the air filter box cover
V01582-10
–
Pull off the air filter box cover sideways in areas
A
,
B
and
C
and take off toward the rear.
11.23 Installing the air filter box cover
V01583-10
–
Attach catch
1
of the air filter box in area
A
and push for-
ward.
