SERVICE WORK ON THE CHASSIS 11
51

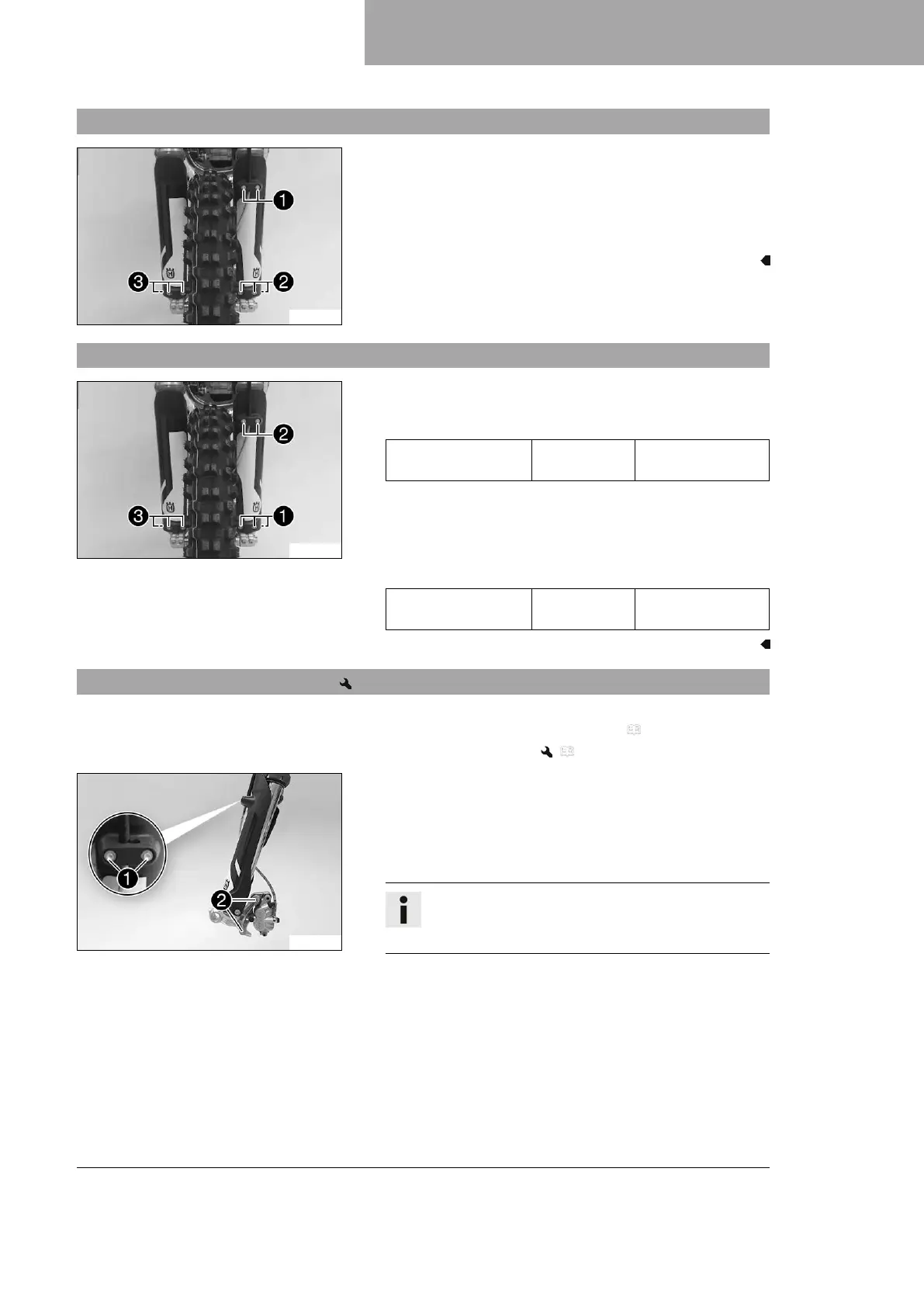

11.5 Removing the fork protector
V02140-11
–
Remove screws
1
on the left fork leg. Take off the clamp.
–
Remove screws
2
on the left fork leg. Take off the left fork
protector.
–
Remove screws
3
on the right fork leg. Take off the right
fork protector.
11.6 Installing the fork protector
V02140-10
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line and clamp. Mount and tighten
screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
11.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 49)
– Remove the front wheel. ( p. 92)
V02141-10
Main work
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and brake line to hang loosely to the
side.
Info
Do not actuate the hand brake lever when the front
wheel is removed.
