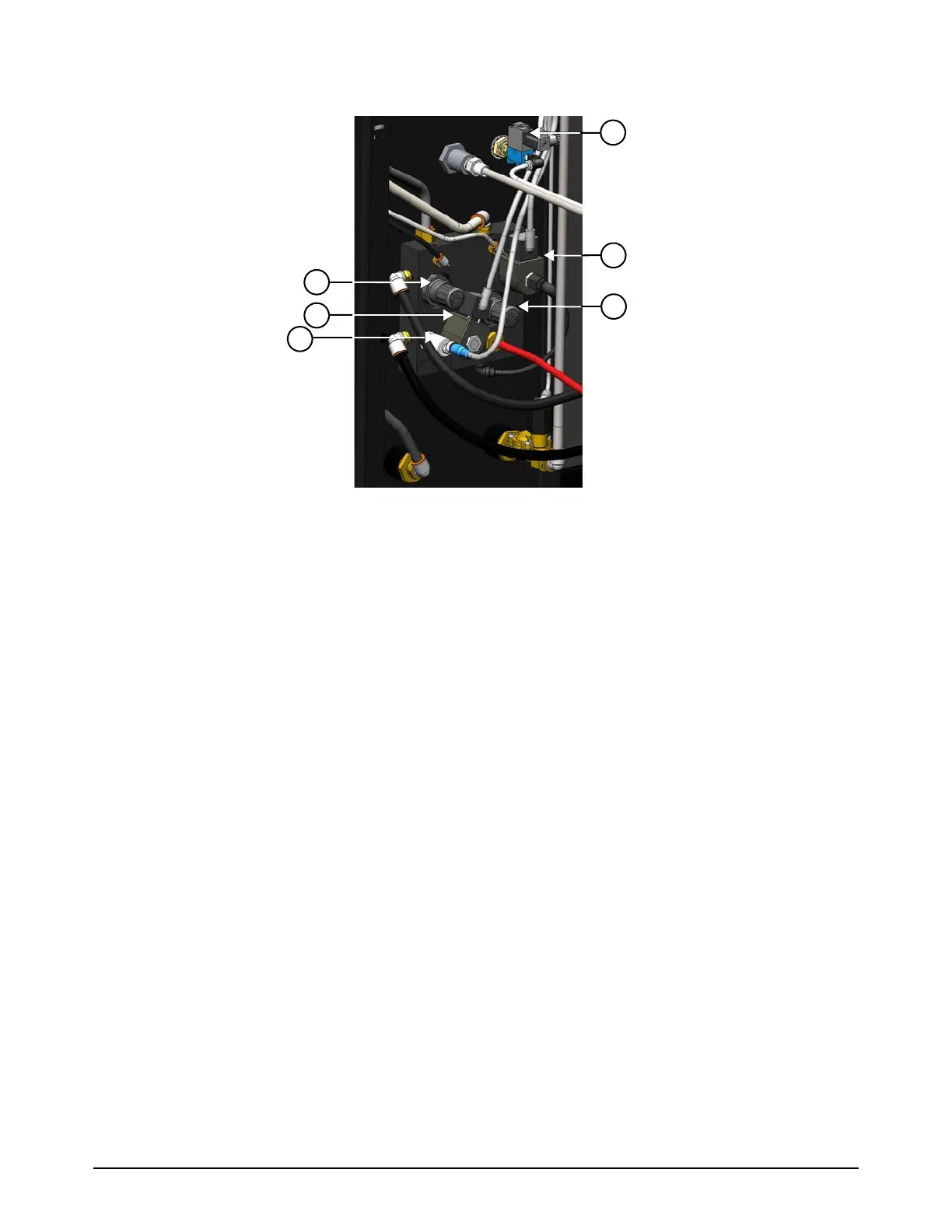

1
Boost pump pressure regulator
This knob lets the user adjust boost
pump pressure.
2
Supply cutting water solenoid
The solenoid controls the cutting water
coming into the system.
3
Low-pressure transducer
The transducer monitors the manifold
water pressure.
4
Bleed-down valve solenoid
This solenoid opens and closes the
bleed-down valve.
5
Low water-pressure water dump valve
The valve closes to maintain water
pressure while cutting. It opens to release
pressure when the pump turns off.
6
Low-pressure water relief valve
The relief valve prevents water in the
system from being too high. When the
valve opens, water goes to the drain.
