30 HyPrecision 50S/60S/75S Operator Manual 808690
2 – Product description
Product description

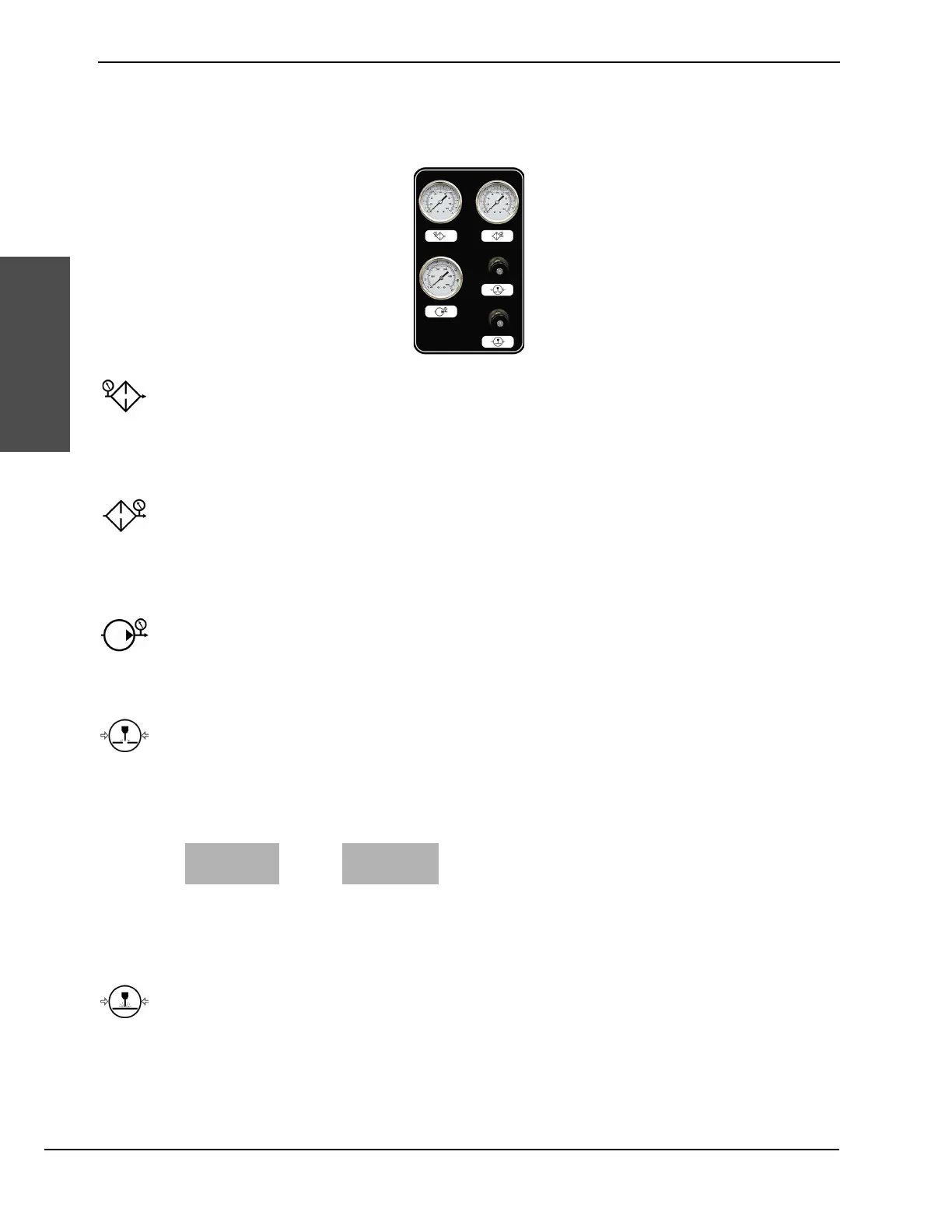

Pump exterior
Gauge panel
Prefilter water-pressure gauge
The prefilter water-pressure gauge shows the water pressure before the water goes through the filters. The usual
operating range is 2.76 bar to 7.58 bar or 275.79 kPa to 758.42 kPa (40 psi to 110 psi).
Postfilter water-pressure gauge
The postfilter water-pressure gauge shows the water pressure after the water goes through the filters. The usual
operating range is 2.76 bar to 7.58 bar or 275.79 kPa to 758.42 kPa (40 psi to 110 psi).
Hydraulic pressure gauge
This gauge shows the hydraulic pressure in the pump.
Cut-pressure control knob
This knob changes the water pressure from the intensifier for cutting.
To calculate the approximate water pressure, multiply the hydraulic pressure gauge value by 20.
Pierce-pressure control knob
This knob changes the water pressure from the intensifier for piercing.
Hydraulic
pressure
Water
pressure
Example:
210bar ×20= 4,200bar
20,650 kPa × 20 = 41,300 kPa
3,000 psi × 20 = 60,000 psi
