HyPrecision 50S/60S/75S Operator Manual 808690 49
4 – Operation
Operation
Operate the pump
Operator interface
The hour meter on the top left of the operator interface screen shows the total hours the pump has been in
operation. The current date and time are on the top right. These are on every screen.
The date can be shown in 2 formats: dd/mm/yy or mm/dd/yy.
Refer to page 56 for instructions
for setting the
date.
CAUTION
When an original equipment manufacturer (OEM) or a system integrator makes a cutting system by
combining Hypertherm equipment with other equipment, the end-use customer and the OEM or the
system integrator are responsible for providing protection against hazardous moving parts.
Hypertherm Inc. recommends taking these actions to prevent operator injury and equipment
damage:
• Read and understand the instruction manual supplied by the OEM or the system integrator.
• Maintain a restricted-access area larger than the maximum movement range of the cutting
equipment’s moving parts.
• Where there is a risk of a collision, do not permit people or equipment near the cutting
equipment’s moving parts.
• Prevent accidental contact with the touchscreen or joystick on the computer numerical control
(CNC) machine. Accidental contact can cause unexpected operation.
• Do not do maintenance, repair, or clean the machinery while it is running. (Some maintenance
procedures require the pump to be on.)
• If maintenance or repair is required, disconnect and lock out or tag out the primary power to
disable the motors and prevent motion. Refer to Safety on page 70 for additional information.
• Permit only qualified people to operate, maintain, and repair this machinery. Refer to page 20 for
more information.
CAUTION
Make sure that value on the prefilter water-pressure gauge is between 3.45 bar and 7.93 bar
or 344.74 kPa and 792.90 kPa (50 psi to 115 psi). If the pressure is not in this range, refer to
Adjust the boost pump pressure on page 201.

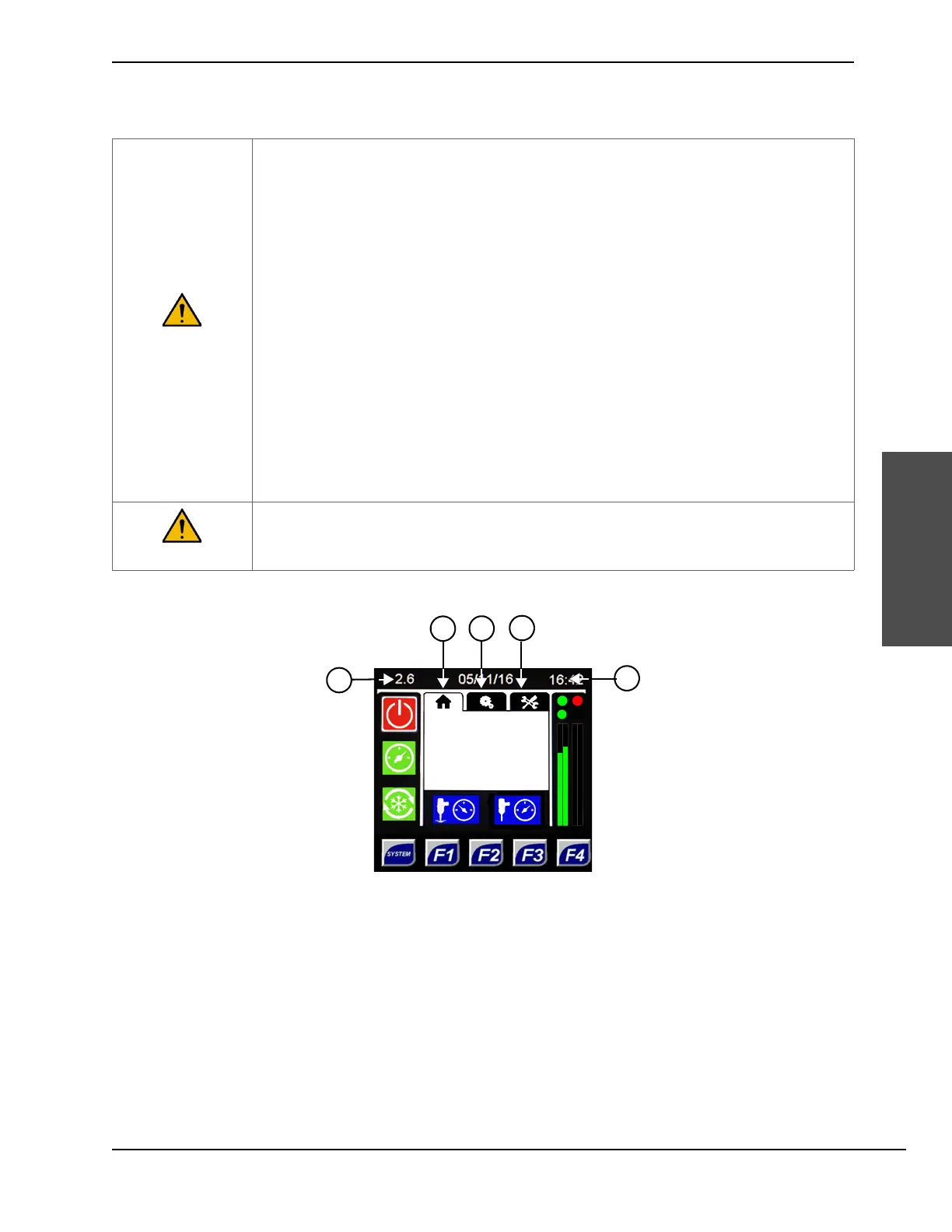

1 Hour meter
2 Primary screen tab
3 Settings screen tab
4 Maintenance screen tab
5 Date and time
