1010—Left Drive Support Bracket
Disconnect any cables necessary for removal.
Slide bracket toward back to release catches. Lift up to remove.
(Front View)
Left Bracket
Catch

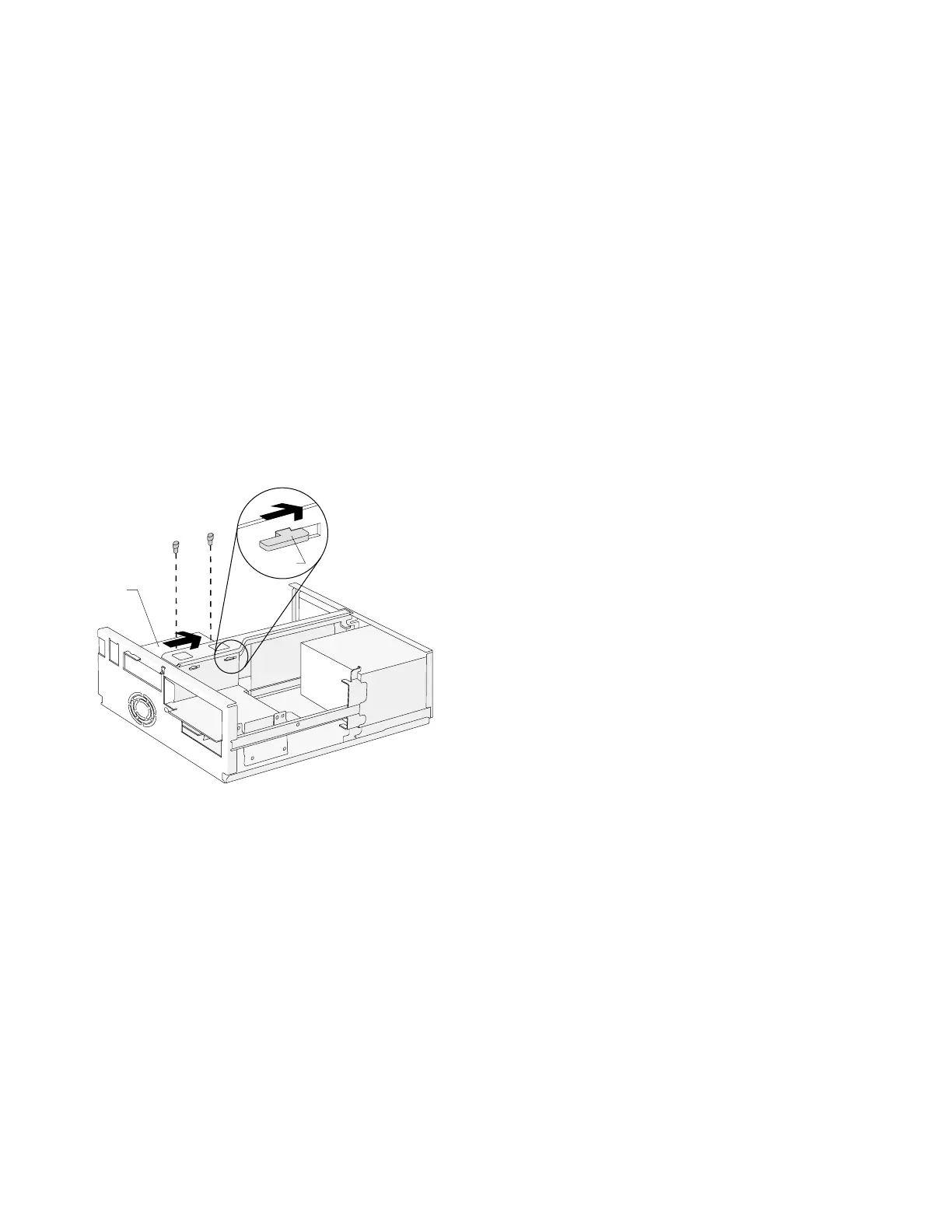

Figure 4-3. Left Drive Support Bracket
4-4
