2051—Memory (DIMM)
Attention: Memory modules are sensitive to static discharge. See
“Handling ESD-Sensitive Parts” on page 4-38.
Adapter cards (2035) if applicable.
Riser card (if DIMM is located behind riser card).
Push out on the side clamps to release the module.
Pull the module up and out to remove.
Note: Run the Setup Utility after adding or removing memory.
DIMM
memory module
DIMM socket
DIMM socket
memory module sockets
notches
To insert DIMM module:
Position bottom notches over
socket dividers as shown.

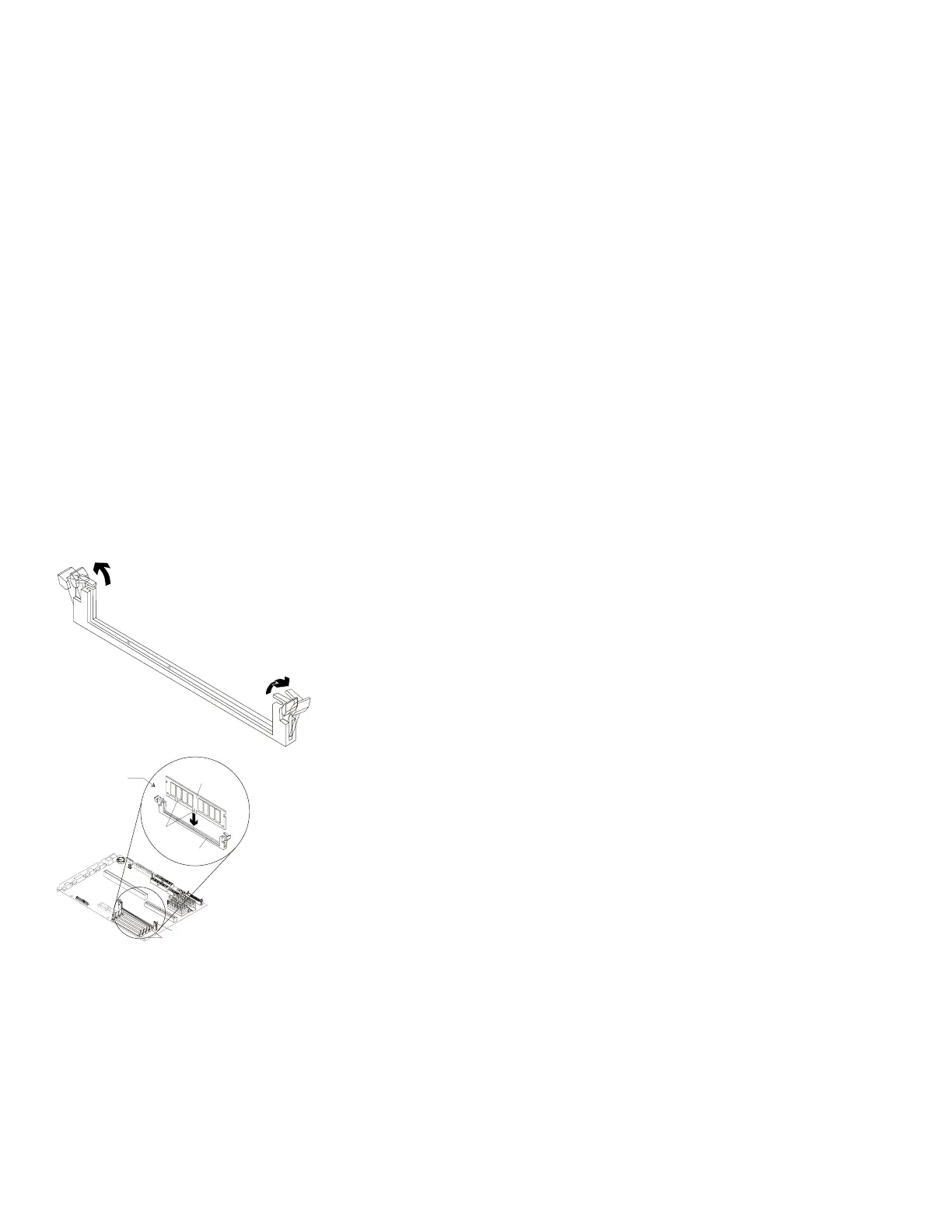

Figure 4-31. Memory DIMM
4-30
