1025—5.25-In. Bay
Left drive support bracket (1010)
CD-ROM drive or other drives
Right drive support bracket (1015)
When removing a drive, reinstall the new FRU in the same bay.
Any of these devices may be installed in any 5.25-in. bay:
CD-ROM drive
5.25-in. diskette drive
Dual 3.5-in. and 5.25-in. diskette drive
Drive
Right Bracket
Right Bracket
Catch
Riser Card
(Front View)

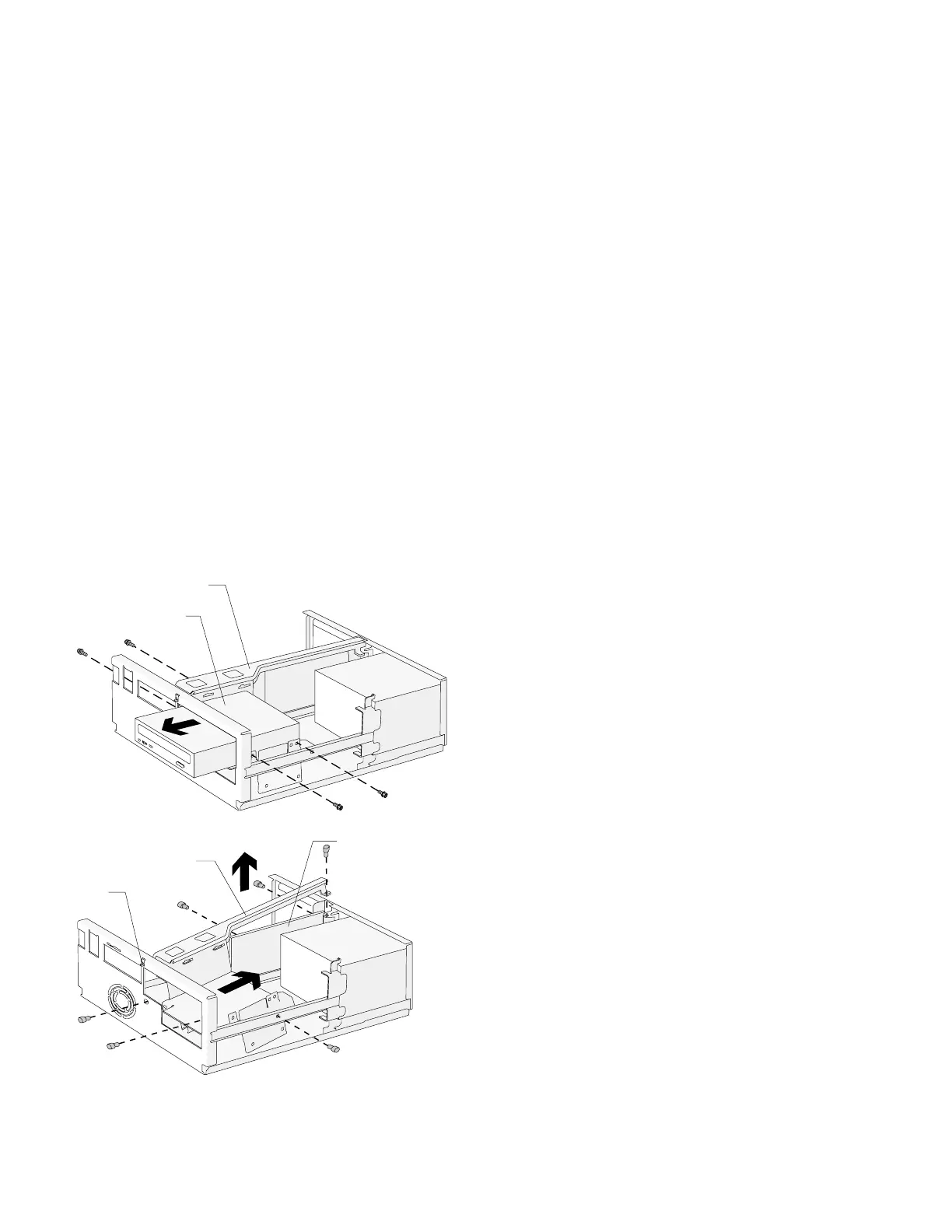

Figure 4-6. 5.25-In. Bay
Repair Information 4-7
