ICP DAS USA tGw-735 User Manual

Tiny Modbus/TCP to RTU/ASCII Gateway
Copyright © 2020 ICP DAS CO., Ltd. All Rights Reserved. - 14 -

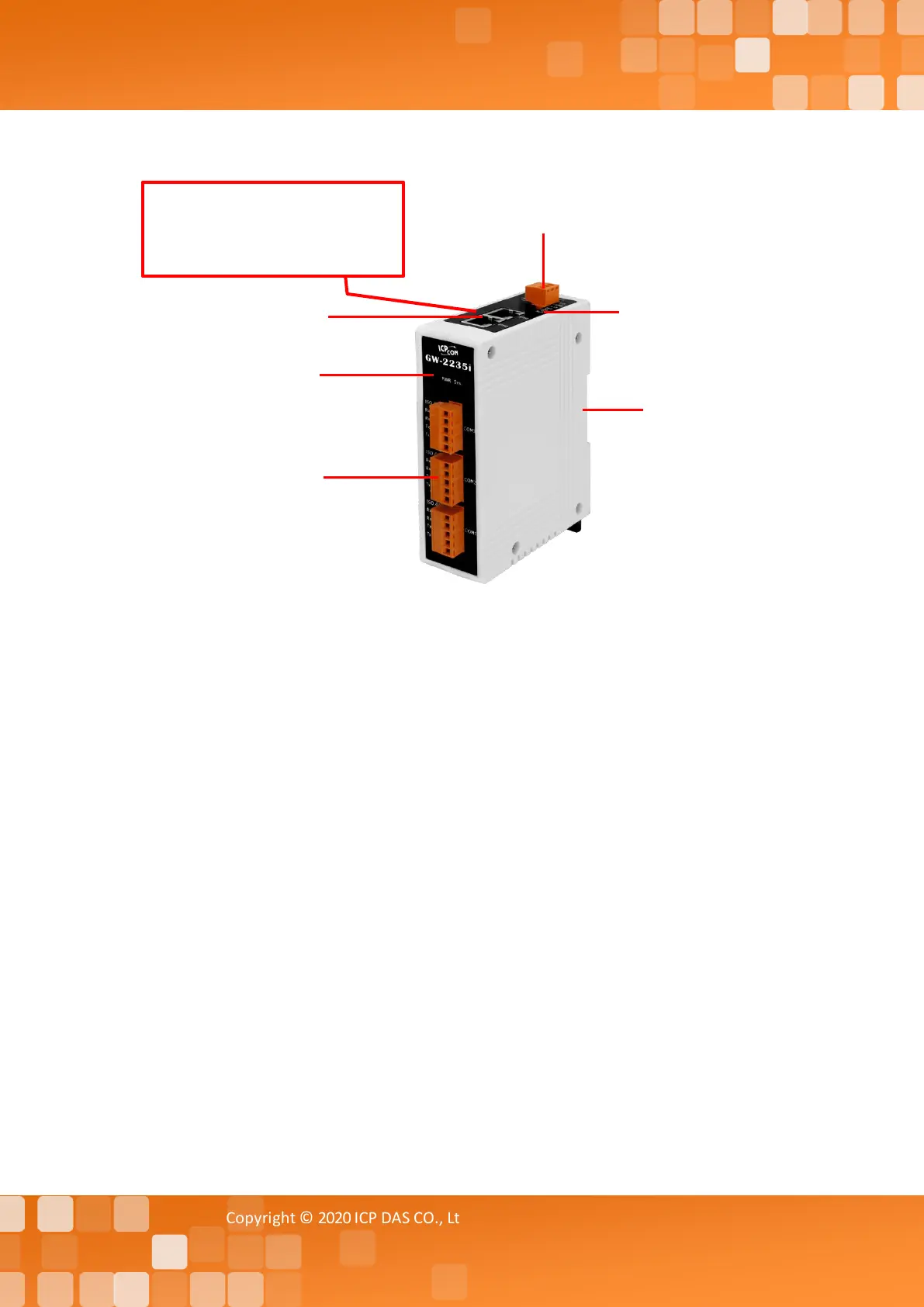

 GW-2200 Series
PoE and Ethernet RJ-45 Jack
The tGW-700 module is equipped with an RJ-45 jack that is used as the 10/100 Base-TX Ethernet
port and features networking capabilities, supports PoE power supply (except tGW-700-T Series).
The GW-2200 series module is equipped with two RJ-45 jacks that are used as the 10/100 Base-TX
Ethernet port and features networking capabilities, only ETH1 supports PoE power supply. When an
Ethernet link is detected and an Ethernet packet is received, the Link/Act LED (Orange) indicator
will be illuminated. When power is supplied via PoE (Power-over-Ethernet), the PoE LED (Green)
indicator will be illuminated.
+12 to +48 VDC Jack
The tGW-700 is equipped with a +12V
DC
to +48 V
DC
jack that can be used to connect a power supply.
The tGW-700-T series and the GW-2200 series is equipped with a +12V
DC
to +48 V
DC
terminal that
can be used to connect a power supply. If no PoE switch is available on site, a DC adapter can be
used to power the tGW-700/GW-2200 module.
E TH1 supports PoE, Ethernet
E TH2 supports Ethernet o n ly
5. Serial COM Ports
4. LED indicator
2. +12 to +48 V
DC
terminal
3. Operating Mode Switch
1. PoE and Ethernet
RJ-45 Jack
6. DIN-Rail Mounting
