6.4 TCP Client Mode Applications

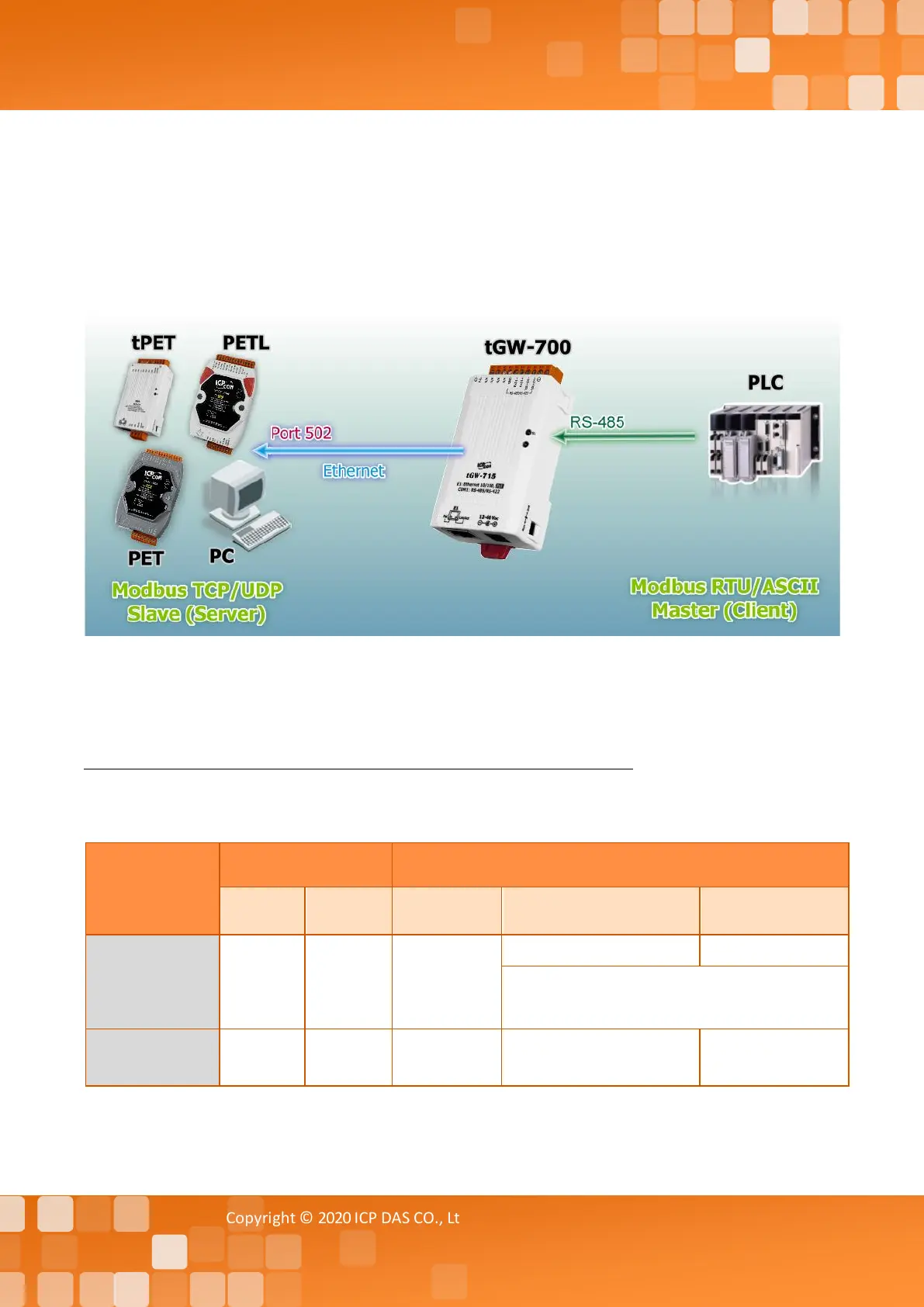

In TCP Client Mode, the tGW-700/GW-2200 can actively establish a TCP connection to a specific
Modbus TCP slave device. An example of how the complete system should operate is shown below:
The following are examples of pair-connection tests:
 TCP Client Mode Settings:
Model
Port Settings
(default)
Pair-connection Settings
Baud
Rate
Data
Format
Application
Mode
Remote
Server IP
Remote TCP Port
tGW-700
GW-2200
115200
8, N, 1
Client
10.0.8.10
502
IP address and TCP port
for the tPET-P6 (Slave Device)
tPET-P6
(Slave Device)
-
-
-
-
-
Figure 6-11
