Tiny Modbus/TCP to RTU/ASCII Gateway
Copyright © 2020 ICP DAS CO., Ltd. All Rights Reserved. - 21 -

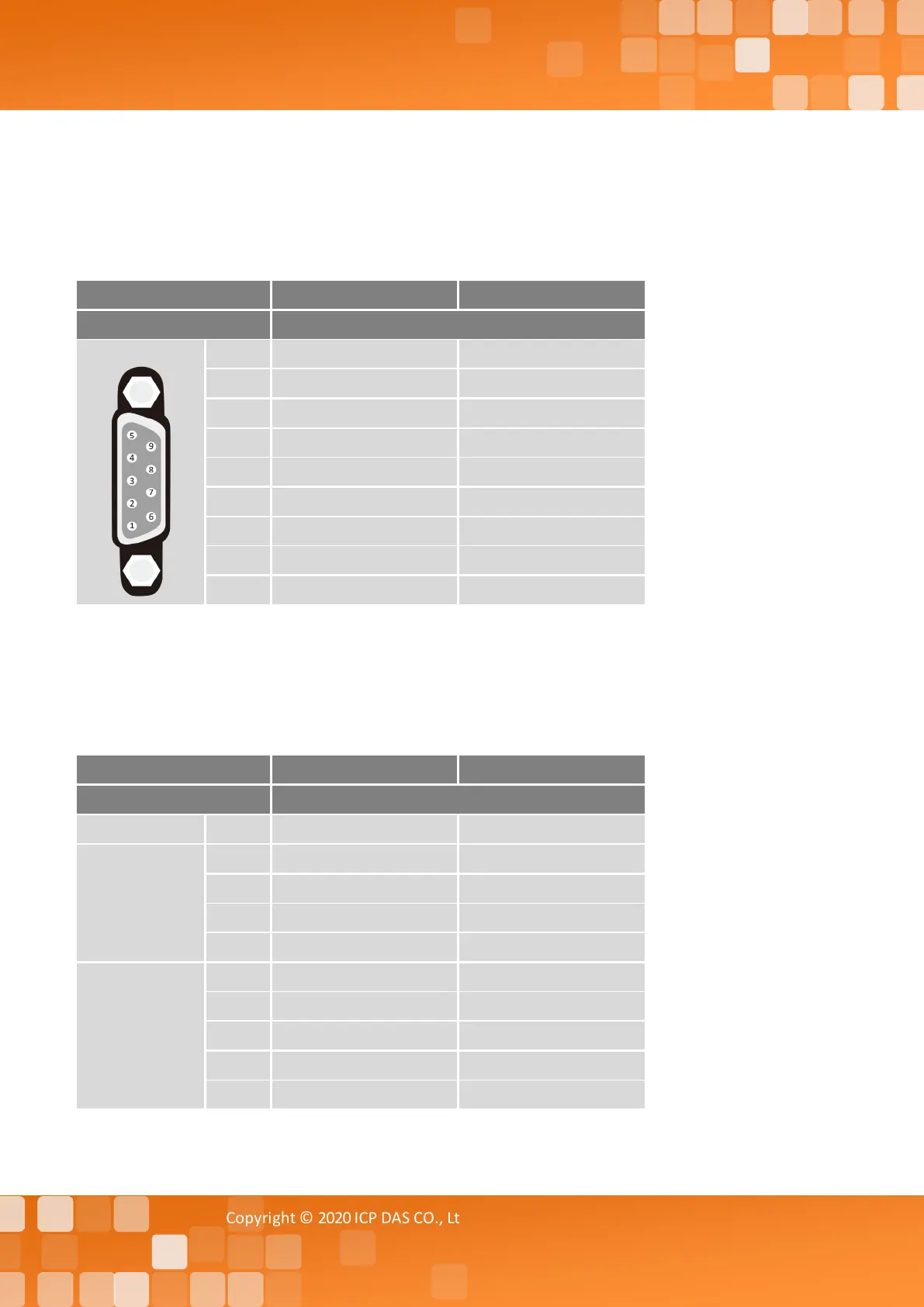

2.4 Pin Assignments
tGW-712/tGW-712i
Note: The CTS/RTS pins for flow control are supported after the firmware version B1.5.6 only.
tGW-722/tGW-722i
Note: The CTS/RTS pins for flow control are supported after the firmware version B1.5.6 only.
tGW-712
tGW-712i
Terminal No.
Pin Assignment
COM1
09
N/A
N/A
08
CTS1
CTS1
07
RTS1
RTS1
06
N/A
N/A
05
GND
ISO.GND
04
N/A
N/A
03
TxD1
TxD1
02
RxD1
RxD1
01
N/A
N/A
tGW-722
tGW-722i
Terminal No.
Pin Assignment
10
F.G.
F.G.
COM2
09
CTS2
CTS2
08
RTS2
RTS2
07
RxD2
RxD2
06
TxD2
TxD2
COM1
05
GND
ISO.GND
04
CTS1
CTS1
03
RTS1
RTS1
02
RxD1
RxD1
01
TxD1
TxD1
