Tiny Modbus/TCP to RTU/ASCII Gateway

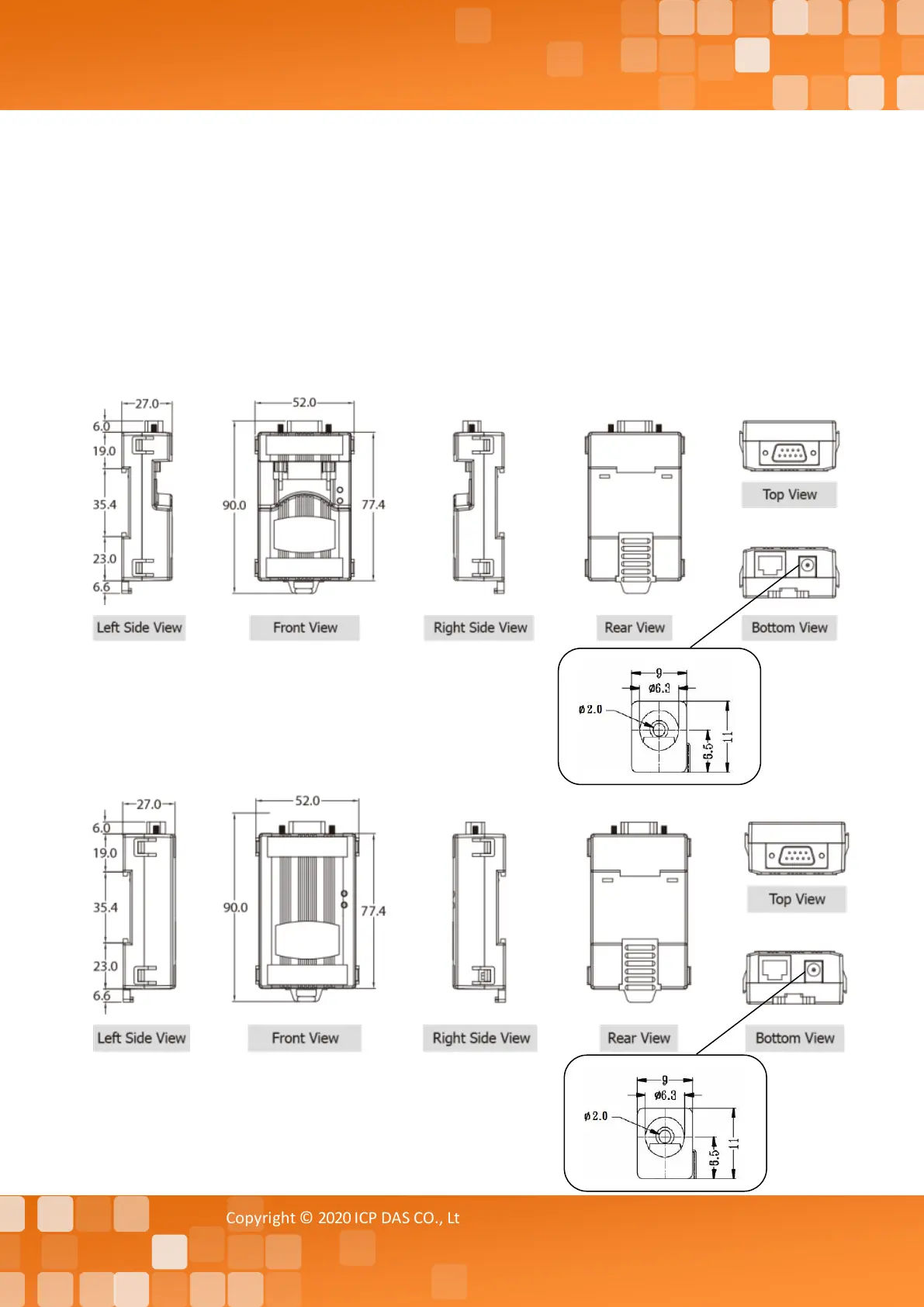

2.3 Dimensions

The following diagrams provide the dimensions of the tGW-700/GW-2200 series module and

CA-002 cable that can be used as a reference when defining the specifications and the DC power

supply plug for any custom enclosures. All dimensions are in millimeters.

tGW-700 Series Module (Unit: mm)

 tGW-712:

 tGW-712i/718i-D:
