INOVANCE TECHNOLGY EUROPE GmbH
SV660N Startup Procedure_EN_v1.4_20220826.docx

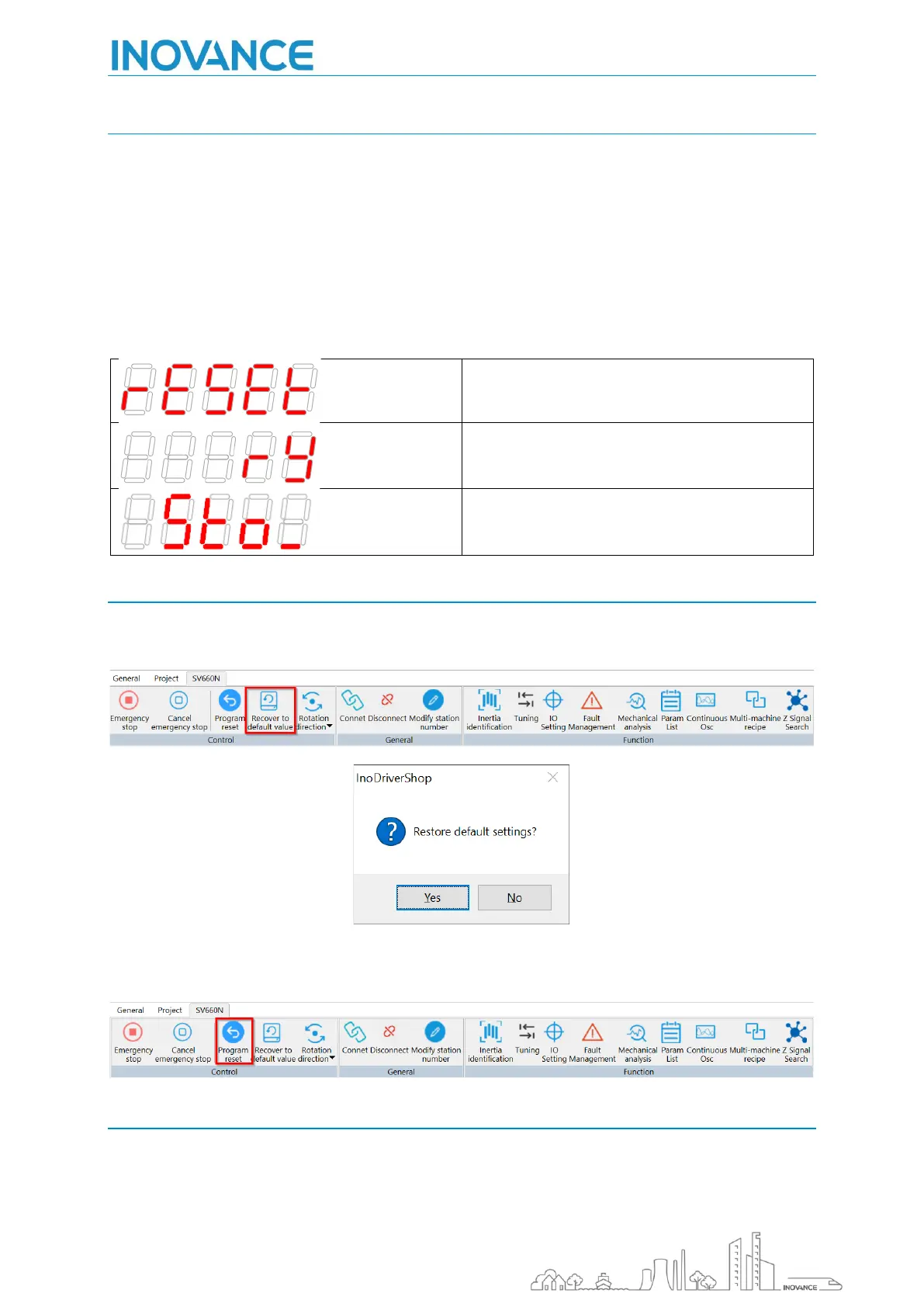

6.4.1 POWER SUPPLY
Switching on the input power supply
The input terminals for single-phase 220 V power supplies are L1 and L2.
The input terminals for three-phase power supplies are L1C/L2C (control circuit power input terminals) and
R/S/T (main circuit power input terminals)
After switching on the input power supply, if the bus voltage indicator is in normal status and the keypad
displays "reset" → "ry" in sequence, it indicates the servo drive is ready to run and waits for the S-ON signal to
be sent from the host controller.
First status after power up. After initialization or
reset is done, the servo drive automatically
switches to other status.
The servo drive is ready to run and waits
for the S-ON signal to be sent from the
host controller.
STO enabled. Connect the STO1 and STO2 to the
24 V input voltage signal to switch to “Ready”
state
6.4.2 FACTORY DEFAULT
The factory default parameters of the drive can be restored through the software InoDriverShop or with
parameter “H02-31 System parameter initialization” changing the value from 0 to 1.
Some parameters need to be effective after powered on again. The parameters can be validated by software
reset. So, it is recommended to do a software reset after restore factory default parameters
6.4.3 JOGGING
The jog function can be started using the keypad (jogging in the speed mode/jogging in the position mode) or
Inovance software tool (jogging in the speed mode).
1. Open Jog screen
