6.6.1 INERTIA AUTO-TUNING
The load inertia ratio (H08-15) is calculated by using the following formula.

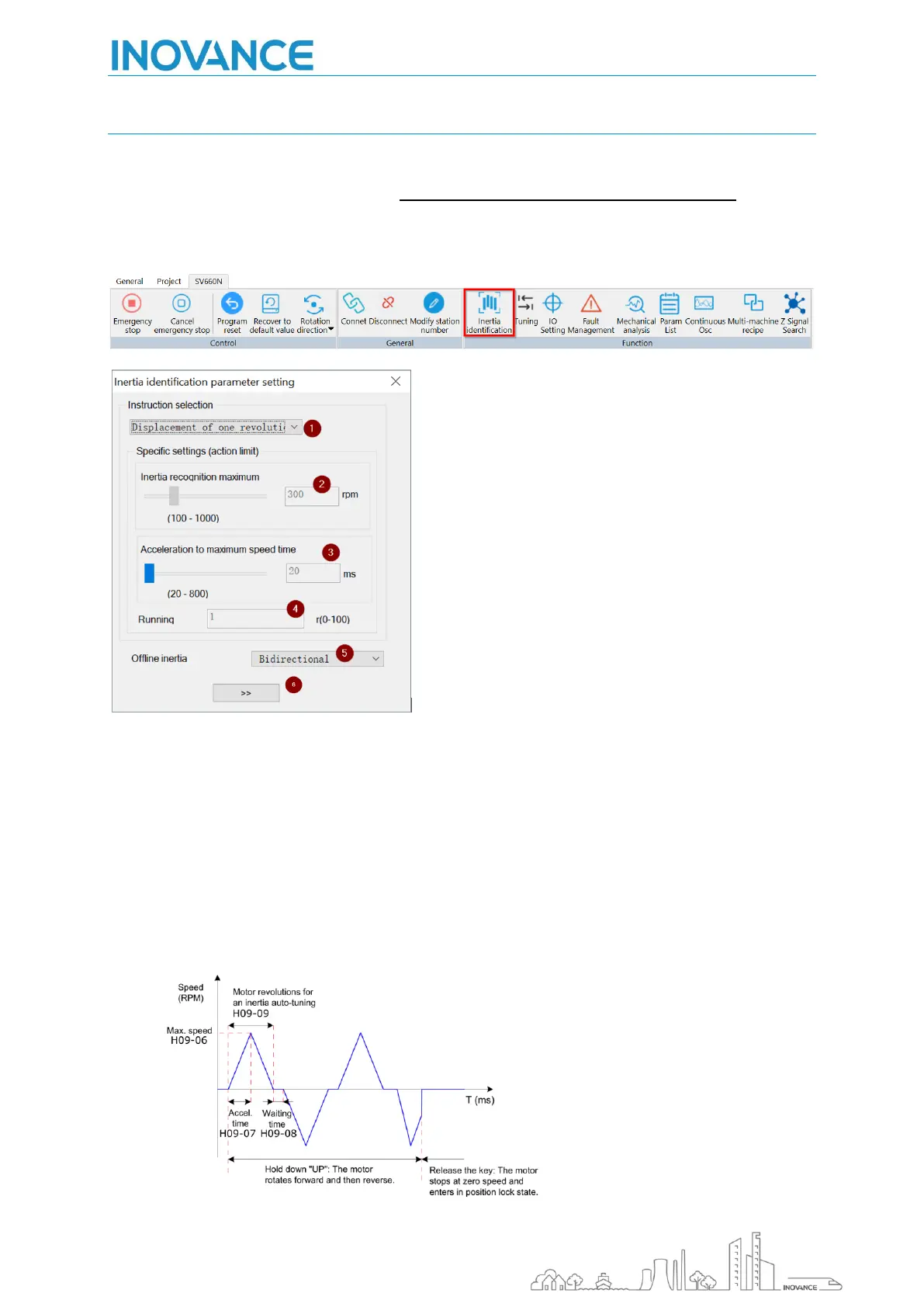

Click on “Inertia Identification” icon to access to the inertia identification dialog.
1. Parameter H09-09 - Number of motor revolutions per inertia auto-tuning
a. Displacement of one revolution
b. Displacement of five revolution
c. Customized
2. Parameter H09-06 - Max. speed of inertia auto-tuning
3. Parameter H09-07- Time constant for accelerating to the maximum speed during inertia auto-tuning
4. Parameter H09-09 - Customized number of motor revolutions per inertia auto-tuning
5. Parameter H09-05 - Offline inertia auto-tuning mode
a. Unidireccional
b. Bidireccional
6. Button to go to the next step. Click this button when the inertia settings are ok.
