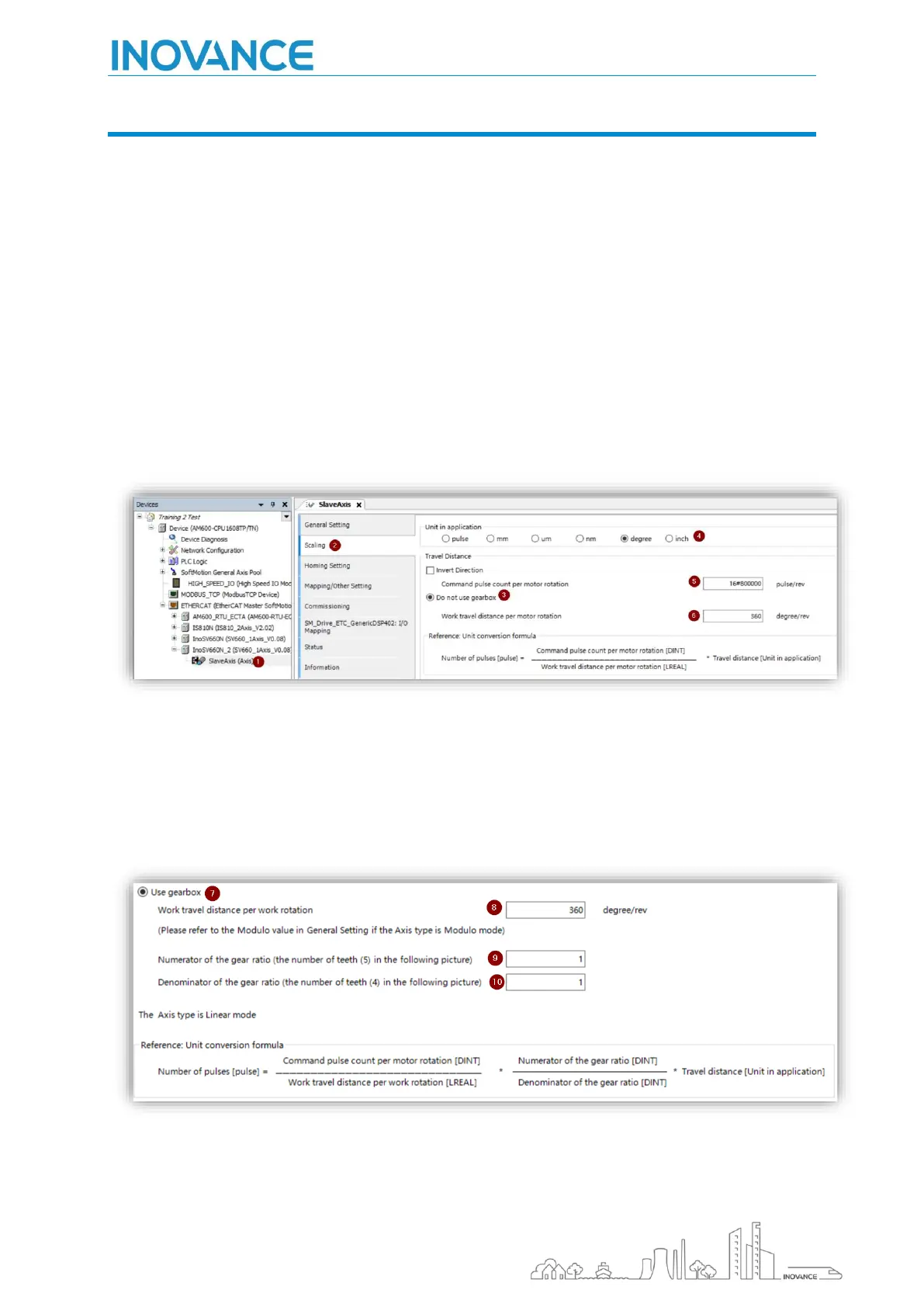

7.2 INOPROSHOP SCALING CONFIGURATION
The axis scaling can also be modified from the EtherCAT Master. This section describes the scaling configuration
using the InoProShop software.
Follow this procedure to change the axis scaling:
1. Open axis configuration
2. Select Scaling
3. Select “Do not use gearbox” if so is
4. Select the corresponding units. This does not affect to the axis behavior, it is only for information
purpose.
5. Define the encoder pulse/revolution.
a. 23 bit encoder: set 16#800000 or 8388608
b. 20 bit encoder: set 16#100000 or 1048576
c. Another kind of encoder set the corresponding value
6. Define travel distance for motor rotation
Follow the next procedure if there is a mechanical transmission ratio:
7. Enable gearbox option
8. Define travel distance for load rotation
9. Set numerator of the gear ratio
10. Set denominator of the gear ratio
