Detailed Function Description
55
OFF OFF Stop
ON OFF FWD
OFF ON REV
ON ON Stop

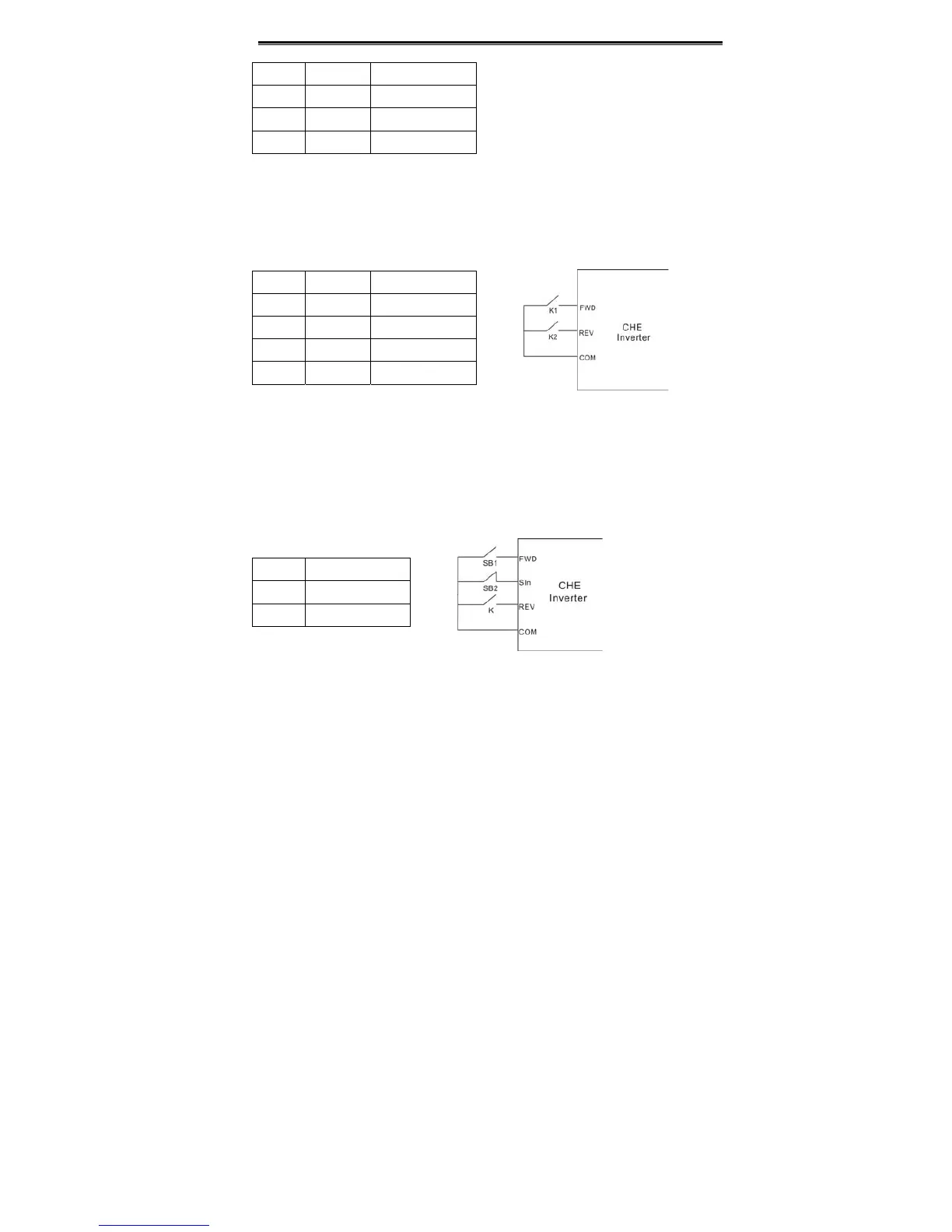

Figure 6.10 2-wire control mode1.
1: 2-wire control mode 2: START/STOP command is determined by FWD terminal. Run
direction is determined by REV terminal.
K1 K2 Run command
OFF OFF Stop
ON OFF FWD
OFF ON Stop
ON ON REV
Figure 6.11 2-wire control mode 2.
2: 3-wire control mode 1:
SB1: Start button
SB2: Stop button (NC)
K: Run direction button
Terminal SIn is the multifunctional input terminal of S1~S4. The terminal function should
be set to be 3 (3-wire control).
K Run command
OFF Stop
ON FWD
Figure 6.12 3-wire control mode 1.
3: 3-wire control mode 2:
SB1: Forward run button
SB2: Stop button (NC)
SB3: Reverse run button
Terminal SIn is the multifunctional input terminal of S1~S4. The terminal function should
be set to be 3 (3-wire control)
