INVT CHE100-0R7G-S2 User Manual

Detailed Function Description
78
mode determined by P1.05.
Function
Code
Name Description
Setting
Range
Factory
Setting
PC.06
Response
action
Unit’s place of LED
0: Response to writing
1: No response to writing
Ten’s place of LED
0: Reference not saved when power
off
1: Reference saved when power off
0~1 0~1

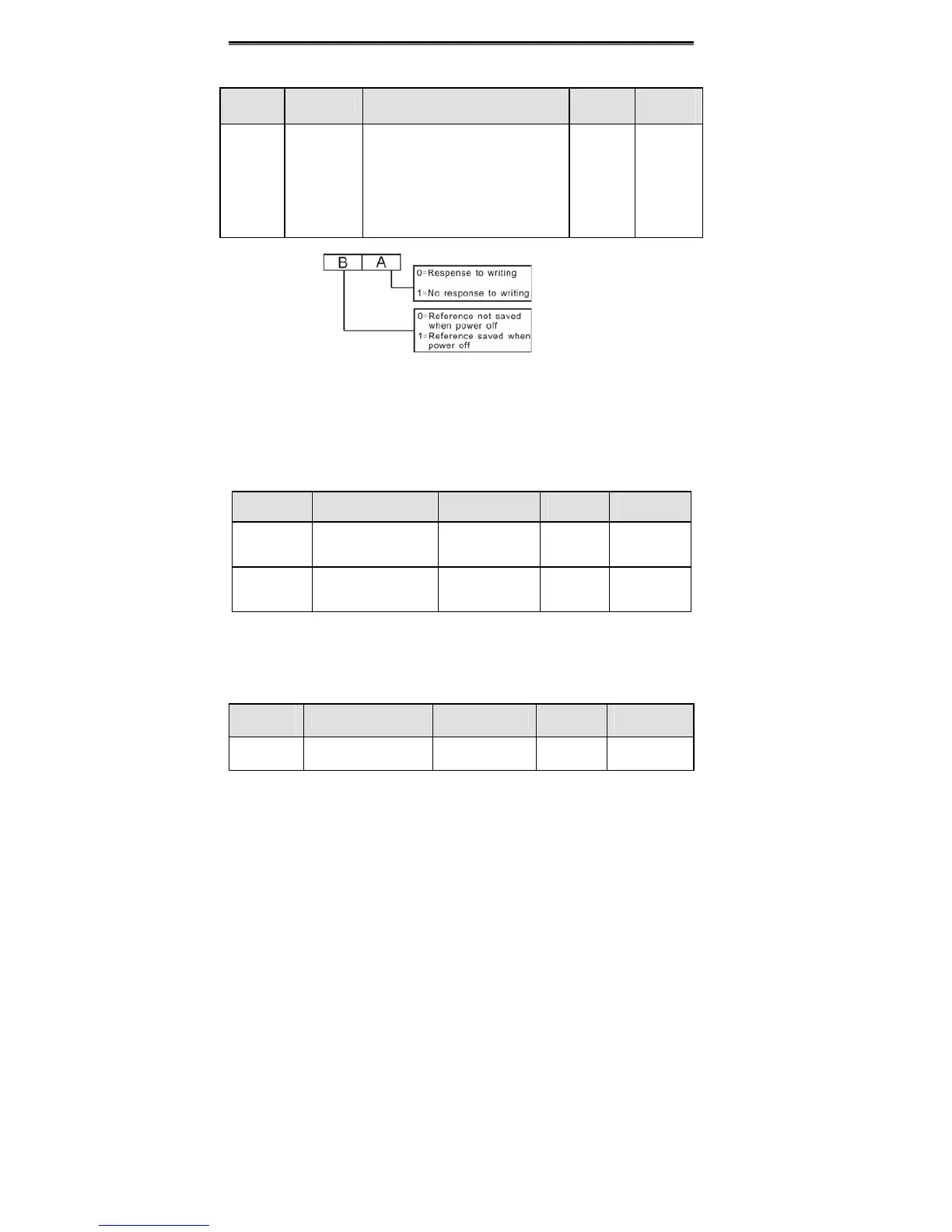

Figure 6.30 Meaning of PC.06.
A stands for: Unit’s place of LED.
B stands for: Ten’s place of LED
6.14 PD Group—Supplementary Function
Function
Code
Name Description
Setting
Range
Factory
Setting
PD.00
Low-frequency
threshold of
restraining oscillation
0~500 0~500 5
PD.01
High-frequency
threshold of
restraining oscillation
0~500 0~500 100
This function is valid only when PD.04 is set to be 0. The smaller the value of PD.00 and
PD.01, the stronger the restraining effect.
Notice: Most motor may have current oscillation at some frequency point. Please
be cautious to adjust these parameters to weaken oscillation.
Function
Code
Name Description
Setting
Range
Factory
Setting
PD.02
Amplitude of
restraining oscillation
0~10000 0~10000 5000
This parameter is used to limit the strength of restraining oscillation. If the value of PD.02
