INVT CHE100-0R7G-S2 User Manual

Detailed Function Description
65
during acceleration and deceleration are smooth without skip.
The relation between output frequency and reference frequency is shown in following
figure.

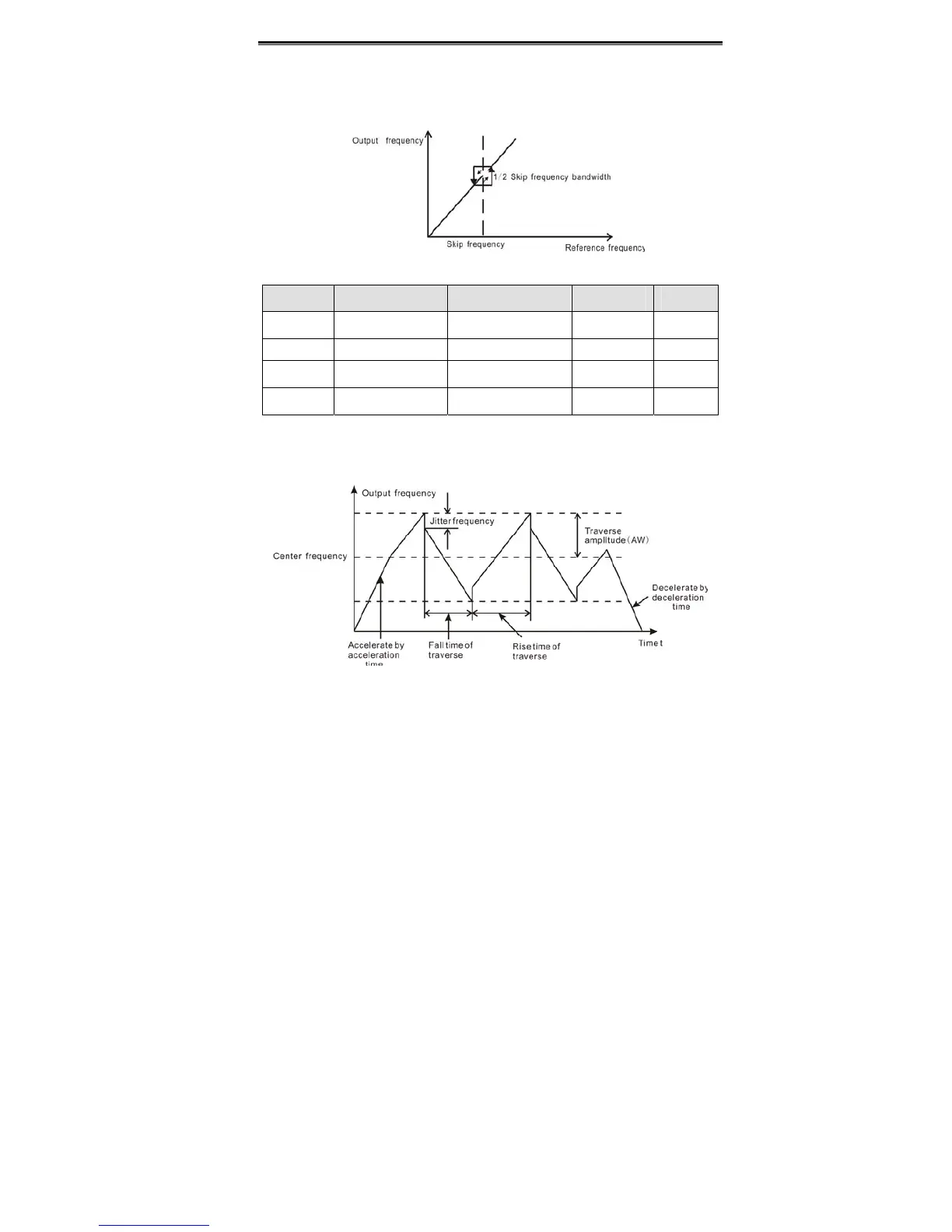

Figure 6.16 Skip frequency diagram.
Function
Code
Name Description
Setting
Range
Factory
Setting
P8.07
Traverse
amplitude
0.0~100.0% 0.0~100.0 0.0%
P8.08 Jitter frequency 0.0~50.0% 0.0~50.0 0.0%
P8.09
Rise time of
traverse
0.1~3600.0s 0.1~3600.0 5.0s
P8.10
Fall time of
traverse
0.1~3600.0s 0.1~3600.0 5.0s
Traverse operation is widely used in textile and chemical fiber industry. The typical
application is shown in following figure.
Figure 6.17 Traverse operation diagram.
Center frequency (CF) is reference frequency.
Traverse amplitude (AW) =center frequency (CF) * P8.08%
Jitter frequency = traverse amplitude (AW) * P8.08%
Rise time of traverse: Indicates the time rising from the lowest traverse frequency to the
