INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Commissioning
- 93 -
User-
defined
function
list
Related
function
code
Name
Description
Setting
range
Default
A81.00–
A81.41
Same as A80.00–A80.41
A82.00–
A82.41
Same as A80.00–A80.41
5.12 Measuring heights
5.12.1 Commissioning description
1. Internal measuring (Motor encoder)
Lifting
motor
Ground
Upward limit position
Downward limit position
P19.15
Gear box
P93.09
Initial
diameter
of drum
P93.15
P93.12
Winding turns
of outermost
layer P93.14
Full layer
winding turns
P93.13
Rope
droop
length
P93.11
Encoder
P93.17
P93.18

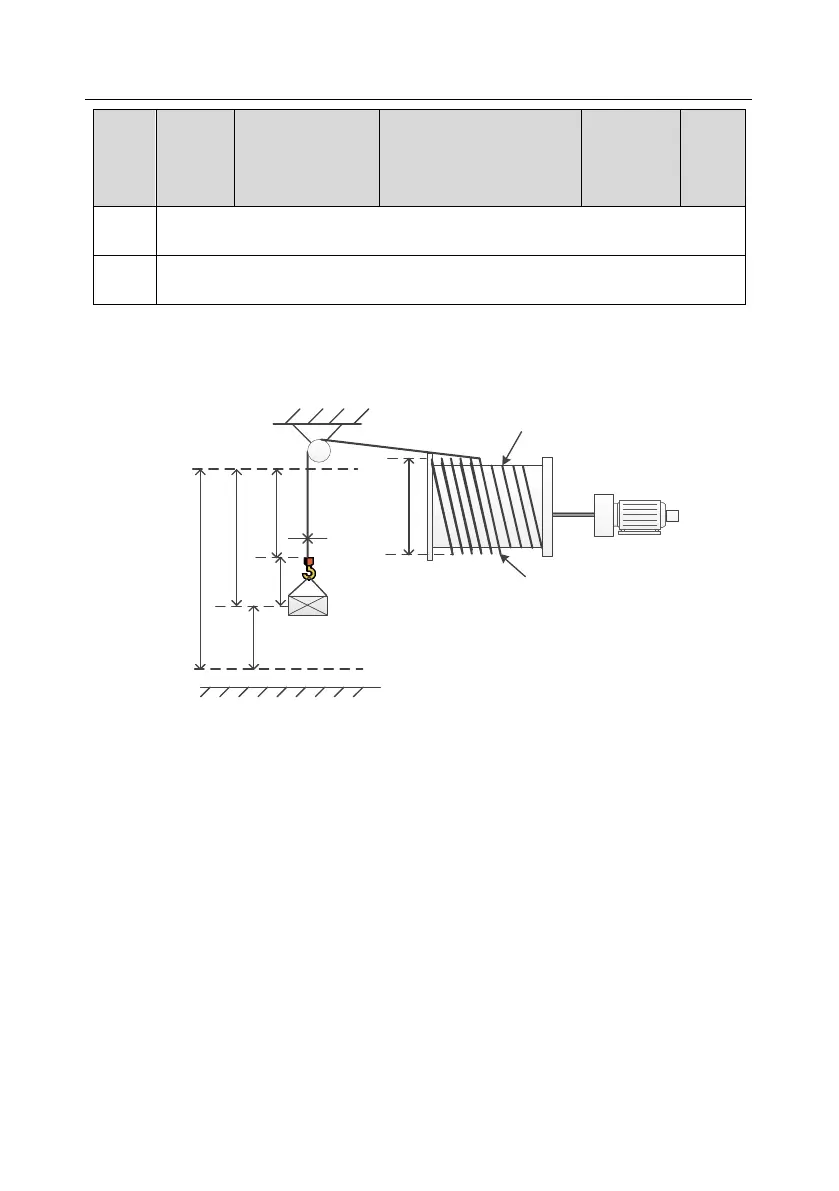

Figure 5.13 Internal measuring (motor encoder), using pulleys
