INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Dimensional drawings
-501-
C.6 AC 3PH 520V(-15%)–690V(+10%) VFD dimensions
C.6.1 Wall-mounting dimensions
W1
D1
W2
H1 H2

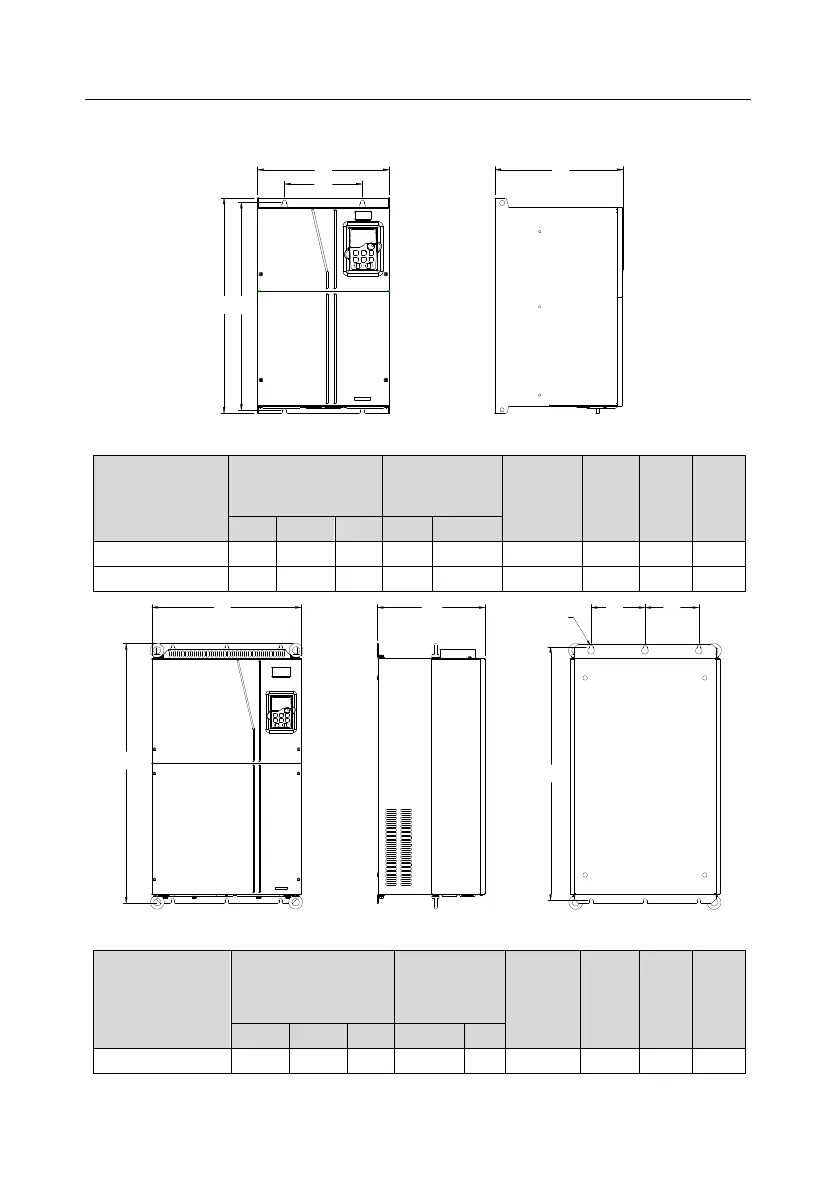

Figure C.16 660V 22–132kW VFD wall-mounting diagram
VFD model
Outline dimensions
(mm)
Mount
dimensions
(mm)
Hole
diameter
(mm)
Screw
Net
weight
(kg)
Gross
weight
(kg)
W1
H1
D1
W2
H2
22kW–45kW
270
555
325
130
540
7
M6
30
32
55kW–132kW
325
680
365
200
661
9.5
M8
47
67
W1
H1
D1
W2 W2
6- ø11.0
H2
Figure C.17 660V 160–220kW VFD wall-mounting diagram
VFD model
Outline dimensions
(mm)
Mount
dimensions
(mm)
Hole
diameter
(mm)
Screw
Net
weight
(kg)
Gross
weight
(kg)
W1
H1
D1
W2
H2
160kW–220kW
500
870
360
180
850
11
M10
85
110
