Goodrive350-19 series VFD Extension cards
-452-

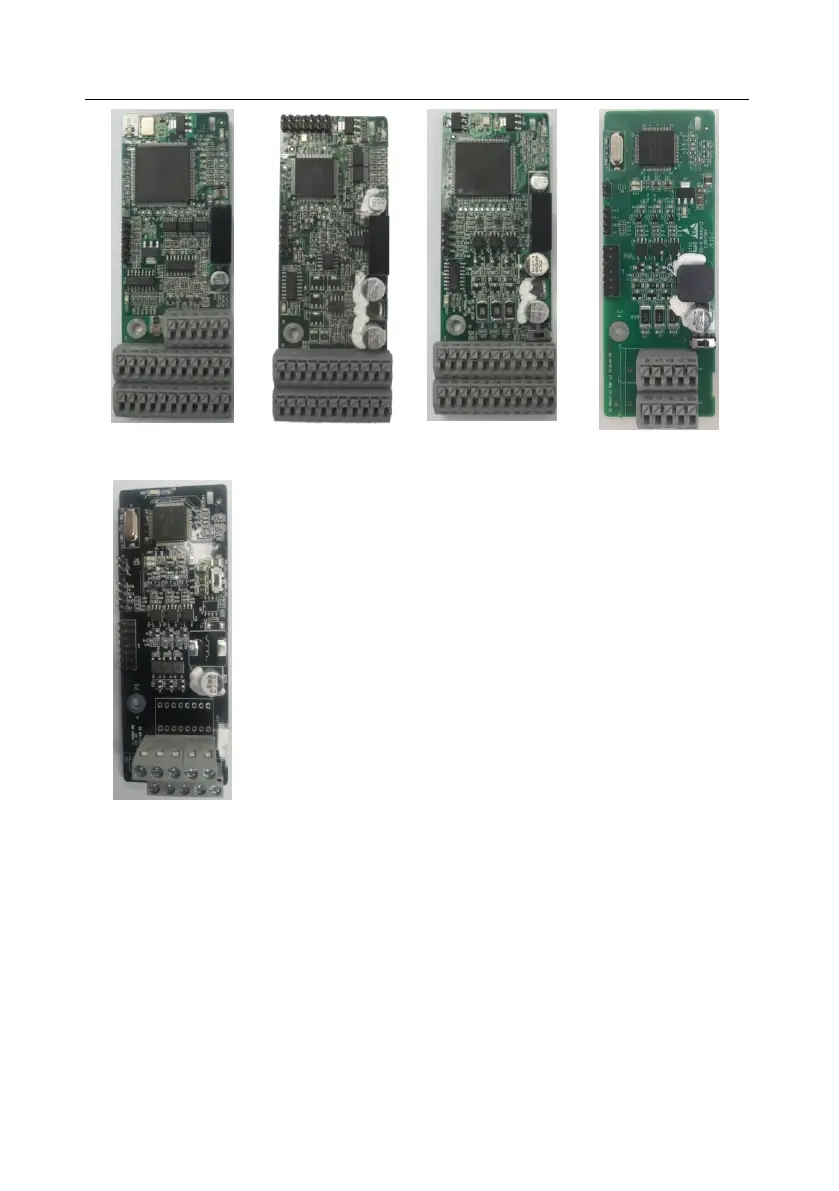

UVW incremental
PG card
EC-PG503-05
Resolver PG card
EC-PG504-00
Multifunction
incremental PG card
EC-PG505-12
Simplified incremental
PG card
EC-PG507-12
24V simplified
incremental PG card
EC-PG507-24
A.2 Dimensions and installation
All of the extension cards are the same in dimensions (108 mm × 39 mm) and can be installed in the
same way.
Conform to the following rule when installing or removing an extension card:
1. Ensure that no power is applied before installing the extension card.
2. The extension card can be installed into any of the card slots SLOT1, SLOT2, and SLOT3.
3. The 5.5 kW and lower VFD models can be configured with two extension cards at the same time,
