5.4.4 Points for attention

 If you only want to check whether the VFD runs properly, set P90.00=0(Common mode).

 If you perform empty-load commissioning, set P90.00 to 4 (Tower crane rotating function macro),

and set P11.08 to 0x000 to disable underload protection.

 During onsite commissioning, if the VFD terminal signal forward/reverse running command is

inconsistent with the load running direction, adjust any two phase sequences of VFD output

terminals U, V, and W.

 This macro can meet the requirements of most tower crane rotating application cases, and the

performance parameters have been optimized and do not need to be adjusted in most cases. If

an exception occurs, see the function parameter chapter for adjustment or contact the technical

support.

5.5 Commissioning the conical motor function

5.5.1 Wiring

(+) PB

GD350-19 VFD

HDIA

VFD fault

output

RO1A

RO1B

RO1C

FWD

REV

Multi-step setting terminal 1

Coasting to stop

Fault reset

Braking resistor

COM

+24V

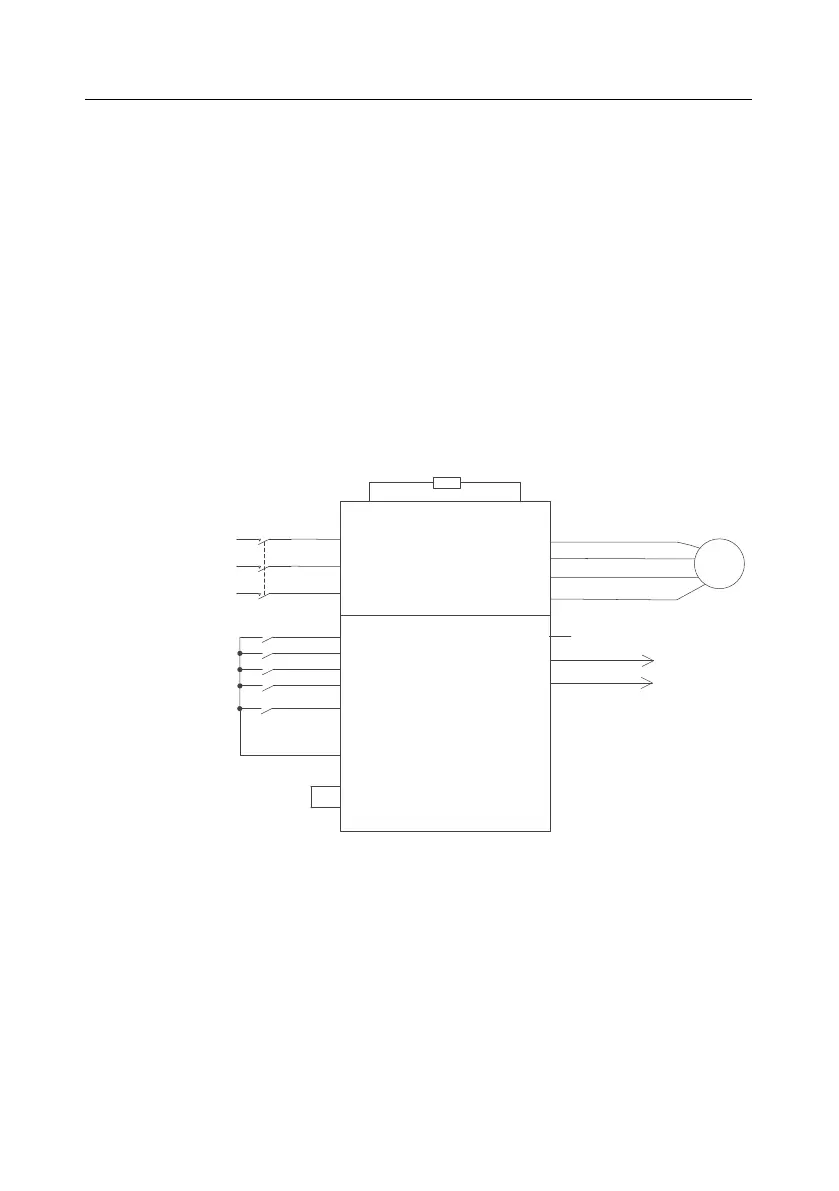

Figure 5.5 Wiring for the conical motor

Note: If the wiring is performed according to Figure 5.5, most VFD parameters need no adjustment. If

the onsite function terminals are inconsistent with the terminals shown in the figure, adjust the input

and output terminal functions according to the actual wiring after selecting the conical motor

application macro.

5.5.2 Commissioning procedure

1. Check the wiring and ensure the wiring is proper.

2. Set P00.18=1.

3. Set motor nameplate parameters in P02.
