INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Operating
- 107 -
Parameters displayed in stopped
state
Parameters displayed in running state Information displayed in faulty state
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG
PRG
ESC
DATA
ENT
SHIFT
QUICK
JOG
RUN
STOP
RST
RUN
STOP
RST
RUN
STOP
RST

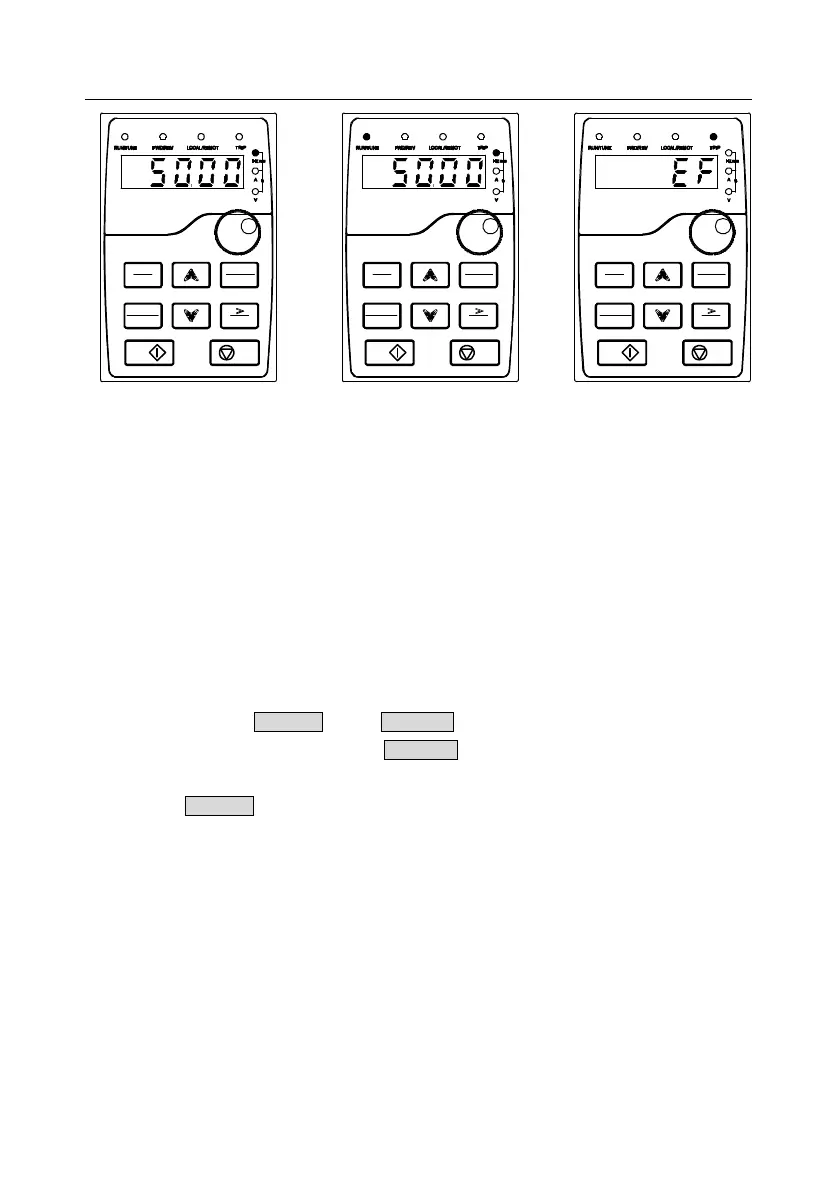

Figure 6.2 Keypad display
6.4 Operations on keypad
You can perform various operations on the rectifier by using a keypad. For details about the structure
of the function codes, see the function code list.
6.4.1 Modifying function codes
The VFD has three levels menu, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the
third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the control
panel, and then return to the second-level menu with shifting to the next function code automatically;
while pressing PRG/ESC will directly return to the second-level menu without saving the parameters,
and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation
records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
