INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Installation instruction
‐21‐

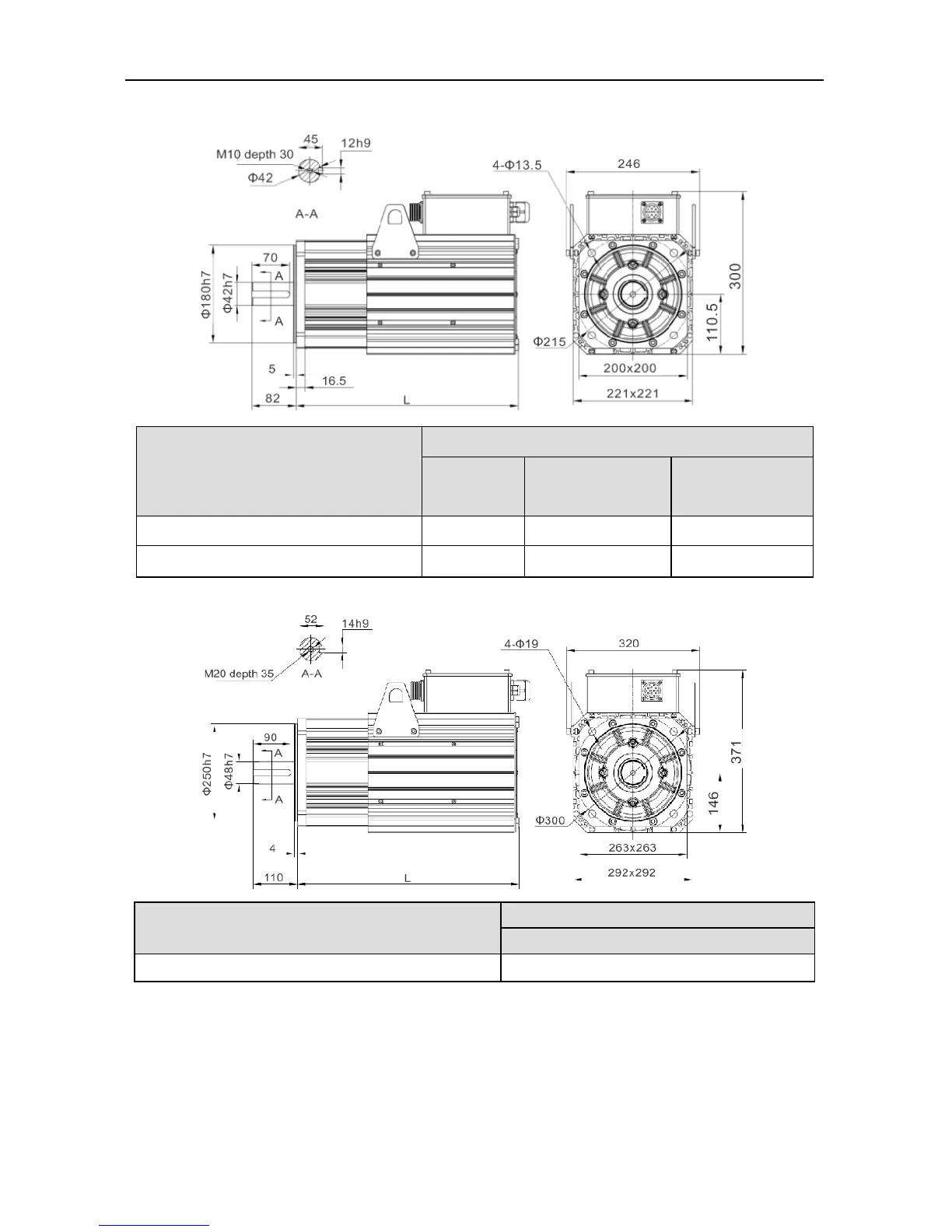

2.3.7 Outline and installation dimension for 200 bases (mm)
Motor model (2500-PPR/multi-turn
absolute value/rotary transformer)
L(mm)
W/o brake
Permanent magnet
brake
Electromagnetic
brake
SV-MH20-011B-4-□A□ 411 547 547
SV-MH20-015B-4-□A□ 446 582 582
2.3.8 Outline and installation dimension for 263 bases (mm)
Motor model (2500-PPR/multi-turn absolute
value/rotary transformer)
L(mm)
W/o brake
SV-SH26-022B-4-□A□ 537
2.4 Motor installation
◆ Do not pull the motor leads or output shaft during fetching and moving the motor;
◆ Do not beat or hammer during the motor assembly to avoid damage to the encoder or shafts;
◆ Please wipe the slushing oil on the motor shaft before using.
