INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Wiring instruction
‐32‐

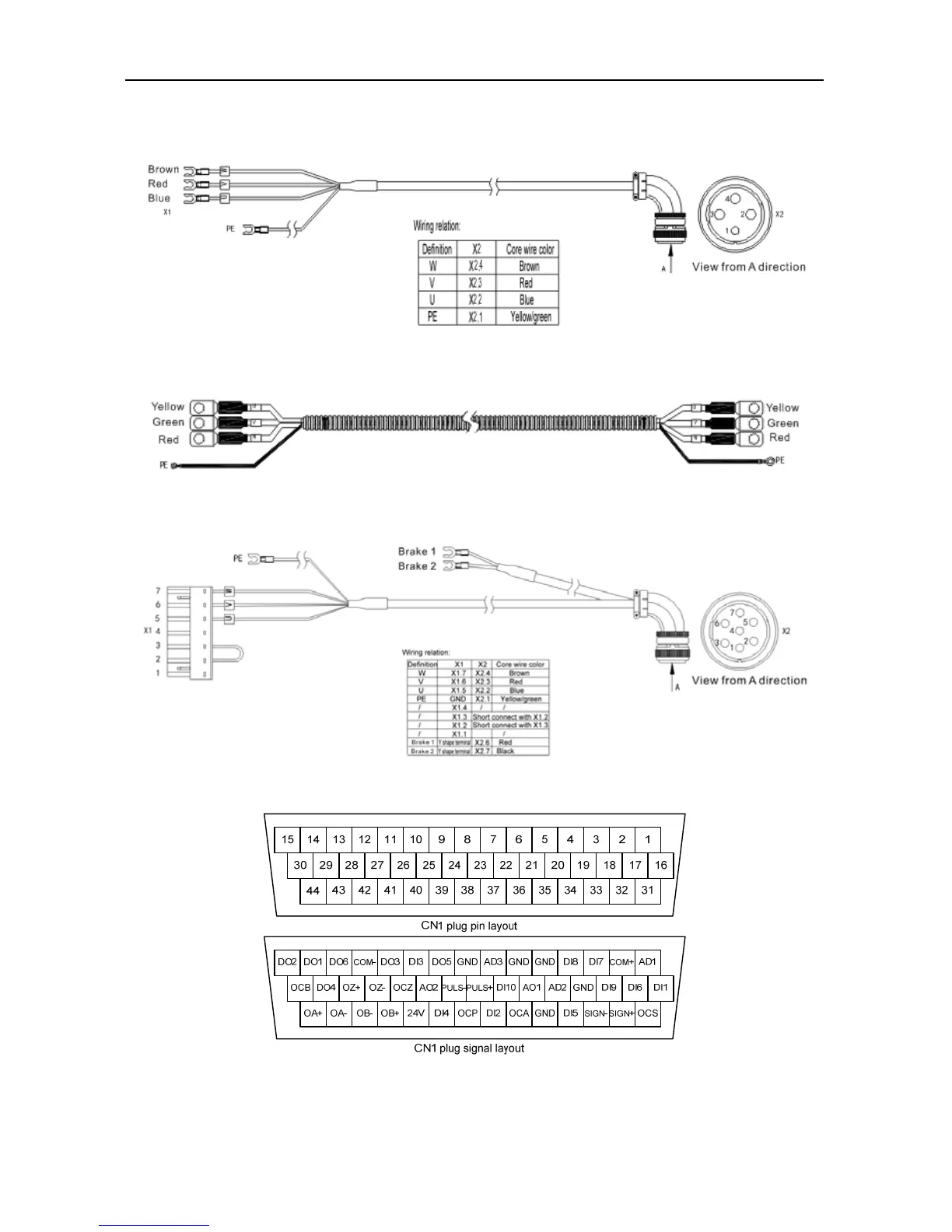

3.3.4 130, 180-base 2kW~4.4kW (220V) and 4.4kW~7.5kW (380V) motor power cable (except for
130-base 17-bit single-turn with brake)
3.3.5 200-base 11kW~22kW (380V) motor power cable
3.3.6 130-base 17-bit single-turn with brake
3.4 Control I/O-CN1 terminal layout
Remark: This is the interface definition for standard model, refer to chapter 4 for terminal
function and application. See corresponding operation guide for EtherCAT bus type.
