After positio ning the tool (1) 99360091 under the filter,
unscrew and remove the filters (3 and 4) with the aid of a 27
mm wrench.
!
Handle all parts extremely carefully. Never get your
hands or fingers between pieces. Wear the required
safety clothing su ch as goggles, gloves, safety shoes
and helmet.
To ch ange the fu el filters, proceed as illu strated here.
Before disassembling, place under the filter a basin
of suitable capacity.
Improper waste disposal is a threat for the
environment. Potentially hazardous waste used on
IVECO vehicles includes lubricants, fuels, coolants,
filters and batteries.
— Use watertight containers when draining off
fluids. Never use containers for foodstuffs or
beverages that can lead people to drink from
them.
— Never throw waste on the ground, on tips or
in water c ou rses.
— Obtain information on the appropriate ways
of recyc lin g or dispo sin g of waste from the
local authorities or c o llect ion centres.
Replace the filters with new parts, hand screw and tighten for
another 3/4 turn.

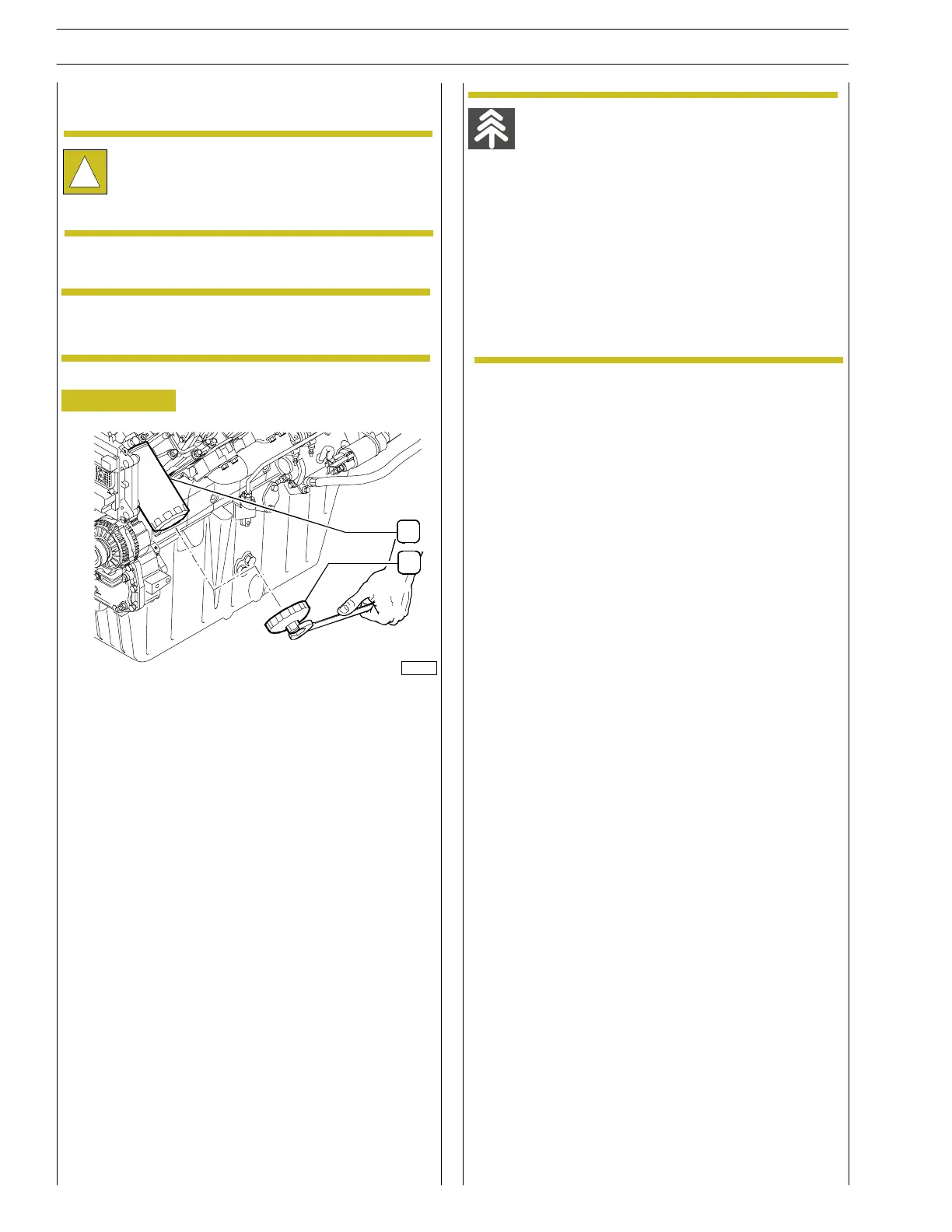

Figure 18
1
2
REPLACING DIESEL FILTER(S)
For applications DRAGON and GRIFFON
NOTE
103181
92
SECTION 3 - INDUSTRIAL APPLICATION
VECTOR 8 ENGINES
Base - April 2006 Print P2D32V001E
