− 4 −

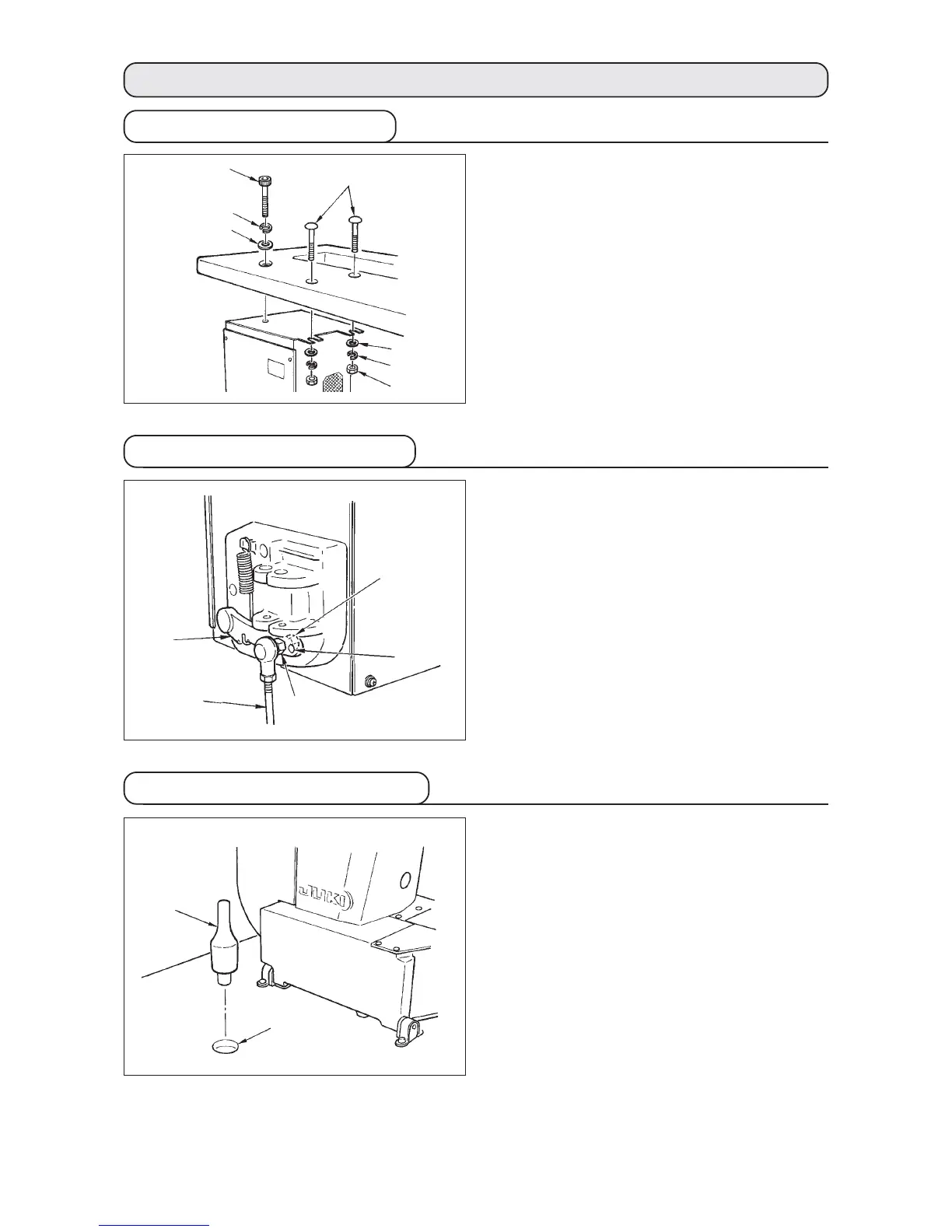

[3] INSTALLATION
1. Installing the electrical box
Install the electrical box on the underside of the table
at the location illustrated using round-head bolt q, plain
washer w, spring washer e and nut r supplied with
the machine, and using bolt having hexagonal
indentation on the head t, spring washer y and plain
washer u supplied with the machine.
q
w
t
r
e
y
u
q
w
e
A
B
2. Attaching the connecting rod
1) Fix connecting rod q to installing hole B of pedal
lever w with nut e.
2) when connecting rod q is installed in installing hole
A, the depressing stroke of the pedal is increased.
3. Installing the head support rod
Drive head support rod q in hole w in the machine
table.
q
w
