JUKI LK-1900A User Manual

− 9 −
CN38 Gray

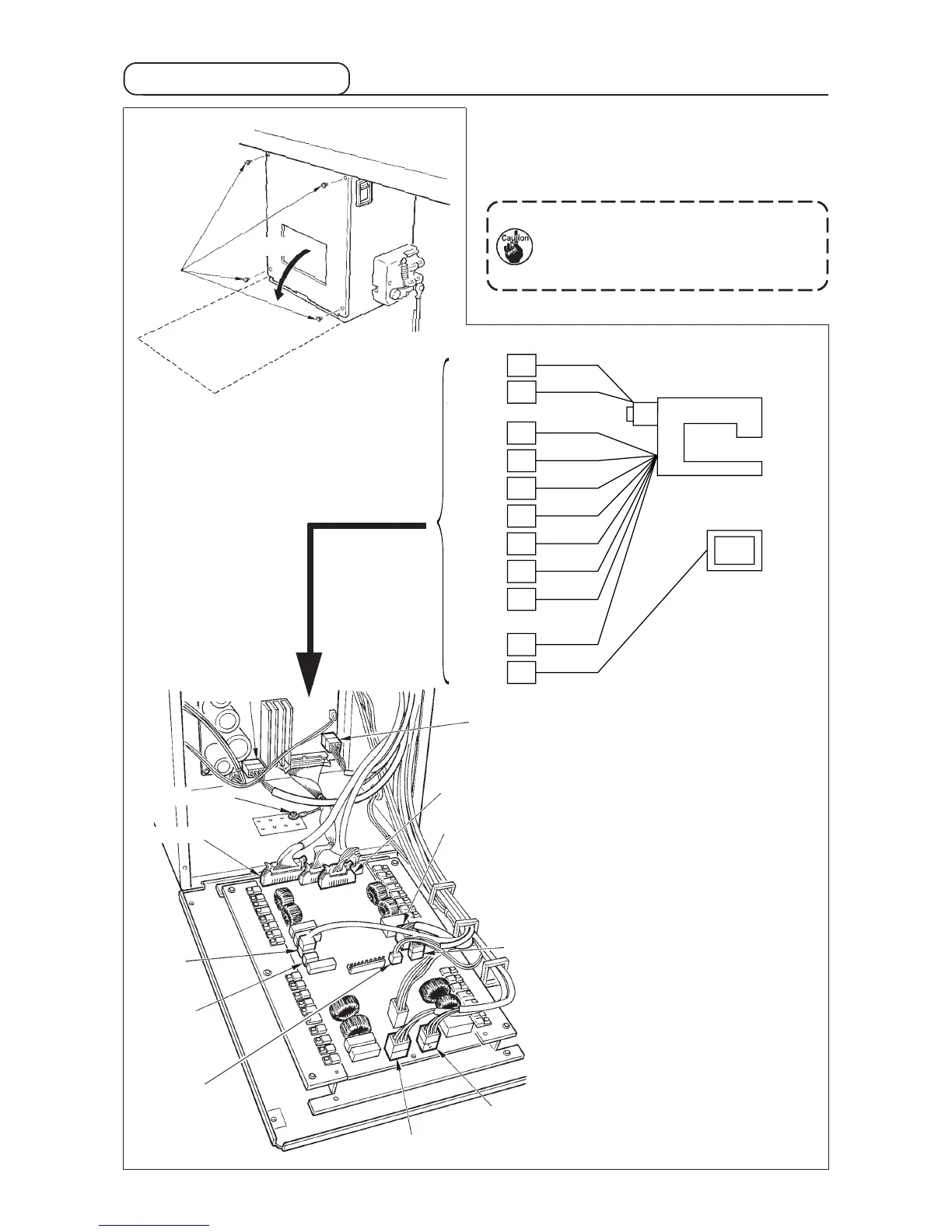

10. Connecting the cord
Remove four screws E fixing the rear cover of the
electrical box. When opening the rear cover, pressing
it with your hands, slowly open it by approximately 90˚
until it stops as illustrated.
Be sure to lend your hand to the rear cover
in order not to let the rear cover fall. In
addition, do not apply force to the rear
cover opened.
q
CN16
CN14
CN39
CN42
CN43
CN44
CN45
CN40
CN47
CN38
CN34
4P
9P
2P
6P
6P
6P
6P
4P
2P
16P
26P
White
Yellow
White
Blue
Red
Yellow
White
White
Gray
Gray
(LK-1901A)
Sewing machine head
Operation panel
CN14 White
CN16 White
Earth cord
CN34 Gray
CN45
Yellow
CN47
White
CN42 White
CN43 Blue
CN39 Yellow
CN44 Red
CN40
White
Slowly
White

JUKI LK-1900A Specifications

General

Stitch Type	Lock Stitch
Power Consumption	550 W
Thread Take-up	Rotary type
Lubrication	Automatic
Needle Type	DP×5
Presser Foot Lift	17 mm
Needle Size Range	#11 - #18
Presser Foot Lift Type	Automatic / Manual
Bobbin	Rotating hook
Motor	Servo motor
