4. Installing and connecting the power switch
(1) Installing the power switch
Fix power switch 笊 under the machine table with wood
screws 笆 .
Fix the cable with staples 笳 supplied with the machine
as accessories in accordance with the forms of use.
* Five staples 笳 including the staple for fixing the
operation panel cable are supplied as accessories.
(2) Connecting the power source cord
Voltage specifications at the time of delivery from the factry are indicated on the voltage indication seal.
Connect the cord in accordance with the specifications.
1. Never use under the wrong voltage
and phase.
2. When changing the voltage, refer to
the item of "Changing the voltage
of 100 / 200V" (P.36).
Voltage indication seal (3-phase type only)
Voltage caution seal
Rating label
Table
Brown
Brown
Brown
Light blue
Light blue
Light
blue
Green/Yellow
Green/
Yellow
Control box
Green/Yellow
Plug
Power source cord
Power switch
GND
AC200 V
AC220 V
AC230 V
AC240 V

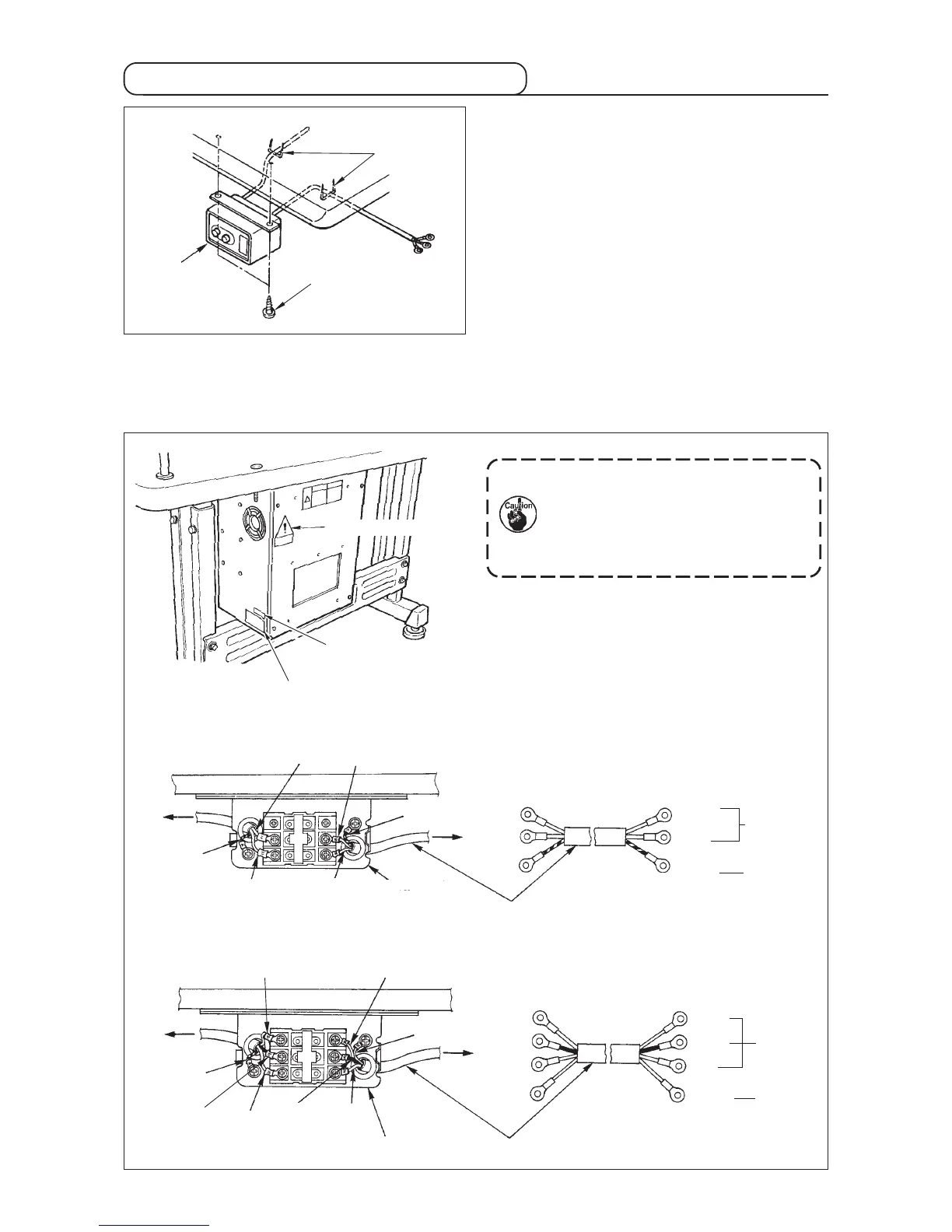

• Connecting single phase 200V, 220V, 230V and 240V
Table
Red
Black
Green/Yellow
White
Control box
Power source cord
Plug
Power switch
GND
AC200 V
AC220 V
AC240 V
• Connecting three phase 200V, 220V and 240V
Green/Yellow
Red
White
Black
Green/
Yellow
Red
Black
White
笊
笆
笳
To Next Page
