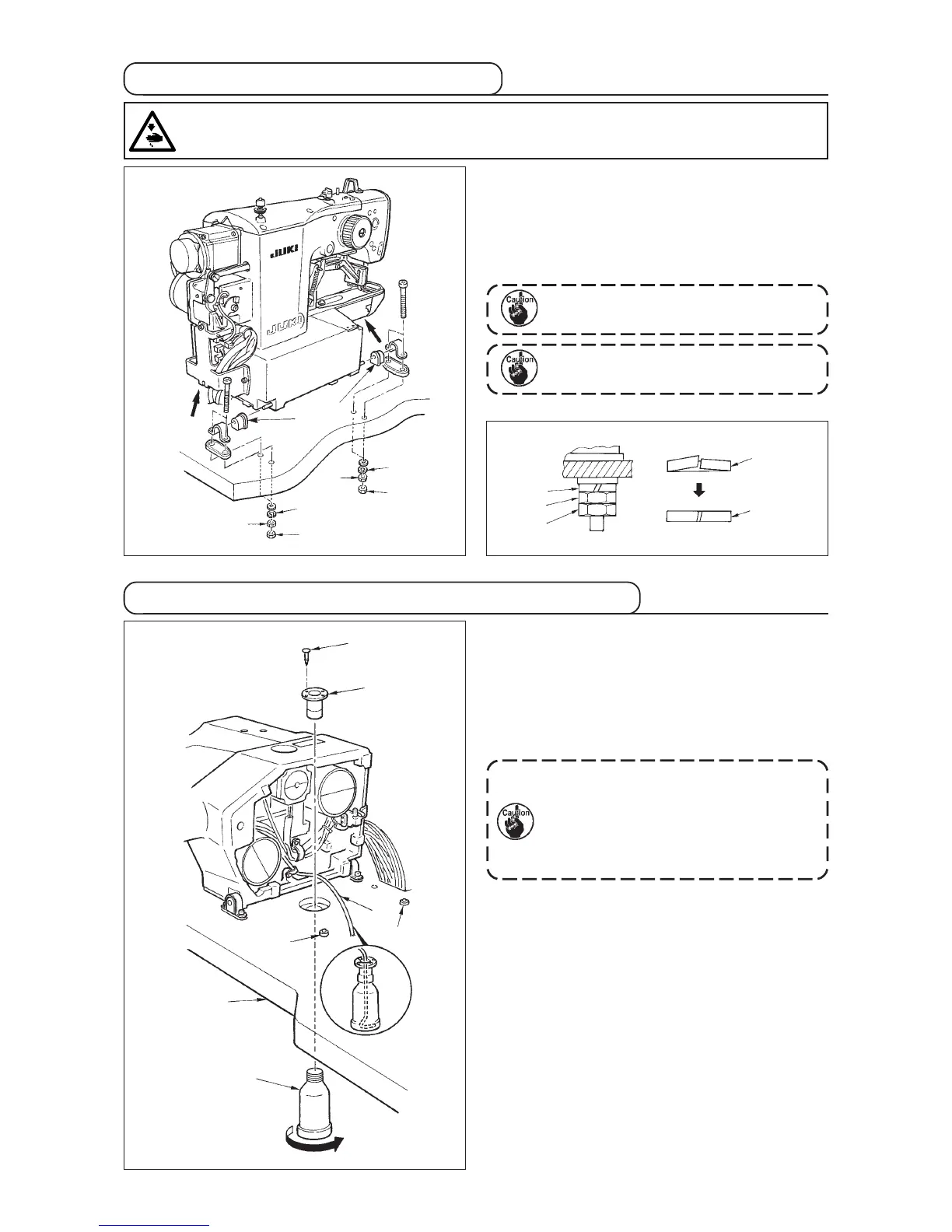

JUKI LK-1900A User Manual

− 6 −
1) Fit hinge rubber q to the hinge shaft ,and fix the
sewing machine main unit.
2) When tightening nut e to hinge rubber q, tighten
nut e until spring washer w becomes as B in the
illustration, and fix it with nut r.
If tightening hinge rubber q excessively, it
will not work properly. So, be careful.
Hold section A when moving the sewing
machine.
5. Installation of the sewing machine head
A
A
q
q
WARNING :
To prevent possible accidents caused by the full of the sewing machine, perform the work by two persons
or more when the machine is moved.
1) Fix drain receiver w in the installing hole of table
q with four setscrews e.
2) Screw in drain bin r to drain receiver w.
3) Insert sewing machine drain pipe t into drain bin
r.
4) Insert head support rubber y into table q.
1. Insert drain pipe t until it will go no
further so that it does not come off
drain bin r when tilting the machine
head.
2. Remove the tape fixing drain pipe t.
q
w
t
r
e
6. Installing the drain receiver and the head support rubber
w
e
r
w
e
r
w
e
r
w
w
y
y
A
B
