Kenwood TS-990S Service Manual

TS-990S
240
OPTIONAL ACCESSORIES
ARCP-990 (Radio Control Program)
ARHP-990 (Radio Host Program)
ARCP-990 Radio Control Program and ARHP-990 Radio
Host Program can be downloaded from the following web
site.
http://www.kenwood.com/i/products/info/amateur/software_download.html
SP-990 (External Speaker)
■
Specifi cations
Operating Temperature Range
....................................... –10°C to 50°C (14°F to 122°F)
Maximum Input .............................................................. 5W
Input Impedance ................................................... 8

±15%
Filter Cutoff Frequency
HIGH 1 ..................................................... 2.4kHz, –3dB
HIGH 2 ..................................................... 1.0kHz, –3dB
HIGH 1+2 .................................................. 700Hz, –3dB
LOW 1 ....................................................... 200Hz, –3dB
LOW 2 ....................................................... 400Hz, –3dB
LOW 1+2 ................................................... 600Hz, –3dB
Dimensions (Width x Height x Depth)
..................... 200 x 165 x 300 mm (7.87 x 6.5 x 11.8 in)
(Exclusive of projections)
Weight ............................................ Approx. 2.8 kg (6.2 lbs)
■

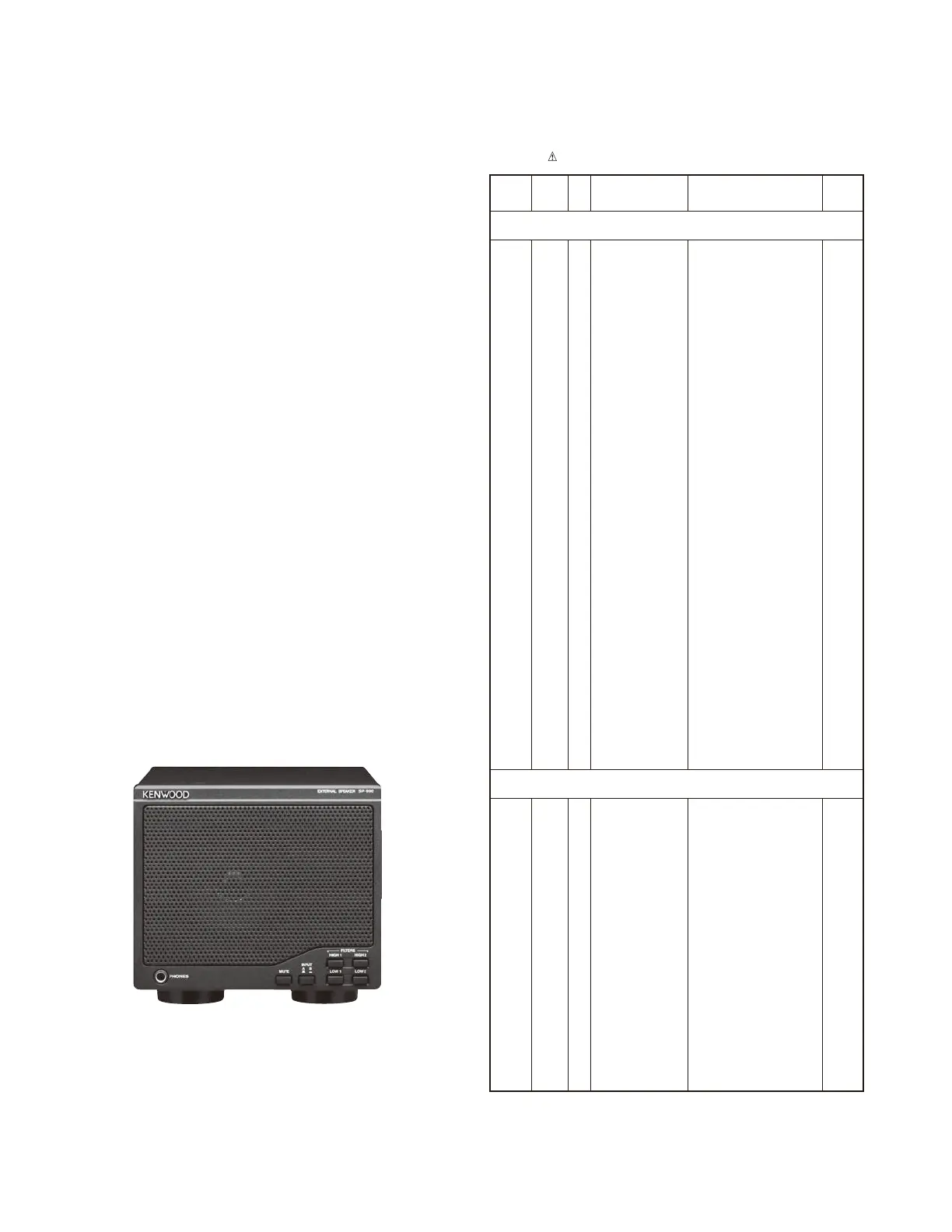

External View
Ref. No. Address
New
parts
Parts No. Description Destination
✽
A01-2232-02
METALLIC CABINET(UPPER)
✽
A01-2233-02
METALLIC CABINET(LOWER)
✽
A62-1192-13
PANEL
✽
B04-0421-03
PUNCHING METAL
B42-7733-04
STICKER
✽
B43-0336-04
BADGE
✽
B62-2456-00
INSTRUCTION MANUAL
✽
B72-2769-04
MODEL NAME-PLATE
✽
E30-7753-05
CORD WITH PLUG ACCESSORY
✽
G10-1850-04
FIBROUS SHEET(PANEL)
✽
G11-4636-04
RUBBER SHEET(REAR GAP)
✽
H12-4328-12
PACKING FIXTURE
✽
H12-4344-12
PACKING FIXTURE
H25-2352-04
PROTECTION BAG (250/350/0.07)
✽
H52-2504-02
ITEM CARTON CASE
✽
J02-1310-02
FOOT(FRONT BASE)
✽
J02-1311-02
FOOT(FRONT LIFT)
✽
J02-1312-03
FOOT(REAR)
✽
J21-8644-04
MOUNTING HARDWARE
J61-0307-05
BAND
✽
K24-2010-04
PUSH KNOB(FILTER KNOB)
N33-3006-43
OVAL HEAD MACHINE SCREW(CABINET)
N35-4006-43
BINDING HEAD MACHINE SCREW(FOOT)
✽
N83-3006-48
PAN HEAD TAPTITE SCREW(PCB,PHONES)
✽
N87-4006-43
BRAZIER HEAD TAPTITE SCREW(SPEAKER)
✽
T07-0795-05
SPEAKER
C1
✽
CD04AU1V101M
NP-ELEC 100UF 35WV
C2
✽
CD04AU1E470M
NP-ELEC 47UF 25WV
J1 E11-0705-15
PHONE JACK(9P)
J2 ,3 E11-0425-05
3.5D PHONE JACK(3P)
J4 E13-0166-25
PIN JACK
W1 -3
✽
E37-1635-05
LEAD WIRE WITH CONNECTOR
L1
✽
L33-3004-05
CHOKE COIL
L2
✽
L33-3005-05
CHOKE COIL
R1 ,2 RD14DB2H101J
SMALL-RD 100 J 1/2W
R3 ,4 RD14DB2H560J
SMALL-RD 56 J 1/2W
R5 RS14DB3D8R2J
FL-PROOF RS 8.2 J 2W
R6 RD14DB2H101J
SMALL-RD 100 J 1/2W
R7 -9 RD14DB2H102J
SMALL-RD 1.0K J 1/2W
S1 -6
✽
S68-0431-05
PUSH SWITCH
■
Parts List
✽
New Parts.
indicates safety critical components.
SP-990
SWITCH UNIT (X41-3800-00)

Kenwood TS-990S Specifications
