Kenwood TS-990S Service Manual

TS-990S
3

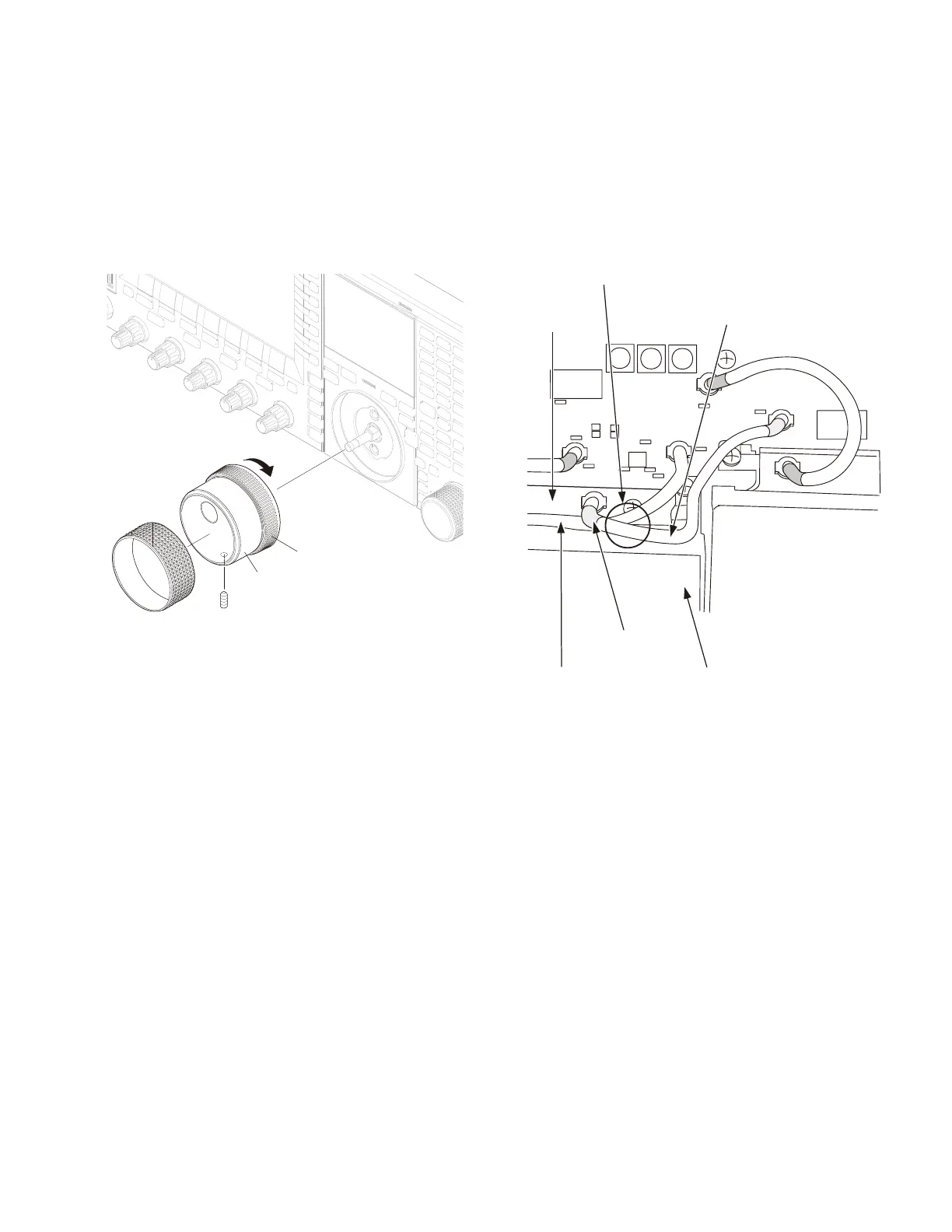

DISASSEMBLY FOR REPAIR
Cautions for reassembling the main knob
ASSY
Rotate the dial portion of the main knob ASSY clockwise
to its maximum position (torque OFF), then attach the main
knob ASSY to the panel.
Dial portion of
the main knob ASSY
Main knob ASSY
Forming the two coaxial cables
(E37-1570-05, E37-1571-15)
Forming the two coaxial cables (E37-1570-05, E37-1571-
15) as shown in the fi gure.
Push the coaxial cable
to the shielding plate side.
Forming so that the coaxial cable (E37-1570-05)
passes above the coaxial cable (E37-1571-15).
Coaxial cable
(E37-1570-05)
Coaxial cable
(E37-1571-15)
Preselector unit
(X42-343 B/2)
Shielding plate
