Standard tightening torques
8.4.13 Standard torques for pipe clamps according to DIN 3015

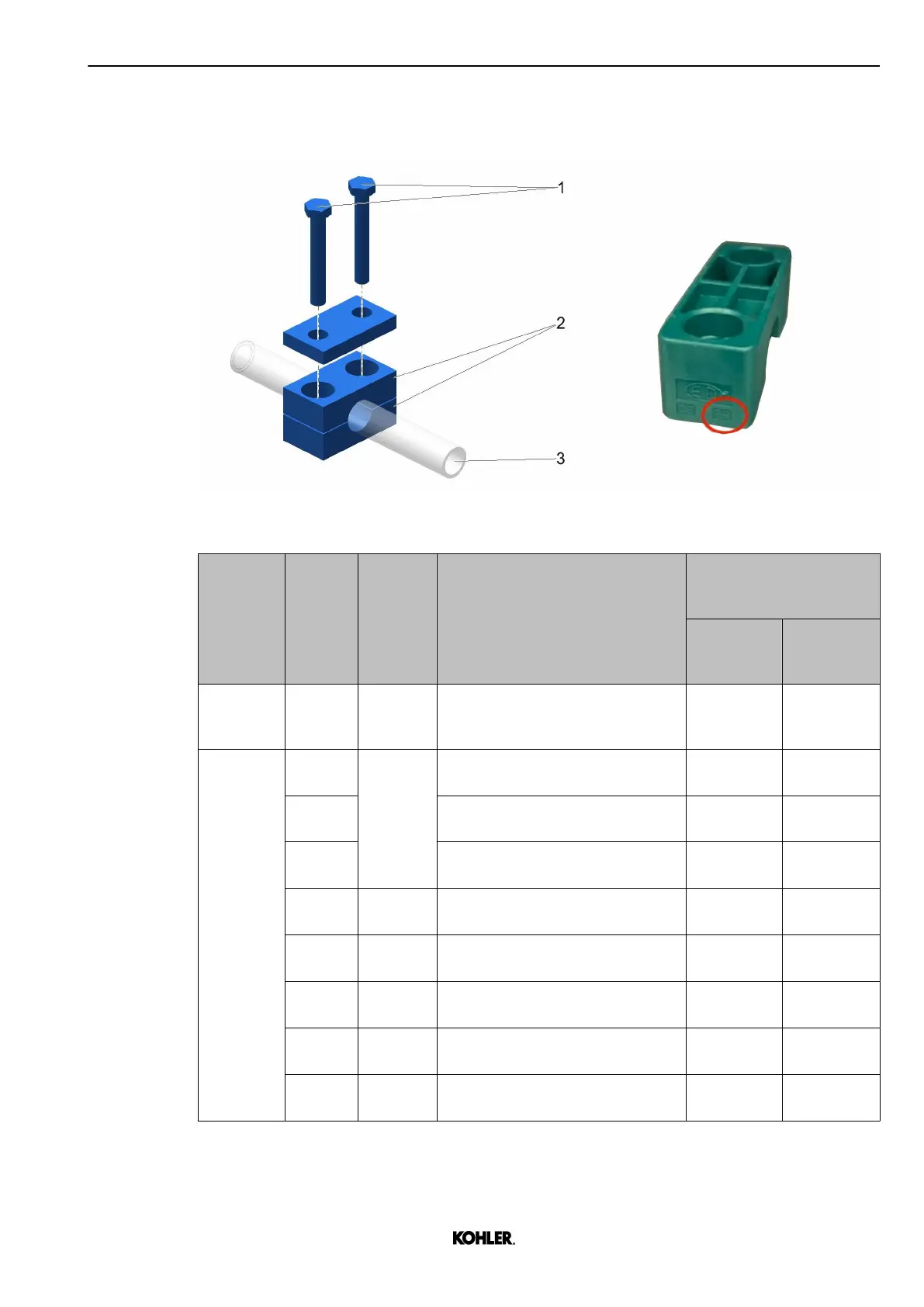

Fig. 140: Pipe clamps
Series
Dimen‐
sion
Dimen‐
sion of
screw 1
External diameter of pipe 3
Tightening torque
according to material
marking of clamp 2
PP
(polypropy‐
lene)
PA
(polyamid)
Light
(DIN
3015-1)
All M6 All 8 Nm
6 ft-lb
10 Nm
7 ft-lb
Heavy
(DIN
3015-2)
1
M10
6 mm (0.24 in)-18 mm (0.71 in) 12 Nm
9 ft-lb
20 Nm
15 ft-lb
2 19 mm (0.75 in)-30 mm (1.18 in) 12 Nm
9 ft-lb
20 Nm
15 ft-lb
3 30 mm (1.18 in)-42 mm (1.65 in) 15 Nm
11 ft-lb
25 Nm
18 ft-lb
4 M12 38 mm (1.5 in)-66 mm (2.6 in) 30 Nm
22 ft-lb
40 Nm
30 ft-lb
5 M16 70 mm (2.76 in)-90 mm (3.54 in) 45 Nm
33 ft-lb
55 Nm
41 ft-lb
6 M20 90 mm (3.54 in)-127 mm (5 in) 80 Nm
59 ft-lb
150 Nm
111 ft-lb
7 M24 127 mm (5 in)-168 mm (6.61 in) 110 Nm
81 ft-lb
200 Nm
148 ft-lb
8 M30 168 mm (6.61 in)-220 mm (8.66 in) 180 Nm
133 ft-lb
350 Nm
258 ft-lb
Tab. 68: Tightening torques for pipe clamps according to DIN 3015
