Kohler KD62V12 Operation And Maintenance Manual

Product description
Technical description
– Injectors
The individual functions and error messages are described in the instructions manual of the
manufacturer’s machinery.
1.1.2 Conventions
Cylinder designation, direction of rotation, firing sequence
In this manual, all locations and directions shown on the diesel engine are compliant with ISO
1204 in its English version.
Cylinder A1 and cylinder B1 are located on the driving end of the diesel engine. Direction of rota‐
tion is counterclockwise, as seen from the driving end of the diesel engine.

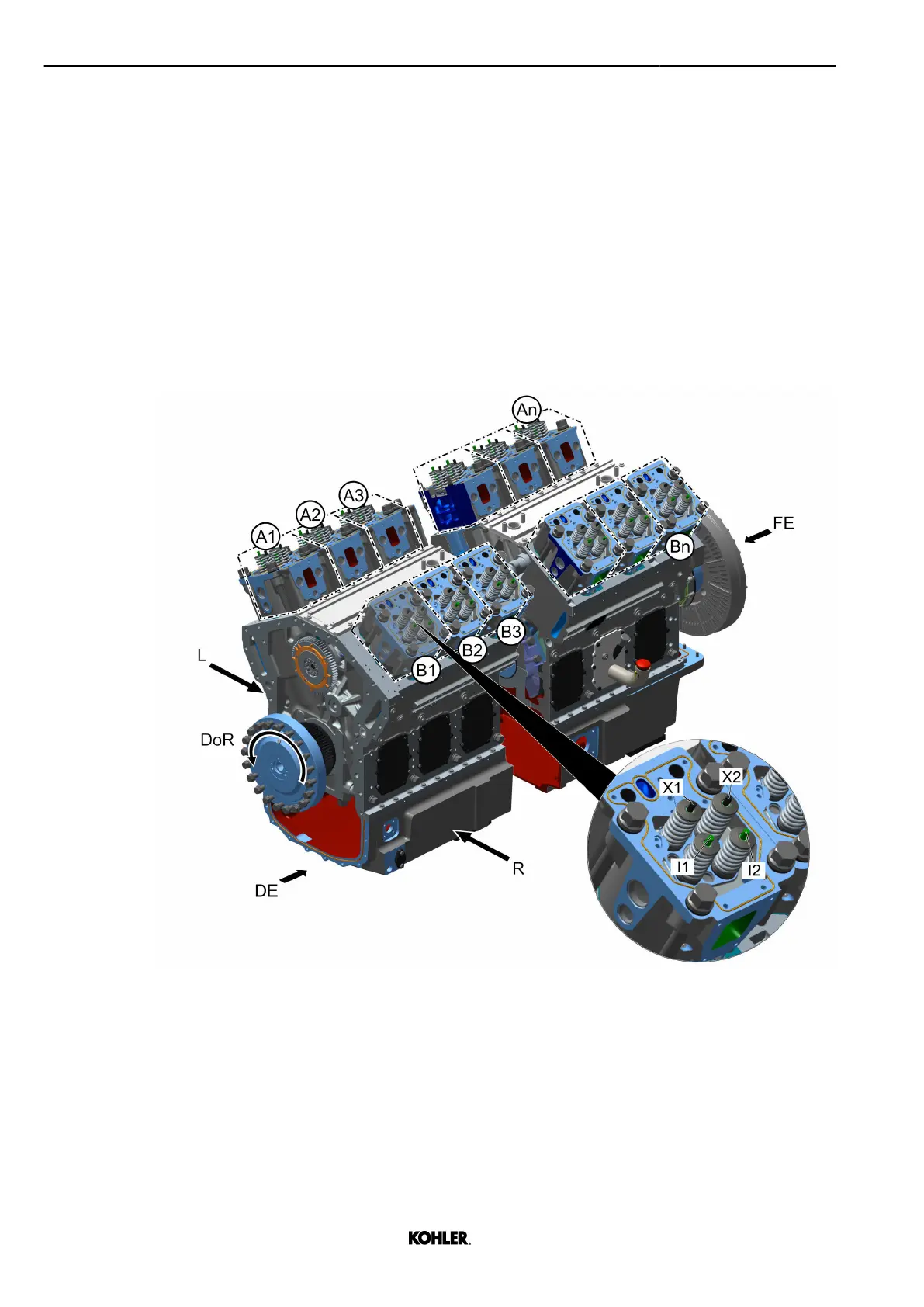

Fig. 5: Cylinder designation - direction of rotation according to ISO 1204
A1-An
Series of cylinders – Bank A X Exhaust valves
B1-Bn Series of cylinders – Bank B I Intake valves
DE Driving end L Left engine side
FE Free end R Right engine side
DoR Direction of rotation
Firing sequence: A1-B2-A2-B4-A4-B6-A6-B5-A5-B3-A3- B1
22
© 2022 by Kohler Co. All rights reserved.
KD62V12 33521030301_8_1 EN_US 2022-09
