Maintenance
Generic maintenance activities
5.8.2 Checking drive belt — SL109

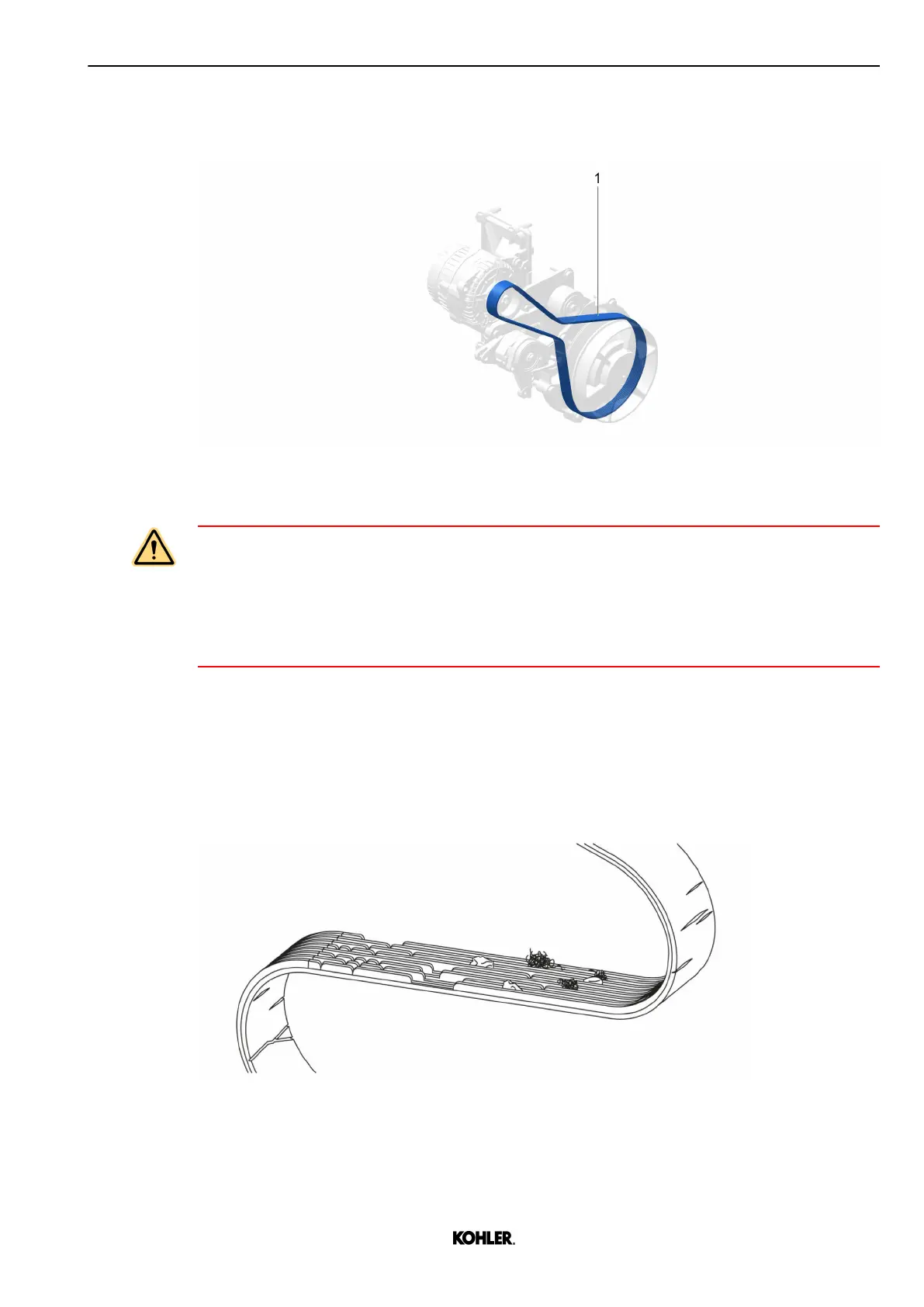

Fig. 49: Drive belt alternator
1
Drive belt
WARNING
Crushing hazards! During the assembly of auxiliaries, fingers can be crushed between tensioner
and bracket.
Could cause serious injury or death.
u Wear proper personal protective equipment.
u Use assembly and lifting devices.
Examples of damage to the drive belt are the following:
– Rip breaks
– Rubber nodules in the belt base
– Deposits of dirt and / or stones
– Ribs detached from belt base
– Traverse cracks on the back
– Traverse cracks in several ribs
Fig. 50: Damage to the drive belt
The belt attachment is self-tensioning and maintenance-free.
The belt drive is located at the engine damper side.
