00 Index and foreword SEN03766-02
PC130-8
21

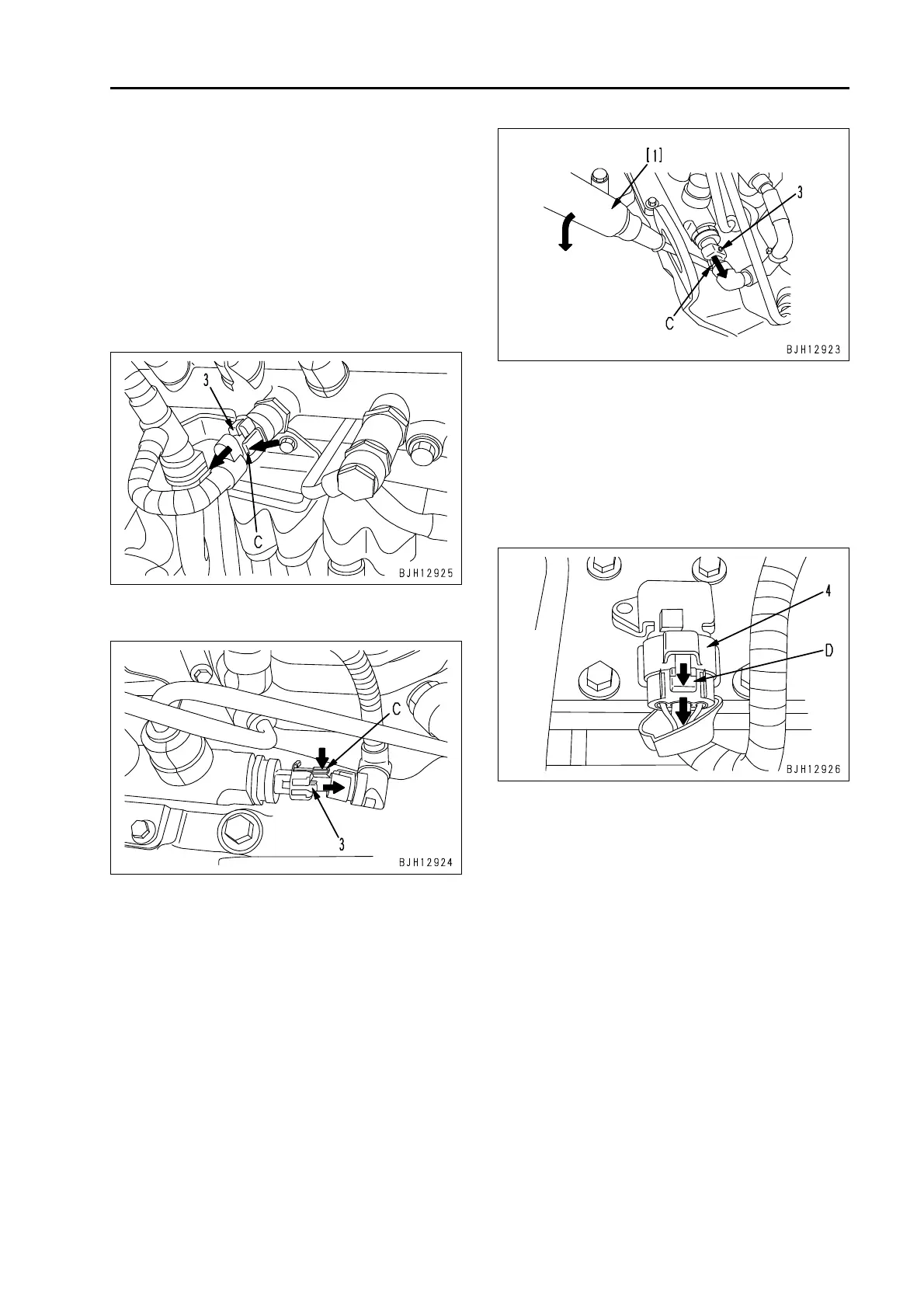

3. Push lock type
q
95, 107, 114 engines
Example)
Fuel pressure sensor in common rail
(B
OSCH-03)
Disc
onnect connector (3) according to the fol-
lowing procedure.
1) While pressing lock (C), pull out connector
(
3
) in the direction of the arrow.
q
114 engine
q
107 engine
a If the lock is on the underside, use
flat
-head screwdriver [1] since you
cannot insert your fingers.
2) While pressing up lock (C) of the connec-
tor with flat-head screwdriver [1], pull out
co
nne
ctor (3) in the direction of the arrow.
q
107, 114 engines
Example)
Intake air pressure/temperature sensor in
int
ake manifold
(SUMITOMO-04)
3)
While pressing lock (D), pull out connector
(4)
in the direction of the arrow.
