INTRODUCTION FOREWORD
1-8
INTRODUCTION 1
This Komatsu machine is designed to be used mainly for the following work:
q Digging work
q Leveling work
q Ditching work
q Loading work
q Demolition work
See the section “RECOMMENDED APPLICATIONS (3-162)“ for further details.

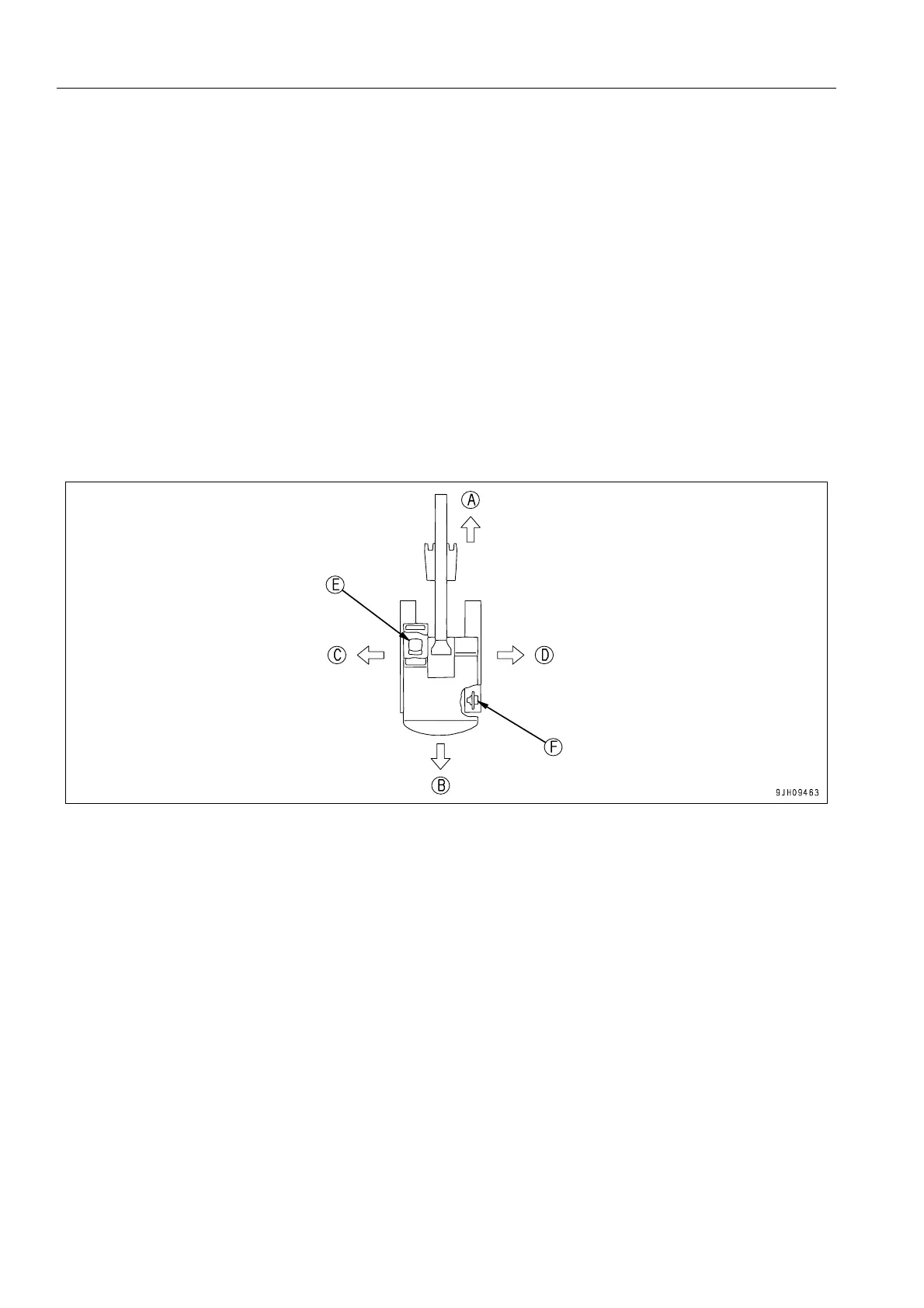

DIRECTIONS OF MACHINE 1
In this manual, the terms front, rear, left, and right refer to the travel direction as seen from the operator's seat
when the operator's seat is facing the front and the sprocket is at the rear of the machine.
(A) Front (E) Operator's seat
(B) Rear (F) Sprocket
(C) Left
(D) Right
